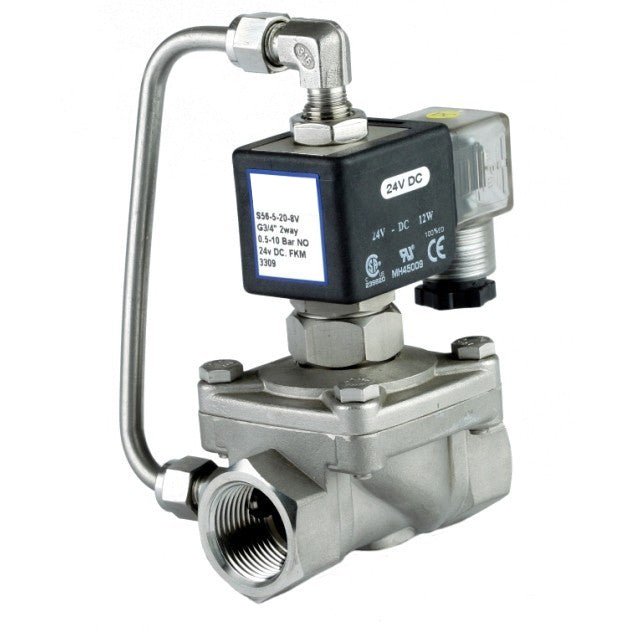

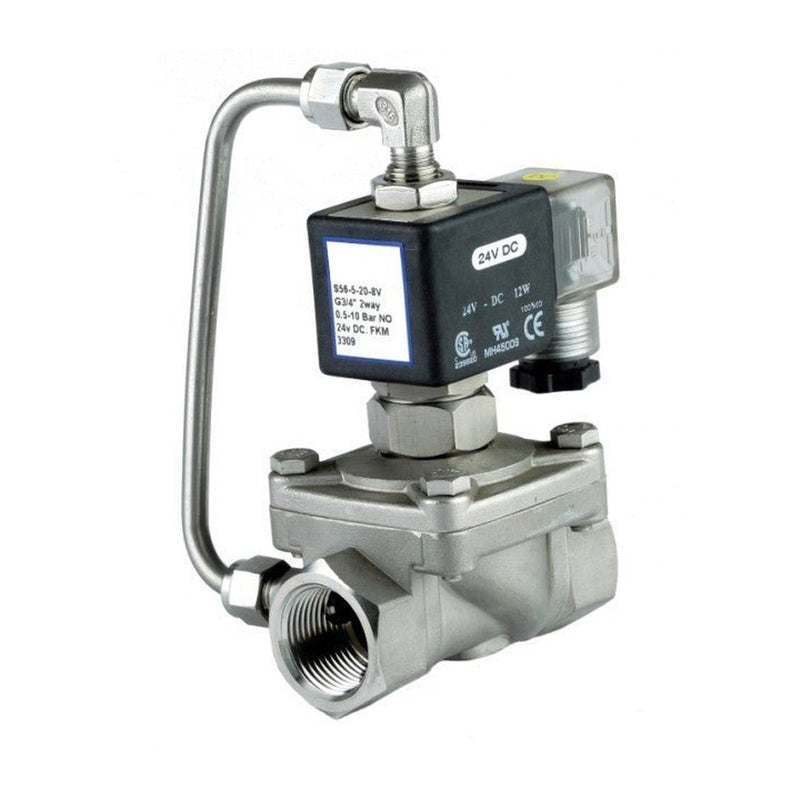

GO Solenoid Valve 1/4" to 2" S56 316 Stainless Petrochemical Zero Differential Normally Open Range

SKU: S56-2-3

$358

GO Solenoid Valve 1/4" to 2" S56 316 Stainless Petrochemical Zero Differential Normally Open Range

A normally open valve with 316 Stainless Steel body and seat, 304 stainless steel operator. Comes with Viton seals (contact us for silicone, Neoprene or Nitrile). Liquids to 40 cst viscosity. Standard with coil and weatherproof IP65 LED illuminated plug. Typical applications include; corrosive environments, petrochemical and general industry.
  • Size 3/8" to 2" BSP
  • Function Normally Open (power to close)
  • Valve Operation Servo Assisted
  • Body 316 Stainless Steel
  • Seat FKM
  • Pressure Range 0.5 to 10 BAR
  • Media Petrochemical

316 S.S 2 way 2 position normally open differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, FKM seat.0.5-10 BAR pressure range, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Coil Specifications
S56-4-15-*V 1/2 15 4.5 0.5 to 10 BAR -10°C to 100°C SC-C1
15 Volt Amps
12 Watts
Class H Insulation
100% ED
S56-5-20-*V 3/4 20 9.3 0.5 to 10 BAR -10°C to 100°C
S56-6-25-*V 1 25 13.2 0.5 to 10 BAR -10°C to 100°C
S56-7-35-*V 1 ¼ 35 26 0.5 to 10 BAR -10°C to 100°C
S56-8-35-*V 1 ½ 35 26 0.5 to 10 BAR -10°C to 100°C
S56-9-50-*V 2 50 48 0.5 to 10 BAR -10°C to 100°C
