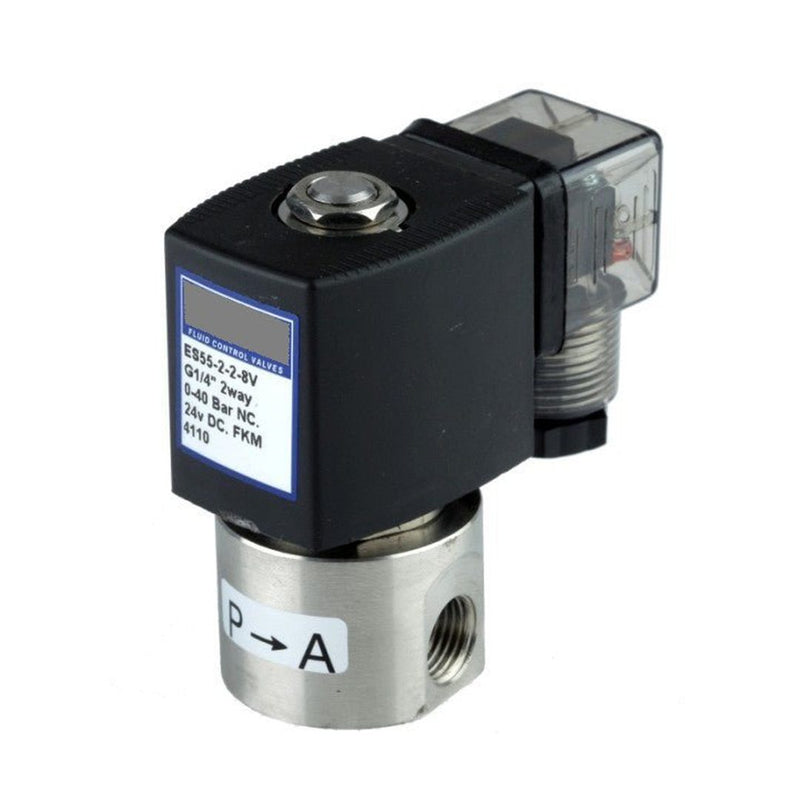

GO Solenoid Valve 1/8" to 1/4" ES55 Stainless General Purpose Direct Acting Normally Closed Range

SKU: ES55-1-1

$83

GO Solenoid Valve 1/8" to 1/4" ES55 Stainless General Purpose Direct Acting Normally Closed Range

A normally closed (power to open) direct acting solenoid valve with a 304 Stainless Steel machined body and stainless steel operator. Suitable for low head and zero head applications with a Viton (FKM) seat. Liquids to 50 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain, iodine dosing for dairies, chemicals and other general industry.

  • Size 1/8" to 1/4" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body 304 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 25 BAR (depend on size)
  • Media Non aggressive media

        304 S.S 2 way 2 position normally closed direct acting solenoid valve.G1/8", 1mm orifice, 304 SS operator, copper shading ring, FKM seat.0-25 BAR pressure range, media temp -10°C to 100°C.Coil Class H insulation, 17 Watts, IP65 protection. SC-N12 coil.

        Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Temperature Coil Wattage
        ES55-1-1-*V 1/8 1 0.04 0~25 -10°C to 95°C SC-N12 15 Watts
        ES55-2-2-*V 1/4 2 0.1 0~16 -10°C to 95°C SC-N14 21 Watts
        ES55-2-3-*V 1/4 3 0.2 0~10 -10°C to 95°C SC-N14
        ES55-2-4-*V 1/4 4 0.4 0~6 -10°C to 95°C SC-N14
