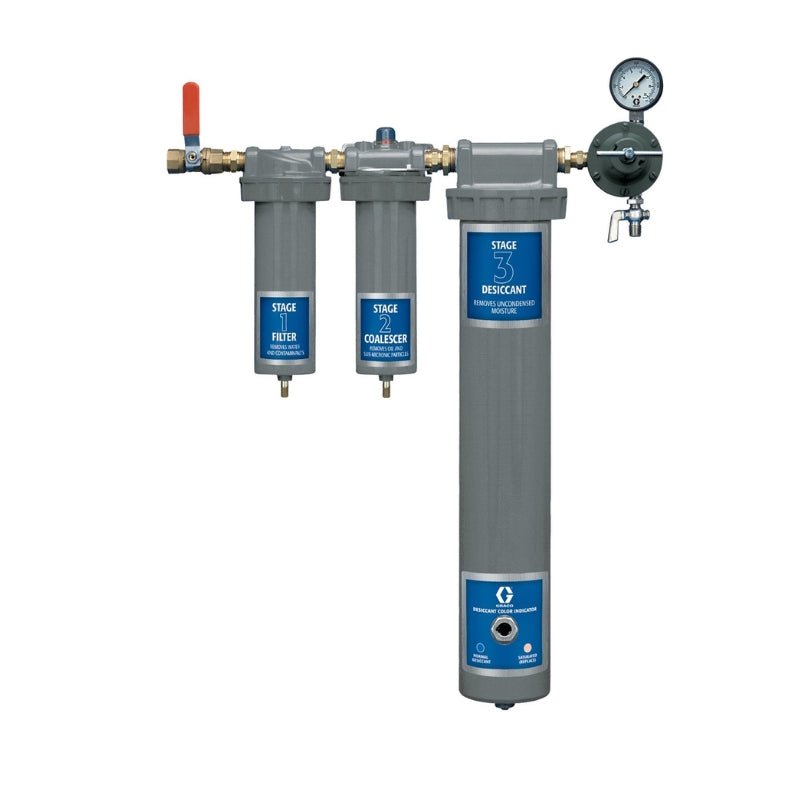

Graco 3-Stage Desiccant Drying System
  • Graco 3-Stage Desiccant Drying System
1 1

GRACO 3-Stage Desiccant Drying System

SKU: 234401

GRACO 3-Stage Desiccant Drying System

$1,947.00 AUD
$1,947.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
Graco 3-Stage Desiccant Drying System

GRACO 3-Stage Desiccant Drying System

$1,947.00 AUD
$1,947.00 AUD
Save $0
Sold out

Graco 3-Stage Desiccant Drying System

Overview

  • Ensures equipment is supplied with clean, dry air
  • Multi-stage filter removes particles down to 0.01 micron
  • Desiccant removes moisture from air
  • Includes shut-off valve and pressure regulator
  • Filter and desiccant indicators signal replacement to ensure optimal efficiency

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Brochure Graco Desiccant Air Drying System 320556EN-A
  • GO Manual Graco Desiccant Air Drying System 309921EN-N

Specifications

AIR INLET SIZE (CM) 1.27
AIR INLET SIZE (IN) 1/2
AIR INLET SIZE (MM) 12.7
AIR INLET THREAD GENDER Female
AIR INLET THREAD TYPE NPT
AIR OUTLET GENDER Female
AIR OUTLET SIZE (CM) 1.27
AIR OUTLET SIZE (IN) 1/2
AIR OUTLET SIZE (MM) 12.7
AIR OUTLET THREAD TYPE NPT
INCLUDES Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Desiccant Housing, Air Regulator, Silica Gel Desiccant
MATERIAL REMOVED Contaminants, Oil, Particles, Water
MAXIMUM OPERATING TEMPERATURE (°C) 65
MAXIMUM OPERATING TEMPERATURE (°F) 150
MAXIMUM WORKING PRESSURE (BAR) 11
MAXIMUM WORKING PRESSURE (KPA) 1100
MAXIMUM WORKING PRESSURE (PSI) 160
TYPE Desiccant Drying System
MAXIMUM WORKING PRESSURE (MPA) 1.1
MODEL Sharpe
