GRACO Air Valve Repair Kit

GRACO 255061 Air Valve Repair Kit for Husky 2150 Stainless Steel

SKU 255061
Afterpay Zip PayPal LeaseGO
$249.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Graco's factory air valve service kit for the Husky 2150 stainless steel air-operated double diaphragm pump (model DVD311 and any 2150 configuration with a stainless steel centre housing, identified by a V in the second digit of the model code, e.g. DV4, DVD, DVP, DVR).

Kit 255061 refreshes the complete air valve cartridge in one service: pilot block, air valve block, stainless steel air valve plate, cover gasket, three o-rings, and two u-cup packings. Fit it on first scheduled service of a Husky 2150 SS, or any time the pump cycles unevenly, stalls under load, leaks air from the muffler cover, or ices up on cold air supply.

This is the only air valve repair kit specified by Graco for stainless steel centre housing 2150 pumps. Aluminium centre housing 2150 pumps use kit 236273 instead. Contact us if you need help confirming which kit fits your pump.

Who it's for: maintenance teams running Husky 2150 SS pumps on chemicals, solvents, food-grade product, or any application that picked the stainless option originally.

Who it's not for: aluminium centre housing 2150 pumps (use 236273), or Husky pumps in any other size (1050, 1590, 2200, 3300 etc. each use their own AVRK).

Features

  • Complete air valve refresh: 7 distinct parts (9 pieces total) cover every wearing seal and surface in the air valve cartridge.

  • Stainless steel air valve plate: supplied only with the SS-spec kit (P/N 15H178); the aluminium-spec 236273 ships an aluminium plate instead.

  • Factory-spec elastomers: nitrile u-cups and o-rings plus buna-N o-rings, matched to the 2150 air motor service intervals.

  • Santoprene cover gasket: re-seals the air valve cleanly to the centre housing with no extra parts to source.

  • Acetal pilot and valve blocks: pre-assembled, ready to drop in.

  • Genuine Graco: manufactured by Graco, not a third-party equivalent; GO Industrial is an authorised Graco service centre.

Included accessories

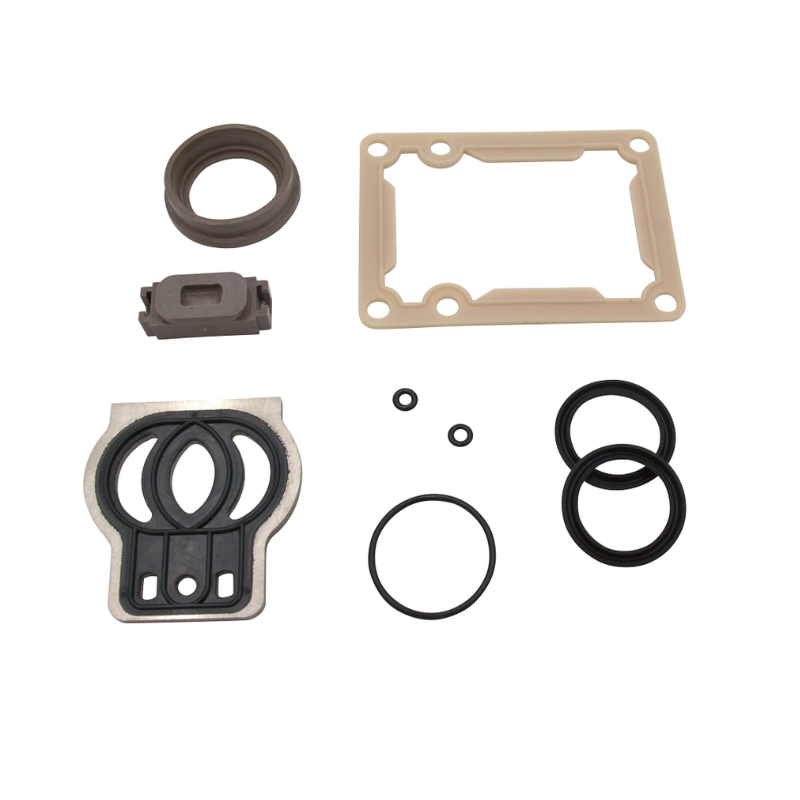

Each kit contains:

  • 1 x Air valve block, acetal (Graco ref 7)
  • 1 x Pilot block, acetal (Graco ref 18)
  • 1 x Air valve plate, stainless steel (Graco ref 8, P/N 15H178)
  • 1 x Cover gasket, santoprene (Graco ref 4)
  • 1 x O-ring, nitrile (Graco ref 6)
  • 2 x U-cup packings, nitrile (Graco ref 10)
  • 2 x O-rings, buna-N (Graco ref 17)

Lithium-based grease is required for assembly but is not supplied with the kit. Full assembly procedure is in Graco Instructions-Parts manual 308368 (page 28).

Specifications

Operational Specifications

UPC product 00633955222588
Family code FAMHPT
Country of Origin US
Unit of Measure EA
Height 3.81 CM
Length 17.78 CM
Width 12.446 CM
Volume .001 M3
Shipping Weight .06 KG

Technical Specifications

Type Air Valve Repair Kit
Warranty

Genuine Graco part backed against defects in materials and workmanship. GO Industrial is an authorised Graco service centre for warranty repairs and pump rebuilds across Australia.

Manual
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

How do I know if 255061 is the right kit for my Husky 2150?
Check the second digit of your pump model code on the serial plate. If it is V (e.g. DV4311, DVD311, DVP315, DVR315), your pump has a stainless steel centre housing and takes kit 255061. If it is F or G (e.g. DF3525, DFC311, DGD315), the centre housing is aluminium and you need kit 236273 instead.
What is in the kit?
Seven distinct parts: one acetal air valve block, one acetal pilot block, one stainless steel air valve plate, one santoprene cover gasket, one nitrile o-ring, two nitrile u-cup packings, and two buna-N o-rings. Refer to Graco manual 308368 for assembly diagrams.
When should I fit it?
Graco lists the air valve as a preventive maintenance item alongside the diaphragm and ball/seat service. Fit it whenever the pump shows symptoms of valve wear: uneven cycling, stalling at the end of stroke, air leaking from the muffler cover, or air valve icing on cold or wet compressed air. Many service teams fit one AVRK for every two diaphragm rebuilds.
Does the kit include grease for assembly?
Lithium-based grease is required for the u-cups, o-rings, and pilot pin per the assembly instructions. The 255061 kit does not include a grease tube, so have a standard lithium grease on hand before stripping the air valve.
Will this fit a Husky 1040 or Husky 1590?
Graco lists 255061 as compatible with Husky 1040, 1590, and 2150 pumps with stainless steel centre sections. In our Australian range we stock the SS centre section variant only on the 2150 (DVD311). If you have a 1040 or 1590 SS, the kit will fit, but contact us before ordering so we can verify the pump model code matches.
Is GO Industrial an authorised Graco service centre?
Yes. We are an authorised Graco warranty repairer and service centre. If you would prefer we fit the kit rather than do it in-house, send the pump head to our Brisbane workshop and we will turn it around for you.
