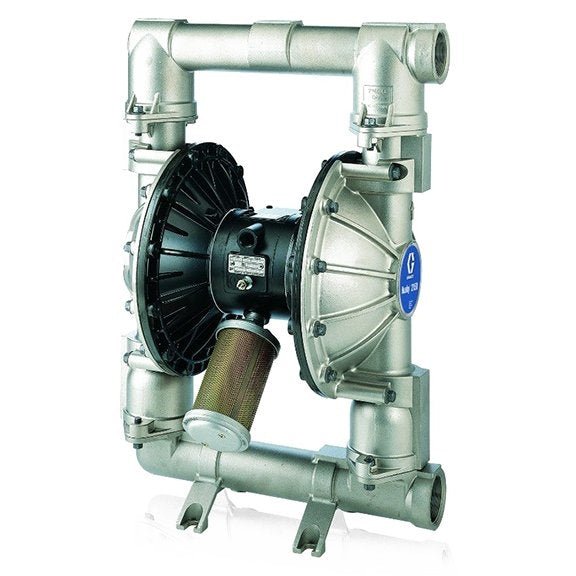

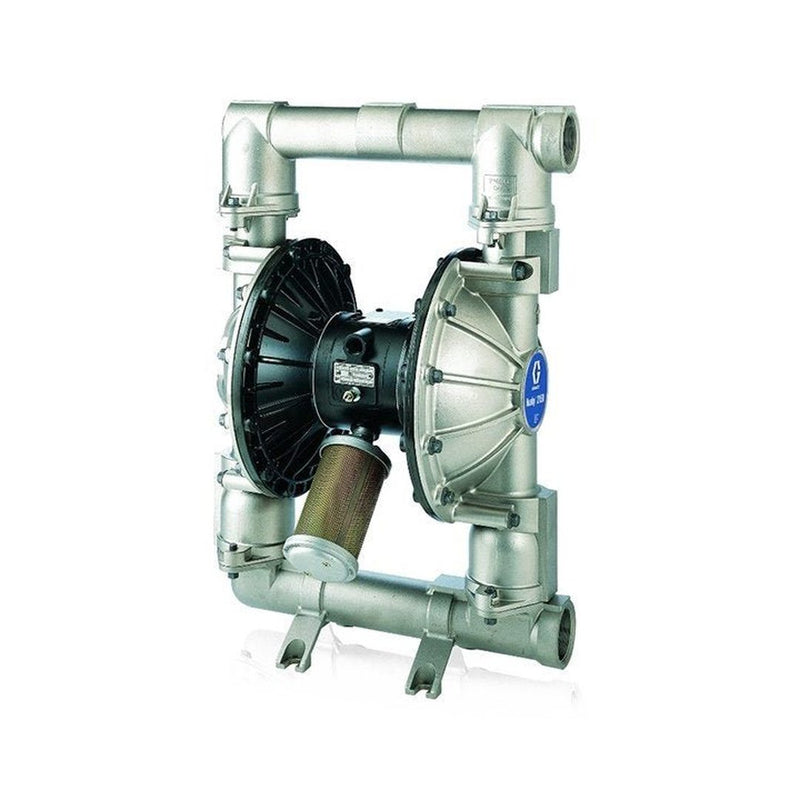

GRACO Husky SS 2150 Air-Operated Double Diaphragm Metal Pump

SKU: DVD311

GRACO Husky SS 2150 Air-Operated Double Diaphragm Metal Pump

$21,450.00 AUD
$21,450.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO Husky SS 2150 Air - Operated Double Diaphragm Metal Pump - GO Industrial - DVD311

GRACO Husky SS 2150 Air-Operated Double Diaphragm Metal Pump

$21,450.00 AUD
$21,450.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 150 gpm (568 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Features

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • 2 in. (51 mm) ANSI end-porting
  • Fluid flow up to 150 gpm (568 lpm)
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Epoxy-coated air section for tough environmental conditions

    • Graco Husky SS 2150 Air-Operated Double Diaphragm Metal Pump

    Overview

    The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 308368EN-ZAZ Graco HuskyTM 2150 Air-Operated Diaphragm Pumps Parts List
      • 308550EN-ZAM Graco Husky 2150 Air-Operated Diaphragm Pumps Manual
      • Graco Husky 2150 Pumps Data Sheet
      • GO Data Sheet Graco Husky 1050

      Specifications

      TYPE Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 3/4
      AIR EXHAUST PORT THREAD GENDER Female
      AIR EXHAUST PORT THREAD TYPE NPT
      AIR INLET SIZE (IN) 1/2
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      APPLICATION Industrial
      BALL MATERIAL PTFE
      CENTER SECTION MATERIAL Stainless Steel
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 5.08
      FLUID INLET SIZE (IN) 2
      FLUID INLET SIZE (MM) 50.8
      FLUID INLET THREAD TYPE BSPT
      FLUID OUTLET SIZE (CM) 5.08
      FLUID OUTLET SIZE (IN) 2
      FLUID OUTLET SIZE (MM) 50.8
      FLUID OUTLET THREAD TYPE BSPT
      FLUID SECTION MATERIAL Stainless Steel
      MANIFOLD CONFIGURATION End Port
      MANIFOLD O-RING MATERIAL PTFE
      MATERIAL Stainless Steel
      MAXIMUM AIR CONSUMPTION (SCFM) 175
      MAXIMUM AIR PRESSURE (BAR) 8
      MAXIMUM AIR PRESSURE (KPA) 800
      MAXIMUM AIR PRESSURE (PSI) 120
      MAXIMUM CYCLE RATE (CPM) 145
      MAXIMUM FLOW RATE (GPM) 150
      MAXIMUM FLOW RATE (L/MIN) 568
      MAXIMUM FLUID PRESSURE (BAR) 8
      MAXIMUM FLUID PRESSURE (KPA) 800
      MAXIMUM FLUID PRESSURE (PSI) 120
      MAXIMUM OPERATING TEMPERATURE (°C) 93
      MAXIMUM OPERATING TEMPERATURE (°F) 200
      MAXIMUM SOLID SIZE (CM) 0.635
      MAXIMUM SOLID SIZE (IN) 0.25
      MAXIMUM SOLID SIZE (MM) 6.35
      MODEL Husky
      POWER SOURCE Air
      SEAT MATERIAL Stainless Steel
      SERIES 2150
      STANDARDS MET ATEX, CE
      WEIGHT (LB) 134
      MAXIMUM FLUID PRESSURE (MPA) 0.8
      MAXIMUM AIR PRESSURE (MPA) 0.8
      CONNECTION TYPE Threaded
      DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

        Features

      • Overall improved efficiency (up to 40% more efficient)
      • Highest fluid flow rate in its class
      • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
      • Expanded material offering to handle endless applications
      • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
      • 2 in. (51 mm) ANSI end-porting
      • Fluid flow up to 150 gpm (568 lpm)
      • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
      • Lube-free operation
      • Epoxy-coated air section for tough environmental conditions
