GRACO RoadPak Double Acting Bead Spray Gun - GO Industrial - 24G979

GRACO RoadPak Double Acting Bead Spray Gun

SKU 24G979
Afterpay Zip PayPal LeaseGO
$1,710.00
Tax included.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Get a shipping estimate

The same live rates you'll see at checkout, for this item.

GRACO RoadPak Double Acting Bead Spray Gun · Qty 1

Estimate inc GST for this item plus anything already in your cart. Your final rate is confirmed at checkout.

Need it palletised or delivered to site? Chat with us.

Calculate your LeaseGO repayments

Spread the cost over 24, 36 or 48 months with simple monthly payments.

Business customers only. LeaseGO finance is available to businesses with an active ABN. It isn't available for personal or household purchases.

$
Pick a term that suits your cash flow
24 months
Per month-
Per week-
Per day-
36 months
Per month-
Per week-
Per day-
48 months
Per month-
Per week-
Per day-

Terms and conditions apply, subject to suitability assessment. Prices quoted are indicative only and payable monthly in advance over the chosen term. $99 Establishment Fee payable upon commencement ($79 under $1,500). Visit LeaseGo.com.au to learn more.

Scan or click here to apply now with LeaseGo

Apply in minutes with your mobile, licence and ABN, then give your approval number to the GO team.

Apply now
LeaseGo application QR code

Dispatch options

GO stock or Melbourne supplier stock

Australia-wide delivery

Delivery to your job site

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

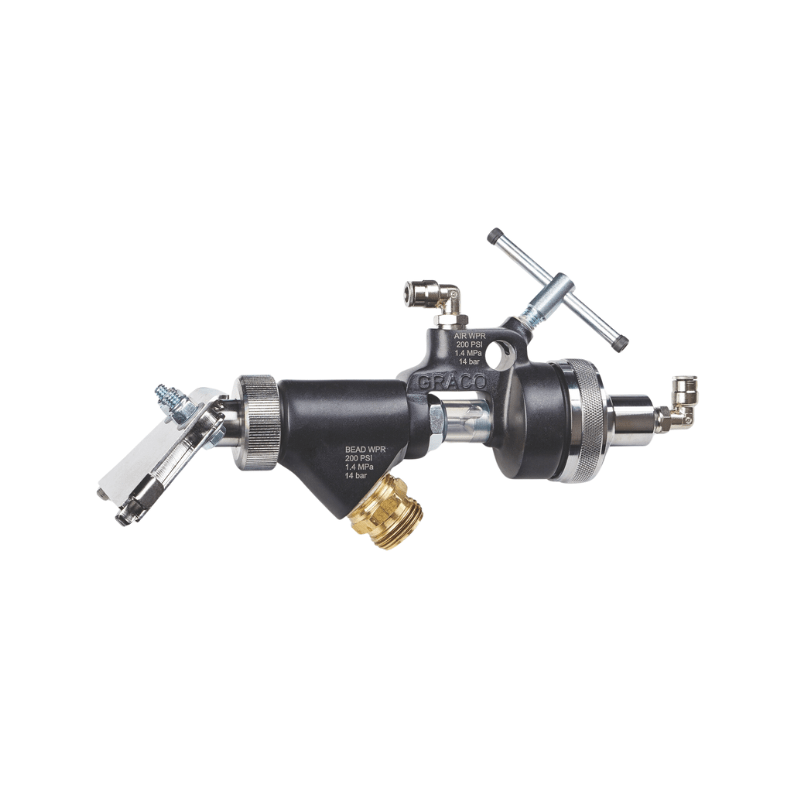

Double acting bead spray gun 24G979 drops glass beads onto the wet line on RoadLazer RoadPak and RoadPak HD truck-mount striping systems. It mounts on the RoadPak gun arm beside the paint gun, fires when the controller sends trigger air, and meters bead flow through an interchangeable valve seat from 0.170 to 0.420 in.

Bead delivery is set by the seat size and the bead tank pressure, 30 to 75 psi, for an output of 0.9 to 18 kg/min. Graco sets 0.280 in. as the minimum seat for reflective beads and double drop work, as smaller seats clog. Always run a catch test on the job and adjust tank pressure or seat size to suit.

Set trigger air to at least 80 psi. Needle, seal nut and o-rings are rebuilt with repair kit 238340. Nozzle selection charts and service steps are in manual 308612 below.

Features
  • RoadPak Factory Fitment: The bead gun Graco fits to RoadPak gun arms 25M708, 25M709 and 25M710, alongside the 24G980 paint gun.

  • Interchangeable Valve Seats: Seat sizes 0.170, 0.203, 0.234, 0.280, 0.344 and 0.420 in., each sold as a kit with its o-ring.

  • 0.9-18 KG/MIN Bead Output: Set by seat size and 30 to 75 psi bead tank pressure, so one gun covers light drop-on through heavy reflective work.

  • Adjustable Spray Width: Bead pattern from 50 to 304 mm, set with the adjustable bead deflector.

  • Low Air Use: 1 to 2 cfm, 80 psi minimum trigger air, 1/4 in. NPT(F) air inlet and 3/4 in. NPT(F) bead inlet.

  • Rebuildable: Needle, seal nut, protection tube and o-rings are all in repair kit 238340.
Specifications
GRACO PART NUMBER 24G979
GUN TYPE Automatic, Double Acting, Air Actuated
SUITS MACHINE RoadLazer RoadPak, RoadPak HD
FACTORY FITTED TO RoadPak Gun Arms 25M708, 25M709, 25M710
MAXIMUM WORKING PRESSURE 200 PSI | 13.8 BAR
BEAD TANK PRESSURE 30-75 PSI | 2.1-5.2 BAR
TRIGGER AIR PRESSURE 80-200 PSI | 5.5-13.8 BAR
BEAD OUTPUT 0.9-18 KG/MIN
SPRAY WIDTH 50-304 MM
AIR CONSUMPTION 1-2 CFM
AIR CONNECTION 1/4 in. NPT(F)
BEAD CONNECTION 3/4 in. NPT(F)
VALVE SEAT SIZES 0.170, 0.203, 0.234, 0.280, 0.344, 0.420 in.
MINIMUM SEAT, REFLECTIVE / DOUBLE DROP 0.280 in.
OPERATING TEMPERATURE 0-49 °C
REPAIR KIT 238340
MANUAL 308612
Warranty

12 month Graco warranty on manufacturing defects when purchased as a standalone part. Needles, seats and packings are wear parts and are not covered in normal use. GO Industrial is an Authorised Graco Warranty Repairer and Service Centre.

Read full warranty guide ›

Manual
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

Which machines does this gun suit?
RoadLazer RoadPak and RoadPak HD truck-mount striping systems. It is the bead gun fitted to RoadPak gun arms 25M708, 25M709 and 25M710, paired with the 24G980 paint gun.
Which valve seat should I use?
Pick the seat from the bead delivery you need at your travel speed, leaving room to adjust tank pressure up or down. Graco sets 0.280 in. as the minimum for reflective beads and double drop work, as smaller seats clog. Seat kits with o-ring are 17V103 (0.170), 238663 (0.203), 238666 (0.234), 238664 (0.280), 238665 (0.344) and 243668 (0.420). Chat with us if a seat kit is not on the website.
How do I set the bead rate?
Bead output is set by seat size and bead tank pressure, between 30 and 75 psi. Run a timed catch into a container at your working pressure, weigh it, and compare against the rate your line width, film build and travel speed need. Adjust tank pressure first and change seat size if you run out of range.
What is the difference between the single acting and double acting gun?
Both are RoadPak bead guns rated to 200 psi and use the same seats and repair kit. The single acting 238338 needs at least 50 psi trigger air and the double acting 24G979 needs at least 80 psi. Match the gun already on your arm, the part number is on the gun body.
How do I look after it?
Wipe the outside clean with a cloth dampened in a compatible solvent. Never soak the whole gun in solvent, as it strips the lubricant and damages the seals. Keep the bead supply dry, and blow a hardened particle out of the orifice from the front with air.
When does it need a rebuild?
If the gun keeps dropping beads after the trigger air drops, or will not fire with good air pressure, the needle, seal or seat is worn or binding. Repair kit 238340 replaces the needle, seal nut and o-rings. Relieve bead tank pressure first and follow manual 308612.
Can GO Industrial service it for me?
Yes. Our Deception Bay workshop services Graco line striping systems and we are an Authorised Graco Warranty Repairer and Service Centre. Send the gun in on its own or book the whole rig through. Chat with us or email sales@goind.com.au to get it booked.
