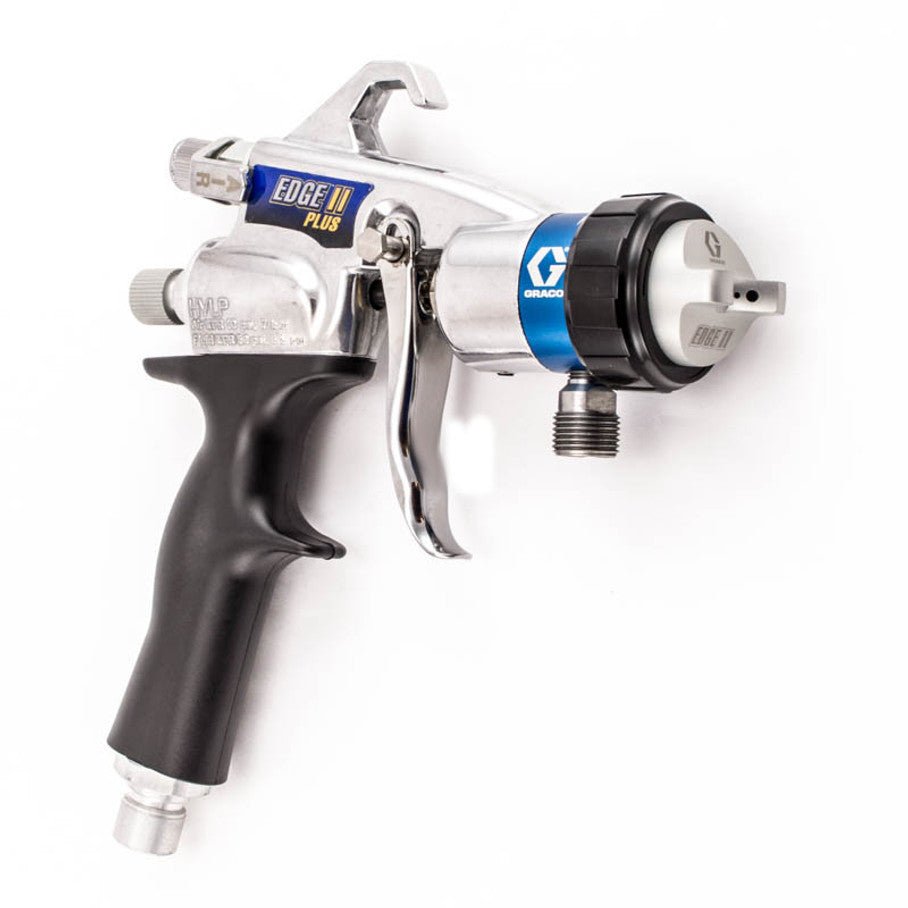

GRACO Finish Pro HVLP Edge II Plus Guns
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Maximize your spraying performance with the new, innovative HVLP EDGE Gun. With cutting edge technology such as streamlined, intuitive gun controls, Quick Release fluid set, and optimized air pressure and air flow, the new HVLP EDGE Gun will help you achieve the highest quality finish available in fine finish spraying.
Features
Features
Integrated Flow Control
- Combines material and air flow into one simple control
- Optimized to spray the majority of fine finish applications
- Quick adjustment with 360° rotation and indicator for repeatable spray setting
Adjustable Air Cap
- 3-position rotation to change spray pattern
- Conveniently located at the front of the gun
Exclusive Quick Clean Check Valve
- Allows more air pressure into the material cup to spray heavier material
- Easily clean and reuse versus replace
- Located by gun to reduce clogged valves due to paint contamination
EasyGlide 2-Finger Trigger and Ergonomic Handle
- Trigger has up to 75% lighter pull than competition
- 2-finger trigger design gives more control while spraying
- Form-fitted handle stays cool to the touch for extended use
Quick Release Needle Design
- Change out needles from the front of the gun with just a click
- Easy to change, easy to clean with no tools needed
- Remove front air cap and nozzle
- Slide trigger lever to release needle
- Pull needle out
Specifications
| COMPATIBLE MATERIAL | Varnish, Enamel, Latex, Stains |
|---|---|
| FOR USE WITH | FinishPro HVLP Sprayers |
| GUN ACTIVATION | Manual |
| GUN TYPE | HVLP Gun |
| GUN WEIGHT (G) | 570 |
| GUN WEIGHT (KG) | 0.57 |
| GUN WEIGHT (LB) | 1.25 |
| GUN WEIGHT (OZ) | 20 |

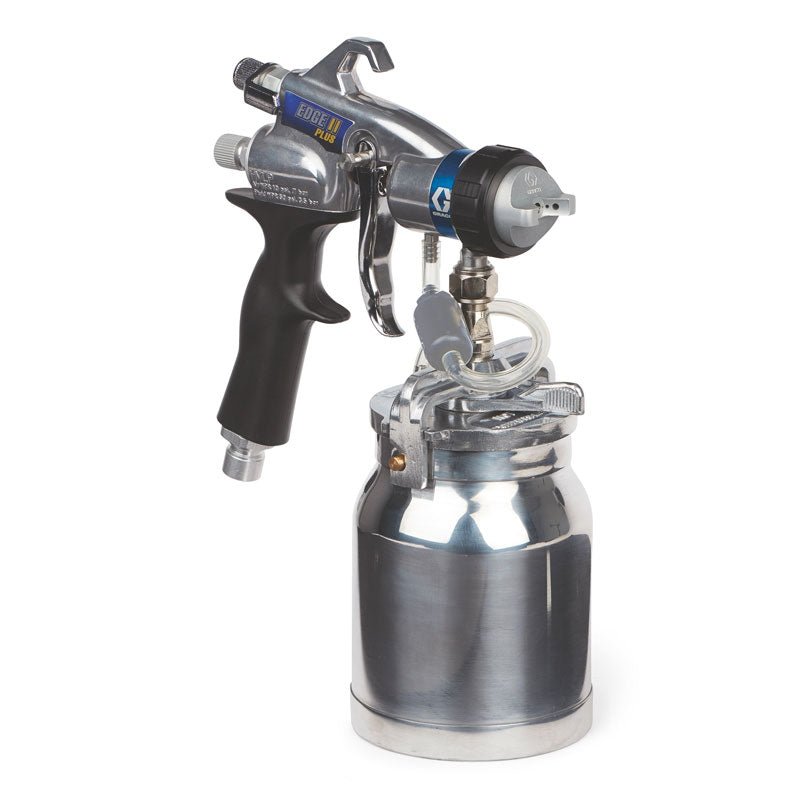

| INCLUDES | 1 qt FlexLiner Cup, #3 Quick Release Fluid Set |
| MAXIMUM AIR PRESSURE (BAR) | 0.7 |
| MAXIMUM AIR PRESSURE (KPA) | 70 |
| MAXIMUM AIR PRESSURE (PSI) | 10 |
| MAXIMUM FLUID PRESSURE (BAR) | 3.5 |
| MAXIMUM FLUID PRESSURE (KPA) | 350 |
| MAXIMUM FLUID PRESSURE (PSI) | 50 |
| MODEL | HVLP |
| SERIES | EDGE II Plus |
| TRIGGER TYPE | Two-Finger |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| SPRAY TYPE | HVLP |
| GUN INCLUDED | 1 |
| APPLICATOR TYPE | Manual |
| SOUND POWER LEVEL (DB(A)) | 65 |
| SOUND PRESSURE LEVEL (DB(A)) | 65 |
| MAXIMUM FLUID PRESSURE (MPA) | 0.35 |
| MAXIMUM AIR PRESSURE (MPA) | 0.07 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 0.7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 70 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 11 |
| MAXIMUM AIR INLET PRESSURE (MPA) | 0.07 |
