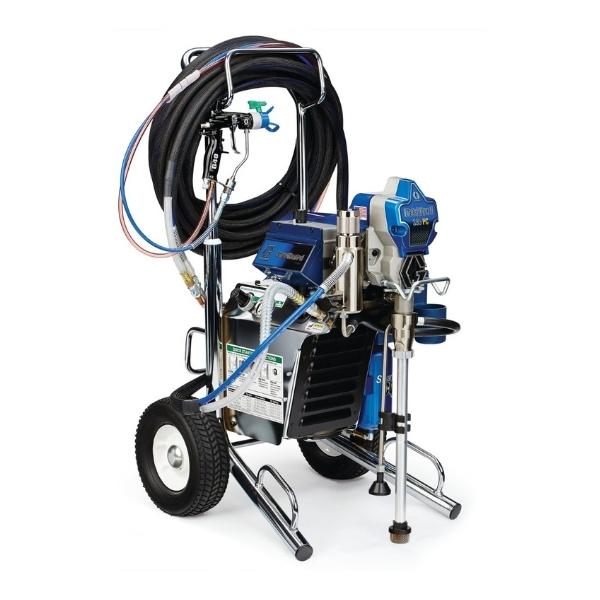

GRACO FinishPro II 395 PC Electric Air-Assisted Airless Sprayer

SKU 17C321
Afterpay Zip PayPal LeaseGO
$6,772.00 $8,460.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock, Victoria Warehouse

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Overview

With features that make a great sprayer even better, the FinishPro II 395 PC is Graco’s premier solution to fine finishing. It delivers a high quality finish at a high production rate, and can handle the most challenging materials.

Includes the features and output to quickly deliver high-quality finishes.

Features

Features

SmartControl 1.0 with Digital Display

  • Increased spray performance
  • Consistent spray fan without pressure fluctuations at all spraying pressures
  • Digital display accurately shows spraying pressure

    • SmartComp

  • Compressor is activated by the gun trigger—if you’re not spraying, it’s not running!
  • Reduces jobsite noise, resulting in less fatigue
  • Automatic shut-off reduces moisture entering the system and extends compressor life
  • Pulling trigger delivers instant air to the gun with zero lag
  • Release the trigger and SmartComp shuts off the compressor after 5 seconds
  • Extends compressor life

    • Chromex Endurance Pump

  • The most reliable pump on the market—lasts 2 times longer than the next leading brand
  • Long-life V-Max Blue packings, Chromex rod and hardened stainless steel cylinder
  • QuikAccess intake valve for fast cleaning or debris clearing

    • ProConnect

  • Fast and easy on-the-job Pump Replacement System
  • 1-minute jobsite replacement in 3 simple steps
  • Pinless design eliminates the chance of losing parts during the change-out process

    • High-Output On-Board Air Compressor

  • Ideal for on-site finish jobs
  • Delivers 3.2 ft³/min at 35 psi (0.1 m³/min at 2.4 bar)—enough air to break up the heaviest of materials
  • Exclusive Pressure Unloader results in quieter operation
  • Cooling coil reduces air temperature, extending the life of the critical components and providing safer operator handling

    • Precision-Cut RAC X FF LP SwitchTip

  • Less overspray and increased pump life
  • Sprays at lower pressures with less overspray
  • Pre-orifice design produces a perfect airless finish
  • Finer atomization and soft edges for easier overlapping
  • Reduces prep and cleanup
  • Includes solvent seal for hot solvents

    • G40 Spray Gun

  • An industrial quality air-assisted spray gun that delivers superior finishing results
  • Integrated air valve improves gun handling
  • RAC X guard included
  • Flat tip conversion kit included

    • Super-Flex Hose Set

  • The flexibility to get into tight spaces—focus on the task, not the tool!
  • Extremely lightweight in hand, which reduces fatigue
  • Connects directly to the gun for maximum flexibility
  • Flex Wrap hose skin protects from paint build up and increases hose durability

    • Two Sprayers in One

  • Select air-assisted or airless modes, depending on what’s best for the application
  • Simple, color-coded labels easily identify airless and air-assisted airless modes with a single selector switch

    • Self-Contained Portable

  • One plug runs the entire unit, simplifying jobsite operation
    • Specifications
    FinishPro II 395 PC Airless/Air-Assisted Sprayers, Models: 17C417, 17C418, 17C421, 17C320, 17C321
    Sprayer
    Power requirements
    ◆ 230V AC, 50/60 Hz, 10A, 1Ø
    Generator Minimum
    4000 W
    Maximum Tip Size
    US★ / UK★
    0.021
    Europe◆ / Asia/Australia◆
    0.023
    Maximum material output gpm (lpm)
    US★ / UK★
    1.8 lpm
    Europe◆ / Asia/Australia◆
    2.0 lpm
    Maximum material pressure – Airless
    US★
    228 bar, 22.8 MPa
    UK★
    193 bar, 19.3 MPa
    Europe◆ / Asia/Australia◆
    228 bar, 22.8 MPa
    Maximum material pressure – AA
    US★ / UK★
    193 bar, 19.3 MPa
    Europe / Asia/Australia
    228 bar, 22.8 MPa
    Atomizing air output
    US★ / UK★
    3.2 cfm
    Europe / Asia/Australia
    2.9 cfm
    Air pressure
    2.4 bar
    Dimensions
    Length (mm)
    825
    Width (mm)
    533
    Height (mm)
    1028
    Weight (bare)
    49.9 kg
    Noise** (dBa) level at 70 psi (4.8 bar, 0.48 MPa)
    Sound pressure
    79 dBa
    Sound power
    96 dBa
    Materials of Construction.
    Pump motor
    TEFC 7/8 HP DC
    Compressor motor
    1.0 HP AC Induction
    Material hose
    1/4 in. x 15.2 m (blue)
    Air hose
    3/8 in. x 15.2 m (clear)
    Gun
    G40 w RAC X tip
    Wetted materials on all models
    zinc- and nickel-plated carbon steel, nylon, stainless steel, PTFE, Acetal, leather, UHMWPE, aluminum, tungsten carbide, polyethylene, fluoroelastomer, urethane
    Notes
    * Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type. ** Sound pressure measured 3 feet (1 meter) from equipment. Sound power measured per ISO-3744.
