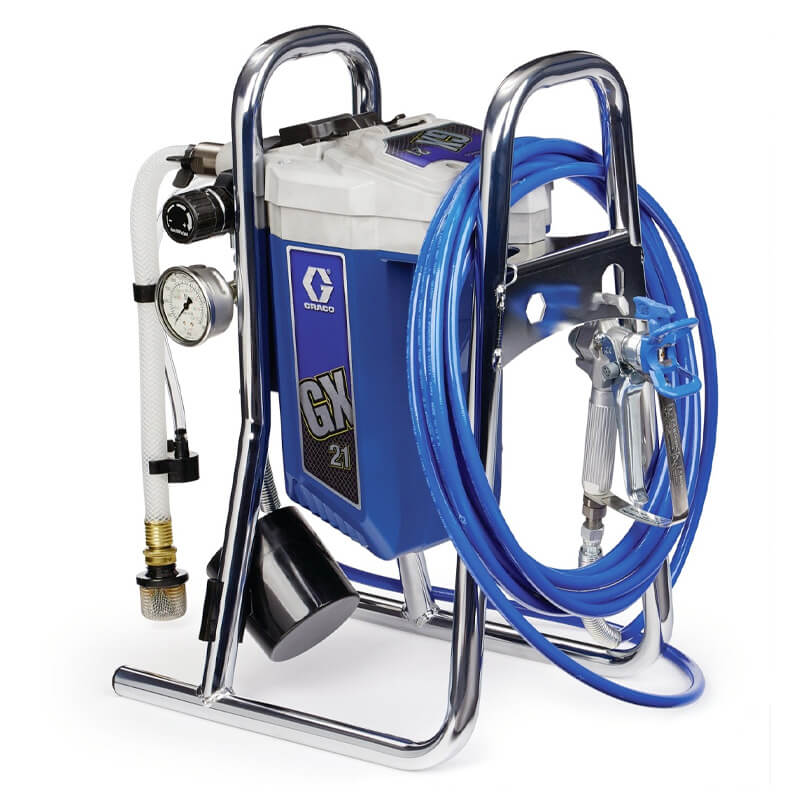

GRACO GX 21 Portable Electric Airless Sprayer
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Durable design delivers professional results you can afford.
The GX 21 is the fast, portable and affordable solution for small finishing jobs every finishing contractor faces. Graco's proven piston pump and RAC X SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.
For portable airless spraying of architectural paints and coatings
Features
Features
Extremely Portable
- Lighter than any competitive system
- Easy Carry Handle makes transportation easy
- Lid prevents splashes and spills while carrying
Direct Immersion Design
- Draws paint directly from paint buckets
- Flexible, clear suction set is easy to use and clean
- Spray water or solventbased paints directly from containers from 1 - 30 litres
ProX Power-Piston Pump featuring ProXChange
- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement—no tools needed
- Eliminate labor costs and downtime expenses
Professional SG3 Gun
- Includes RAC X tip, 15 m hose
Specifications
| FLUID OUTLET SIZE (IN) | 1/4 |
|---|---|
| FLUID OUTLET SIZE (MM) | 6.35 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | DI Stand |
| MAXIMUM FLOW RATE (GPM) | 0.47 |
| MAXIMUM FLOW RATE (L/MIN) | 1.8 |
| MAXIMUM TIP SIZE (IN) | 0.021 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| OVERALL WIDTH (MM) | 343 |
| MODEL | GX |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| OVERALL HEIGHT (CM) | 46.7 |
| OVERALL HEIGHT (IN) | 18.4 |
| WEIGHT (KG) | 11.3 |
| WEIGHT (LB) | 25 |
| OVERALL HEIGHT (MM) | 467 |
| OVERALL LENGTH (CM) | 47.5 |
| OVERALL WIDTH (IN) | 13.5 |
| OVERALL LENGTH (IN) | 16.7 |
| SERIES | 21 |
| OVERALL LENGTH (MM) | 475 |
| OVERALL WIDTH (CM) | 34.3 |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Stainless Steel, Brass, Leather, Carbide, Nylon, Aluminum, PVC, Polypropylene, Fluoroelastomer, UHMWPE |
| VOLTAGE (V) | 230 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 46 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 115 |
| SOUND PRESSURE LEVEL (DB(A)) | 93 |
| SOUND POWER LEVEL (DB(A)) | 93 |
| MINIMUM OPERATING TEMPERATURE (°C) | 4 |
| MINIMUM OPERATING TEMPERATURE (°F) | 40 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 71 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 160 |
| MINIMUM STORAGE TEMPERATURE (°C) | -35 |
| MINIMUM STORAGE TEMPERATURE (°F) | -30 |
