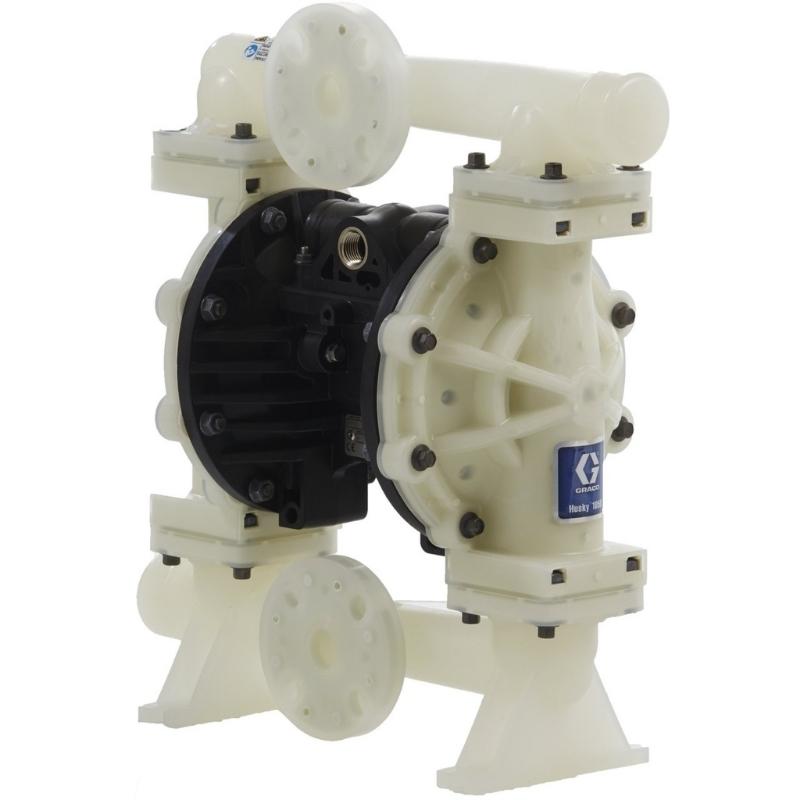

GRACO Husky 1050 Air-Operated Diaphragm PP Pumps

SKU: 649006

GRACO Husky 1050 Air-Operated Diaphragm PP Pumps

$3,773.00 AUD
$3,773.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Models

Other payment options

View full details
GRACO Husky 1050 Air - Operated Diaphragm PP Pumps - GO Industrial - 649006

GRACO Husky 1050 Air-Operated Diaphragm PP Pumps

From $3,333.00 AUD
From $3,333.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • 649006: Husky 1050 PP (NPT) Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
  • 649034: Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
  • 649001: Husky 1050 PP (NPT) Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm
  • 649029: Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

Features

  • Longer Diaphragm Life. Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve. Stall-free, low pulsation operation provides smooth and rapid changeover

  • One-Piece Center Section. Eliminates air leaks for more efficient operation

  • Four Bolt Joint Design. Bolted design provides even sealing pressure for leak-free operation

  • Multiple Ports. Increased number of ports for installation flexibility

  • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
  • 30% more efficient than the market leader
  • 20% increase in fluid flow compared to the Husky 1040
  • Optional Features
    • DataTrak™ - Runaway protection and tracks material usage
    • Pulse Output - Cycle count capability

Graco Husky 1050 Air-Operated Diaphragm PP Pumps

Overview

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • 312877EN-ZAG Graco Husky 1050 Air-Operated Diaphragm Pumps Manual
    • 313435EN-ZAR Graco Husky 1050 Air-Operated Diaphragm Pumps Repair Parts
    • Graco Husky 1050 Pumps Data Sheet
    • GO Data Sheet Graco Husky 1050

    Specifications

    Technical Specifications SKU 649006 SKU 649034
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4 3/4
    AIR EXHAUST PORT THREAD GENDER Female Female
    AIR EXHAUST PORT THREAD TYPE NPT NPT
    AIR INLET SIZE (IN) 1/2 1/2
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT NPT
    APPLICATION Industrial Industrial
    BALL MATERIAL PTFE PTFE
    CENTER SECTION MATERIAL Polypropylene Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece PTFE/EPDM 2-Piece
    FLUID INLET SIZE (CM) 2.54 2.54
    FLUID INLET SIZE (IN) 1 1
    FLUID INLET SIZE (MM) 25.4 25.4
    FLUID OUTLET SIZE (CM) 2.54 2.54
    FLUID OUTLET SIZE (IN) 1 1
    FLUID OUTLET SIZE (MM) 25.4 25.4
    FLUID SECTION MATERIAL Polypropylene Polypropylene
    MANIFOLD CONFIGURATION Center Port End Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL Polypropylene Polypropylene
    MAXIMUM AIR CONSUMPTION (SCFM) 67 67
    MAXIMUM AIR PRESSURE (BAR) 8.6 8.6
    MAXIMUM AIR PRESSURE (KPA) 860 860
    MAXIMUM AIR PRESSURE (PSI) 125 125
    MAXIMUM CYCLE RATE (CPM) 280 280
    MAXIMUM FLOW RATE (GPM) 50 50
    MAXIMUM FLOW RATE (L/MIN) 189 189
    MAXIMUM FLUID PRESSURE (BAR) 8.6 8.6
    MAXIMUM FLUID PRESSURE (KPA) 860 860
    MAXIMUM FLUID PRESSURE (PSI) 125 125
    MAXIMUM OPERATING TEMPERATURE (°C) 66 66
    MAXIMUM OPERATING TEMPERATURE (°F) 150 150
    MAXIMUM SOLID SIZE (CM) 0.3175 0.3175
    MAXIMUM SOLID SIZE (IN) 0.125 0.125
    MAXIMUM SOLID SIZE (MM) 3.175 3.175
    MODEL Husky Husky
    OVERALL HEIGHT (IN) 17.8 17.8
    POWER SOURCE Air Air
    SEAT MATERIAL Polypropylene Polypropylene
    SERIES 1050 1050
    WEIGHT (LB) 18 18
    WETTED MATERIAL Polypropylene, PTFE/EPDM Polypropylene, PTFE/EPDM
    MAXIMUM FLUID PRESSURE (MPA) 0.86 0.86
    MAXIMUM AIR PRESSURE (MPA) 0.86 0.86
    CONNECTION TYPE Center Flange ANSI/DIN End Flange ANSI/DIN
    DIAPHRAGM_COMPATIBLE_MATERIAL PTFE PTFE


    Technical Specifications SKU 649001 SKU 649029
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4 3/4
    AIR EXHAUST PORT THREAD GENDER Female Female
    AIR EXHAUST PORT THREAD TYPE NPT NPT
    AIR INLET SIZE (IN) 1/2 1/2
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT NPT
    APPLICATION Industrial Industrial
    BALL MATERIAL Santoprene Santoprene
    CENTER SECTION MATERIAL Polypropylene Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL Santoprene Santoprene
    FLUID INLET SIZE (CM) 2.54 2.54
    FLUID INLET SIZE (IN) 1 1
    FLUID INLET SIZE (MM) 25.4 25.4
    FLUID OUTLET SIZE (CM) 2.54 2.54
    FLUID OUTLET SIZE (IN) 1 1
    FLUID OUTLET SIZE (MM) 25.4 25.4
    FLUID SECTION MATERIAL Polypropylene Polypropylene
    MANIFOLD CONFIGURATION Center Port End Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL Polypropylene Polypropylene
    MAXIMUM AIR CONSUMPTION (SCFM) 67 67
    MAXIMUM AIR PRESSURE (BAR) 8.6 8.6
    MAXIMUM AIR PRESSURE (KPA) 860 860
    MAXIMUM AIR PRESSURE (PSI) 125 125
    MAXIMUM CYCLE RATE (CPM) 280 280
    MAXIMUM FLOW RATE (GPM) 50 50
    MAXIMUM FLOW RATE (L/MIN) 189 189
    MAXIMUM FLUID PRESSURE (BAR) 8.6 8.6
    MAXIMUM FLUID PRESSURE (KPA) 860 860
    MAXIMUM FLUID PRESSURE (PSI) 125 125
    MAXIMUM OPERATING TEMPERATURE (°C) 66 66
    MAXIMUM OPERATING TEMPERATURE (°F) 150 150
    MAXIMUM SOLID SIZE (CM) 0.3175 0.3175
    MAXIMUM SOLID SIZE (IN) 0.125 0.125
    MAXIMUM SOLID SIZE (MM) 3.175 3.175
    MODEL Husky Husky
    OVERALL HEIGHT (IN) - 17.8
    POWER SOURCE Air Air
    SEAT MATERIAL Polypropylene Polypropylene
    SERIES 1050 1050
    WEIGHT (LB) 18 18
    WETTED MATERIAL - Polypropylene, Santoprene, PTFE
    MAXIMUM FLUID PRESSURE (MPA) 0.86 0.86
    MAXIMUM AIR PRESSURE (MPA) 0.86 0.86
    CONNECTION TYPE Center Flange ANSI/DIN End Flange ANSI/DIN
    DIAPHRAGM_COMPATIBLE_MATERIAL Santoprene Santoprene

      Features

      • Longer Diaphragm Life. Up to 5x longer diaphragm life for less maintenance and downtime

      • Modular Air Valve. Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section. Eliminates air leaks for more efficient operation

      • Four Bolt Joint Design. Bolted design provides even sealing pressure for leak-free operation

      • Multiple Ports. Increased number of ports for installation flexibility

      • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
      • 30% more efficient than the market leader
      • 20% increase in fluid flow compared to the Husky 1040
      • Optional Features
        • DataTrak™ - Runaway protection and tracks material usage
        • Pulse Output - Cycle count capability
