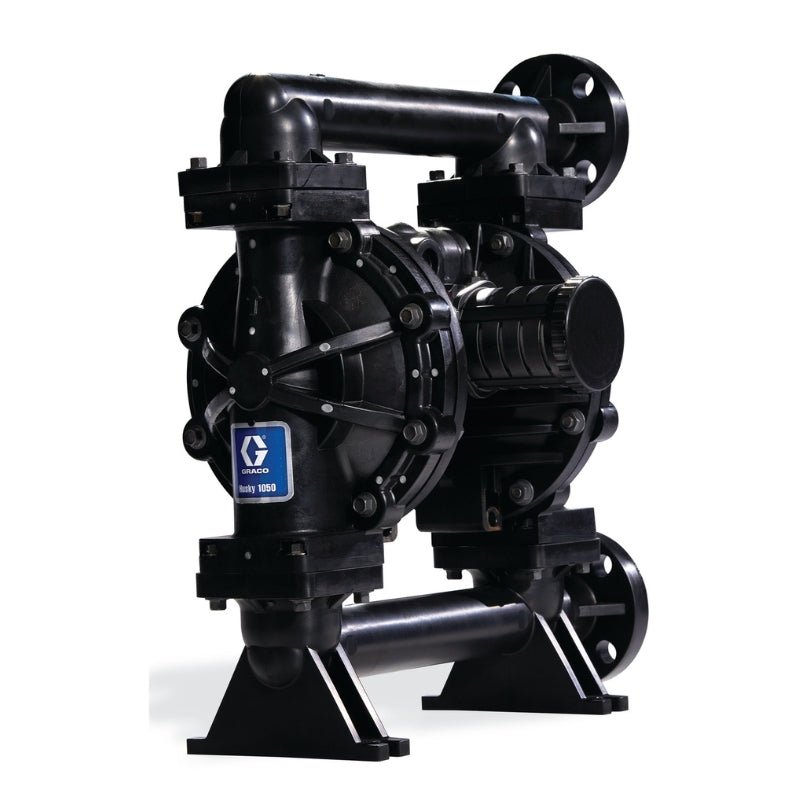

Graco Husky® 1050 PVDF Air-Operated Diaphragm Pump Range
1 1
  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • 649384: Husky 1050 PVDF Pump, Center Flange, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
  • 649398: Husky 1050 PVDF Pump, End Flange, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
  • 312877EN-ZAG Graco Husky 1050 Air-Operated Diaphragm Pumps Manual
  • 313435EN-ZAR Graco Husky 1050 Air-Operated Diaphragm Pumps Repair Parts
  • Graco Husky 1050 Pumps Data Sheet
  • GO Data Sheet Graco Husky 1050
TECHNICAL SPECIFICATIONS
TYPE Pneumatic Diaphragm Pump
AIR EXHAUST PORT SIZE (IN) 3/4
AIR EXHAUST PORT THREAD GENDER Female
AIR EXHAUST PORT THREAD TYPE NPT
AIR INLET SIZE (IN) 1/2
AIR INLET THREAD GENDER Female
AIR INLET THREAD TYPE NPT
APPLICATION Industrial
BALL MATERIAL PTFE
CENTER SECTION MATERIAL Polypropylene
COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
FLUID INLET SIZE (CM) 2.54
FLUID INLET SIZE (IN) 1
FLUID INLET SIZE (MM) 25.4
FLUID OUTLET SIZE (CM) 2.54
FLUID OUTLET SIZE (IN) 1
FLUID OUTLET SIZE (MM) 25.4
FLUID SECTION MATERIAL PVDF (Kynar)
MANIFOLD CONFIGURATION Center Port [649384] End Port [649398]
MANIFOLD O-RING MATERIAL PTFE
MATERIAL PVDF
MAXIMUM AIR CONSUMPTION (SCFM) 67
MAXIMUM AIR PRESSURE (BAR) 8.6
MAXIMUM AIR PRESSURE (KPA) 860
MAXIMUM AIR PRESSURE (PSI) 125
MAXIMUM CYCLE RATE (CPM) 280
MAXIMUM FLOW RATE (GPM) 50
MAXIMUM FLOW RATE (L/MIN) 189
MAXIMUM FLUID PRESSURE (BAR) 8.6
MAXIMUM FLUID PRESSURE (KPA) 860
MAXIMUM FLUID PRESSURE (PSI) 125
MAXIMUM OPERATING TEMPERATURE (°C) 104
MAXIMUM OPERATING TEMPERATURE (°F) 220
MAXIMUM SOLID SIZE (CM) 0.3175
MAXIMUM SOLID SIZE (IN) 0.125
MAXIMUM SOLID SIZE (MM) 3.175
MODEL Husky
OVERALL HEIGHT (IN) 17.8
POWER SOURCE Air
SEAT MATERIAL PVDF (Kynar)
SERIES 1050
STANDARDS MET CE
WEIGHT (LB) 26
WETTED MATERIAL PVDF, Polypropylene, PTFE/EPDM
MAXIMUM FLUID PRESSURE (MPA) 0.86
MAXIMUM AIR PRESSURE (MPA) 0.86
CONNECTION TYPE Center Flange ANSI/DIN [649384] End Flange ANSI/DIN [649398]
DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

  • Longer Diaphragm Life. Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve. Stall-free, low pulsation operation provides smooth and rapid changeover

  • One-Piece Center Section. Eliminates air leaks for more efficient operation

  • Four Bolt Joint Design. Bolted design provides even sealing pressure for leak-free operation

  • Multiple Ports. Increased number of ports for installation flexibility

  • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
  • 30% more efficient than the market leader
  • 20% increase in fluid flow compared to the Husky 1040
  • Optional Features
    • DataTrak™ - Runaway protection and tracks material usage
    • Pulse Output - Cycle count capability

Graco Husky® 1050 PVDF Air-Operated Diaphragm Pump Range

SKU: 649384

Graco Husky® 1050 PVDF Air-Operated Diaphragm Pump Range

$7,326.00 AUD
$7,326.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Models

Other payment options

At a Glance

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

    • Rugged construction. Resists corrosion for reliable performance and long life
    • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
    • Flow rates up to 300 gpm (1135 lpm)
    • Lube-free for cleaner operation
    • DataTrak™ available to prevent pump runaway and track material usage

    Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

    Applicable for:

    • Paints, stains, coatings, inks and dyes
    • Chemicals
    • Acids
    • Corrosive and abrasive fluids
    • Lubricants
    • Ceramic glazes
    • Sludge, slurry, and waste fluid
    • Soaps, detergents, and solvents

    Model List

    • 649384: Husky 1050 PVDF Pump, Center Flange, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
    • 649398: Husky 1050 PVDF Pump, End Flange, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
    • 312877EN-ZAG Graco Husky 1050 Air-Operated Diaphragm Pumps Manual
    • 313435EN-ZAR Graco Husky 1050 Air-Operated Diaphragm Pumps Repair Parts
    • Graco Husky 1050 Pumps Data Sheet
    • GO Data Sheet Graco Husky 1050
    TECHNICAL SPECIFICATIONS
    TYPE Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4
    AIR EXHAUST PORT THREAD GENDER Female
    AIR EXHAUST PORT THREAD TYPE NPT
    AIR INLET SIZE (IN) 1/2
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    APPLICATION Industrial
    BALL MATERIAL PTFE
    CENTER SECTION MATERIAL Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
    FLUID INLET SIZE (CM) 2.54
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID OUTLET SIZE (CM) 2.54
    FLUID OUTLET SIZE (IN) 1
    FLUID OUTLET SIZE (MM) 25.4
    FLUID SECTION MATERIAL PVDF (Kynar)
    MANIFOLD CONFIGURATION Center Port [649384] End Port [649398]
    MANIFOLD O-RING MATERIAL PTFE
    MATERIAL PVDF
    MAXIMUM AIR CONSUMPTION (SCFM) 67
    MAXIMUM AIR PRESSURE (BAR) 8.6
    MAXIMUM AIR PRESSURE (KPA) 860
    MAXIMUM AIR PRESSURE (PSI) 125
    MAXIMUM CYCLE RATE (CPM) 280
    MAXIMUM FLOW RATE (GPM) 50
    MAXIMUM FLOW RATE (L/MIN) 189
    MAXIMUM FLUID PRESSURE (BAR) 8.6
    MAXIMUM FLUID PRESSURE (KPA) 860
    MAXIMUM FLUID PRESSURE (PSI) 125
    MAXIMUM OPERATING TEMPERATURE (°C) 104
    MAXIMUM OPERATING TEMPERATURE (°F) 220
    MAXIMUM SOLID SIZE (CM) 0.3175
    MAXIMUM SOLID SIZE (IN) 0.125
    MAXIMUM SOLID SIZE (MM) 3.175
    MODEL Husky
    OVERALL HEIGHT (IN) 17.8
    POWER SOURCE Air
    SEAT MATERIAL PVDF (Kynar)
    SERIES 1050
    STANDARDS MET CE
    WEIGHT (LB) 26
    WETTED MATERIAL PVDF, Polypropylene, PTFE/EPDM
    MAXIMUM FLUID PRESSURE (MPA) 0.86
    MAXIMUM AIR PRESSURE (MPA) 0.86
    CONNECTION TYPE Center Flange ANSI/DIN [649384] End Flange ANSI/DIN [649398]
    DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

    • Longer Diaphragm Life. Up to 5x longer diaphragm life for less maintenance and downtime

    • Modular Air Valve. Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section. Eliminates air leaks for more efficient operation

    • Four Bolt Joint Design. Bolted design provides even sealing pressure for leak-free operation

    • Multiple Ports. Increased number of ports for installation flexibility

    • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
    • 30% more efficient than the market leader
    • 20% increase in fluid flow compared to the Husky 1040
    • Optional Features
      • DataTrak™ - Runaway protection and tracks material usage
      • Pulse Output - Cycle count capability
    View full details
