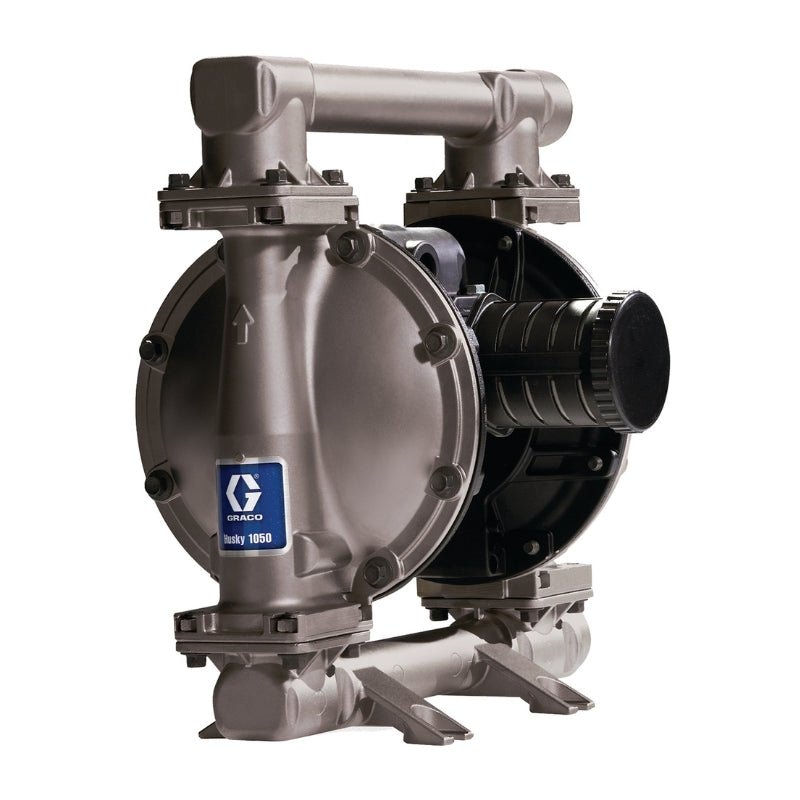

Graco Husky® 1050 Stainless Steel Air-Operated Diaphragm Pump
  • Graco Husky® 1050 Stainless Steel Air-Operated Diaphragm Pump
1 1

GRACO Husky 1050 Stainless Steel Air-Operated Diaphragm Pump

SKU: 651032

GRACO Husky 1050 Stainless Steel Air-Operated Diaphragm Pump

$5,599.00 AUD
$5,599.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Models

Other payment options

View full details
Graco Husky® 1050 Stainless Steel Air-Operated Diaphragm Pump

GRACO Husky 1050 Stainless Steel Air-Operated Diaphragm Pump

$5,599.00 AUD
$5,599.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • 651032: Husky 1050 SS 1 in. (25.4 mm) BSPT Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

Features

  • Longer Diaphragm Life. Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve. Stall-free, low pulsation operation provides smooth and rapid changeover

  • One-Piece Center Section. Eliminates air leaks for more efficient operation

  • Four Bolt Joint Design. Bolted design provides even sealing pressure for leak-free operation

  • Multiple Ports. Increased number of ports for installation flexibility

  • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
  • 30% more efficient than the market leader
  • 20% increase in fluid flow compared to the Husky 1040
  • Optional Features
    • DataTrak™ - Runaway protection and tracks material usage
    • Pulse Output - Cycle count capability

Graco Husky 1050 Stainless Steel Air-Operated Diaphragm Pump

Overview



The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • 312877EN-ZAG Graco Husky 1050 Air-Operated Diaphragm Pumps Manual
    • 313435EN-ZAR Graco Husky 1050 Air-Operated Diaphragm Pumps Repair Parts
    • Graco Husky 1050 Pumps Data Sheet
    • GO Data Sheet Graco Husky 1050

    Specifications

    TYPE Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4
    AIR EXHAUST PORT THREAD GENDER Female
    AIR EXHAUST PORT THREAD TYPE NPT
    AIR INLET SIZE (IN) 1/2
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    APPLICATION Industrial
    BALL MATERIAL PTFE
    CENTER SECTION MATERIAL Aluminum
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
    FLUID INLET SIZE (CM) 2.54
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID INLET THREAD TYPE BSPT
    FLUID OUTLET SIZE (CM) 2.54
    FLUID OUTLET SIZE (IN) 1
    FLUID OUTLET SIZE (MM) 25.4
    FLUID OUTLET THREAD TYPE BSPT
    FLUID SECTION MATERIAL Stainless Steel
    MANIFOLD CONFIGURATION Center Port, End Port
    MANIFOLD O-RING MATERIAL PTFE
    MATERIAL Stainless Steel
    MAXIMUM AIR CONSUMPTION (SCFM) 67
    MAXIMUM AIR PRESSURE (BAR) 8.6
    MAXIMUM AIR PRESSURE (KPA) 860
    MAXIMUM AIR PRESSURE (PSI) 125
    MAXIMUM CYCLE RATE (CPM) 280
    MAXIMUM FLOW RATE (GPM) 50
    MAXIMUM FLOW RATE (L/MIN) 189
    MAXIMUM FLUID PRESSURE (BAR) 8.6
    MAXIMUM FLUID PRESSURE (KPA) 860
    MAXIMUM FLUID PRESSURE (PSI) 125
    MAXIMUM OPERATING TEMPERATURE (°C) 82
    MAXIMUM OPERATING TEMPERATURE (°F) 180
    MAXIMUM SOLID SIZE (CM) 0.3175
    MAXIMUM SOLID SIZE (IN) 0.125
    MAXIMUM SOLID SIZE (MM) 3.175
    MODEL Husky
    OVERALL HEIGHT (IN) 13.7
    POWER SOURCE Air
    SEAT MATERIAL Stainless Steel
    SERIES 1050
    STANDARDS MET ATEX, CE
    WEIGHT (LB) 41.4
    WETTED MATERIAL Stainless Steel, Aluminum, PTFE/EPDM
    MAXIMUM FLUID PRESSURE (MPA) 0.86
    MAXIMUM AIR PRESSURE (MPA) 0.86
    CONNECTION TYPE Threaded
    DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

      Features

      • Longer Diaphragm Life. Up to 5x longer diaphragm life for less maintenance and downtime

      • Modular Air Valve. Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section. Eliminates air leaks for more efficient operation

      • Four Bolt Joint Design. Bolted design provides even sealing pressure for leak-free operation

      • Multiple Ports. Increased number of ports for installation flexibility

      • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
      • 30% more efficient than the market leader
      • 20% increase in fluid flow compared to the Husky 1040
      • Optional Features
        • DataTrak™ - Runaway protection and tracks material usage
        • Pulse Output - Cycle count capability
