GRACO Husky 2150 AL Air - Operated Double Diaphragm Metal Pumps - GO Industrial - DF3525

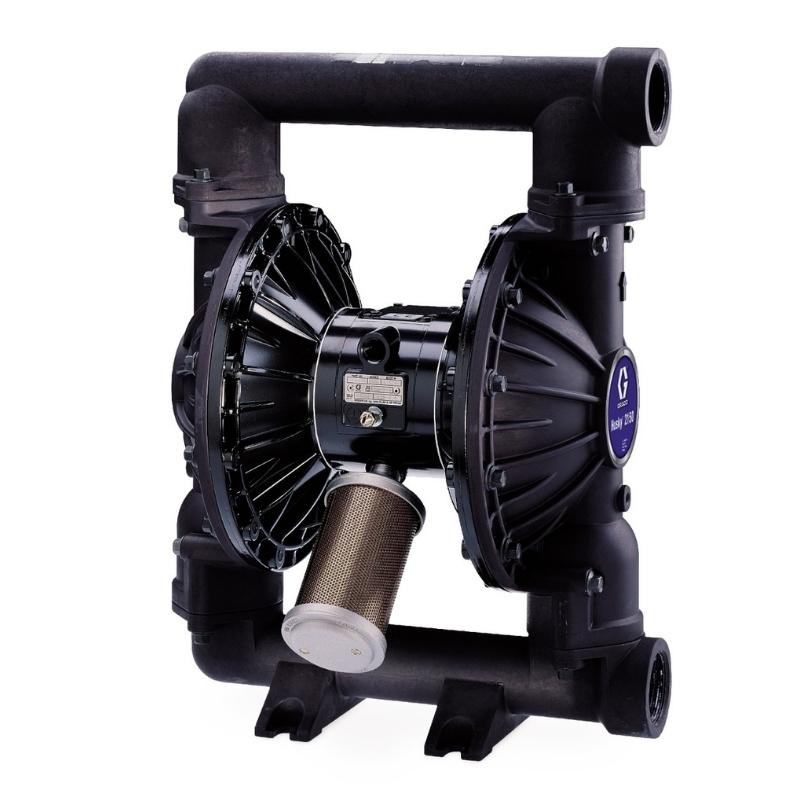

GRACO Husky 2150 AL Air-Operated Double Diaphragm Metal Pumps

SKU DF3525
Afterpay Zip PayPal LeaseGO
$4,650.00
Tax included. Shipping calculated at checkout.
Models
Quantity
Contact for pricing
In Stock, Victoria Warehouse

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

Built for the work it does.

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

    Features

    Features

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • 2 in. (51 mm) ANSI end-porting
  • Fluid flow up to 150 gpm (568 lpm)
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Epoxy-coated air section for tough environmental conditions
    • Specifications
    Technical Specifications SKU DF3525 SKU DFC525
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR INLET SIZE (IN) 1/2 1/2
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT NPT
    APPLICATION Industrial Industrial
    BALL MATERIAL Acetal Acetal
    CENTER SECTION MATERIAL Aluminum Aluminum
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL TPE TPE
    FLUID INLET SIZE (CM) 5.08 5.08
    FLUID INLET SIZE (IN) 2 2
    FLUID INLET SIZE (MM) 50.8 50.8
    FLUID INLET THREAD GENDER Female
    FLUID INLET THREAD TYPE NPT BSPT
    FLUID OUTLET SIZE (CM) 5.08 5.08
    FLUID OUTLET SIZE (IN) 2 2
    FLUID OUTLET SIZE (MM) 50.8 50.8
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT BSPT
    FLUID SECTION MATERIAL Aluminum Aluminum
    MANIFOLD CONFIGURATION End Port End Port
    MATERIAL Aluminum Aluminum
    MAXIMUM AIR CONSUMPTION (SCFM) 175 175
    MAXIMUM AIR PRESSURE (BAR) 8.27 8.27
    MAXIMUM AIR PRESSURE (KPA) 827 827
    MAXIMUM AIR PRESSURE (PSI) 120 120
    MAXIMUM CYCLE RATE (CPM) 145 145
    MAXIMUM FLOW RATE (GPM) 150 150
    MAXIMUM FLOW RATE (L/MIN) 568 568
    MAXIMUM FLUID PRESSURE (BAR) 8.27 8.27
    MAXIMUM FLUID PRESSURE (KPA) 827 827
    MAXIMUM FLUID PRESSURE (PSI) 120 120
    MAXIMUM OPERATING TEMPERATURE (°C) 66 66
    MAXIMUM OPERATING TEMPERATURE (°F) 150 150
    MAXIMUM SOLID SIZE (CM) 0.635 0.635
    MAXIMUM SOLID SIZE (IN) 0.25 0.25
    MAXIMUM SOLID SIZE (MM) 6.35 6.35
    MODEL Husky Husky
    POWER SOURCE Air Air
    SEAT MATERIAL TPE TPE
    SERIES 2150 2150
    MAXIMUM FLUID PRESSURE (MPA) 0.827 0.827
    MAXIMUM AIR PRESSURE (MPA) 0.827 0.827
    CONNECTION TYPE Threaded Threaded
    DIAPHRAGM COMPATIBLE MATERIAL TPE TPE


    Technical Specifications SKU DF3GGG SKU DFCGGG
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4 -
    AIR EXHAUST PORT THREAD GENDER Female -
    AIR EXHAUST PORT THREAD TYPE NPT -
    AIR INLET SIZE (IN) 1/2 1/2
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT NPT
    APPLICATION Industrial Industrial
    BALL MATERIAL Geolast Geolast
    CENTER SECTION MATERIAL Aluminum Aluminum
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL Geolast Geolast
    FLUID INLET SIZE (CM) 5.08 5.08
    FLUID INLET SIZE (IN) 2 2
    FLUID INLET SIZE (MM) 50.8 50.8
    FLUID INLET THREAD GENDER Female -
    FLUID INLET THREAD TYPE NPT BSPT
    FLUID OUTLET SIZE (CM) 5.08 5.08
    FLUID OUTLET SIZE (IN) 2 2
    FLUID OUTLET SIZE (MM) 50.8 50.8
    FLUID OUTLET THREAD GENDER Female -
    FLUID OUTLET THREAD TYPE NPT BSPT
    FLUID SECTION MATERIAL Aluminum Aluminum
    MANIFOLD CONFIGURATION End Port End Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL Aluminum Aluminum
    MAXIMUM AIR CONSUMPTION (SCFM) 175 175
    MAXIMUM AIR PRESSURE (BAR) 8 8.27
    MAXIMUM AIR PRESSURE (KPA) 800 827
    MAXIMUM AIR PRESSURE (PSI) 120 120
    MAXIMUM CYCLE RATE (CPM) 145 145
    MAXIMUM FLOW RATE (GPM) 150 150
    MAXIMUM FLOW RATE (L/MIN) 568 568
    MAXIMUM FLUID PRESSURE (BAR) 8 8.27
    MAXIMUM FLUID PRESSURE (KPA) 800 827
    MAXIMUM FLUID PRESSURE (PSI) 120 120
    MAXIMUM OPERATING TEMPERATURE (°C) 66 66
    MAXIMUM OPERATING TEMPERATURE (°F) 150 150
    MAXIMUM SOLID SIZE (CM) 0.635 0.635
    MAXIMUM SOLID SIZE (IN) 0.25 0.25
    MAXIMUM SOLID SIZE (MM) 6.35 6.35
    MODEL Husky Husky
    OVERALL HEIGHT (IN) 23.6 -
    POWER SOURCE Air Air
    SEAT MATERIAL Geolast Geolast
    SERIES 2150 2150
    WEIGHT (LB) 58 -
    WETTED MATERIAL Aluminum, Geolast, PTFE -
    MAXIMUM FLUID PRESSURE (MPA) 0.8 0.827
    MAXIMUM AIR PRESSURE (MPA) 0.8 0.827
    CONNECTION TYPE Threaded Threaded
    DIAPHRAGM COMPATIBLE Geolast Geolast
