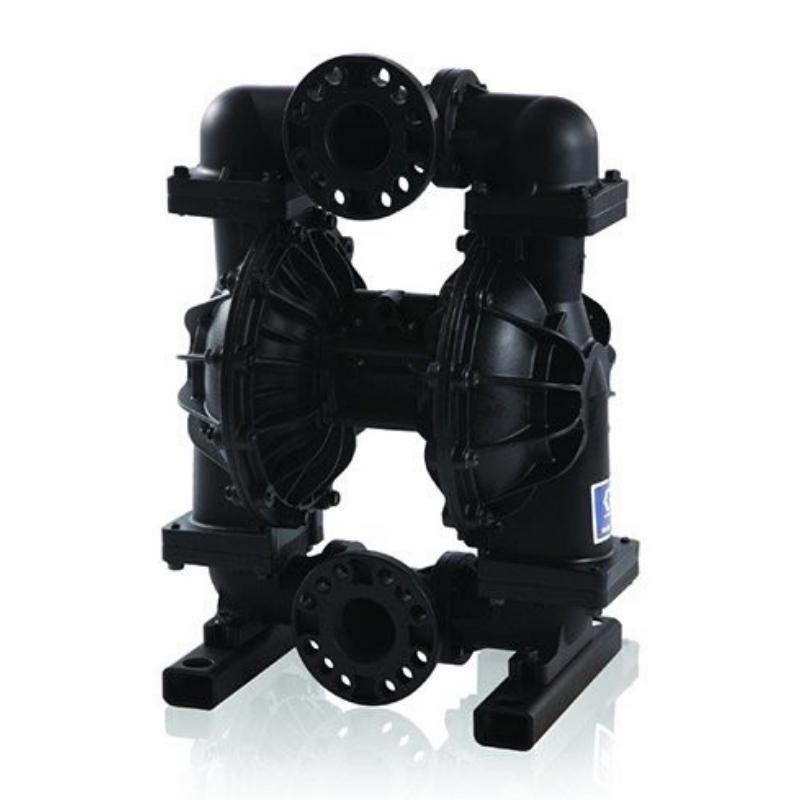

GRACO Husky 3300 Air-Operated Diaphragm Pumps

SKU: 652134

GRACO Husky 3300 Air-Operated Diaphragm Pumps

$8,745.00 AUD
$8,745.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Models

Other payment options

View full details
Graco Husky® 3300 Air-Operated Diaphragm Pump Range - GO Industrial

GRACO Husky 3300 Air-Operated Diaphragm Pumps

From $8,162.00 AUD
From $8,162.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • 652134: Husky 3300 (ANSI/DIN/BSPT) AL Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm
  • 652090: Husky 3300 (ANSI/DIN/BSPT) AL Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm
  • 652423: Husky 3300 PP Pump, PP Center Section, SP Seats, SP Balls & SP Diaphragm
  • 652404: Husky 3300 PP Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
  • 652856: Husky 3300 (3 in. BSPT) SS Pump, PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

Features

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • Offered in ATEX configuration.
  • Expanded material offering to handle numerous applications
  • Flow rates up to 300 gpm (1,135 lpm)
  • Modular stall-resistant air valve design
  • Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
  • Heavy-duty construction

    • Graco Husky 3300 Air-Operated Diaphragm Pumps

    Overview

    The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 3A0410EN-L Graco Husky 3300 Air-Operated Manual
      • 3A0411EN-T Graco Husky 3300 Air-Operated Repair and Parts Manual
      • Graco Husky 3300 Data Sheet - GO Industrial
      • GO Data Sheet Graco Husky 1050

      Specifications

      Technical Specifications SKU 652134 SKU 652090
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1 1
      AIR EXHAUST PORT THREAD GENDER Female Female
      AIR EXHAUST PORT THREAD TYPE NPT NPT
      AIR INLET SIZE (IN) 3/4 3/4
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT NPT
      APPLICATION Industrial Industrial
      BALL MATERIAL Geolast Acetal
      CENTER SECTION MATERIAL Aluminum Aluminum
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL Geolast TPE
      FLUID INLET SIZE (CM) 7.62 7.62
      FLUID INLET SIZE (IN) 3 3
      FLUID INLET SIZE (MM) 76.2 76.2
      FLUID INLET THREAD TYPE BSPT BSPT
      FLUID OUTLET SIZE (CM) 7.62 7.62
      FLUID OUTLET SIZE (IN) 3 3
      FLUID OUTLET SIZE (MM) 76.2 76.2
      FLUID OUTLET THREAD TYPE BSPT BSPT
      FLUID SECTION MATERIAL Aluminum Aluminum
      MANIFOLD CONFIGURATION Center Port Center Port
      MANIFOLD O-RING MATERIAL Buna-N Buna-N
      MATERIAL Aluminum Aluminum
      MAXIMUM AIR CONSUMPTION (SCFM) 335 335
      MAXIMUM AIR PRESSURE (BAR) 8.6 8.6
      MAXIMUM AIR PRESSURE (KPA) 860 860
      MAXIMUM AIR PRESSURE (PSI) 125 125
      MAXIMUM CYCLE RATE (CPM) 103 103
      MAXIMUM FLOW RATE (GPM) 300 300
      MAXIMUM FLOW RATE (L/MIN) 1136 1136
      MAXIMUM FLUID PRESSURE (BAR) 8.6 8.6
      MAXIMUM FLUID PRESSURE (KPA) 860 860
      MAXIMUM FLUID PRESSURE (PSI) 125 125
      MAXIMUM SOLID SIZE (CM) 1.27 1.27
      MAXIMUM SOLID SIZE (IN) 0.5 0.5
      MAXIMUM SOLID SIZE (MM) 12.7 12.7
      MINIMUM OPERATING TEMPERATURE (°C) 0 0
      MINIMUM OPERATING TEMPERATURE (°F) 32 32
      MINIMUM STORAGE TEMPERATURE (°C) 0 0
      MINIMUM STORAGE TEMPERATURE (°F) 32 32
      MODEL Husky Husky
      POWER SOURCE Air Air
      SEAT MATERIAL Geolast TPE
      SERIES 3300 3300
      WEIGHT (LB) 150 150
      MAXIMUM FLUID PRESSURE (MPA) 0.86 0.86
      MAXIMUM AIR PRESSURE (MPA) 0.86 0.86
      CONNECTION TYPE Center Flange ANSI/DIN, Threaded Center Flange ANSI/DIN, Threaded
      DIAPHRAGM_COMPATIBLE_MATERIAL Geolast TPE
      Technical Specifications SKU 652423 SKU 652404
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1 1
      AIR EXHAUST PORT THREAD GENDER Female Female
      AIR EXHAUST PORT THREAD TYPE NPT NPT
      AIR INLET SIZE (IN) 3/4 3/4
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT NPT
      APPLICATION Industrial Industrial
      BALL MATERIAL Santoprene PTFE
      CENTER SECTION MATERIAL Polypropylene Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL Santoprene PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 7.62 7.62
      FLUID INLET SIZE (IN) 3 3
      FLUID INLET SIZE (MM) 76.2 76.2
      FLUID OUTLET SIZE (CM) 7.62 7.62
      FLUID OUTLET SIZE (IN) 3 3
      FLUID OUTLET SIZE (MM) 76.2 76.2
      FLUID SECTION MATERIAL Polypropylene Polypropylene
      MANIFOLD CONFIGURATION Center Port Center Port
      MANIFOLD O-RING MATERIAL PTFE PTFE
      MATERIAL Polypropylene Polypropylene
      MAXIMUM AIR CONSUMPTION (SCFM) 275 275
      MAXIMUM AIR PRESSURE (BAR) 7 7
      MAXIMUM AIR PRESSURE (KPA) 700 700
      MAXIMUM AIR PRESSURE (PSI) 100 100
      MAXIMUM CYCLE RATE (CPM) 103 103
      MAXIMUM FLOW RATE (GPM) 280 280
      MAXIMUM FLOW RATE (L/MIN) 1060 1060
      MAXIMUM FLUID PRESSURE (BAR) 6.9 6.9
      MAXIMUM FLUID PRESSURE (KPA) 690 690
      MAXIMUM FLUID PRESSURE (PSI) 100 100
      MAXIMUM OPERATING TEMPERATURE (°C) 66 66
      MAXIMUM OPERATING TEMPERATURE (°F) 150 150
      MAXIMUM SOLID SIZE (CM) 1.27 1.27
      MAXIMUM SOLID SIZE (IN) 0.5 0.5
      MAXIMUM SOLID SIZE (MM) 12.7 12.7
      MINIMUM OPERATING TEMPERATURE (°C) 0 0
      MINIMUM OPERATING TEMPERATURE (°F) 32 32
      MINIMUM STORAGE TEMPERATURE (°C) 0 0
      MINIMUM STORAGE TEMPERATURE (°F) 32 32
      POWER SOURCE Air Air
      SEAT MATERIAL Santoprene Polypropylene
      STANDARDS MET CE CE
      WEIGHT (LB) 200 200
      WETTED MATERIAL - Polypropylene, PTFE/EPDM
      MAXIMUM FLUID PRESSURE (MPA) 0.7 0.7
      MAXIMUM AIR PRESSURE (MPA) 0.7 0.7
      CONNECTION TYPE Center Flange ANSI/DIN Center Flange ANSI/DIN
      DIAPHRAGM_COMPATIBLE_MATERIAL Santoprene PTFE


      Technical Specifications SKU 652856
      TYPE Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1
      AIR EXHAUST PORT THREAD GENDER Female
      AIR EXHAUST PORT THREAD TYPE NPT
      AIR INLET SIZE (IN) 3/4
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      APPLICATION Industrial
      BALL MATERIAL PTFE
      CENTER SECTION MATERIAL Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 7.62
      FLUID INLET SIZE (IN) 3
      FLUID INLET SIZE (MM) 76.2
      FLUID INLET THREAD TYPE BSPT
      FLUID OUTLET SIZE (CM) 7.62
      FLUID OUTLET SIZE (IN) 3
      FLUID OUTLET SIZE (MM) 76.2
      FLUID OUTLET THREAD TYPE BSPT
      FLUID SECTION MATERIAL Stainless Steel
      MANIFOLD CONFIGURATION Center Port
      MANIFOLD O-RING MATERIAL PTFE
      MATERIAL Stainless Steel
      MAXIMUM AIR CONSUMPTION (SCFM) 275
      MAXIMUM AIR PRESSURE (BAR) 7
      MAXIMUM AIR PRESSURE (KPA) 700
      MAXIMUM AIR PRESSURE (PSI) 100
      MAXIMUM CYCLE RATE (CPM) 103
      MAXIMUM FLOW RATE (GPM) 280
      MAXIMUM FLOW RATE (L/MIN) 1060
      MAXIMUM FLUID PRESSURE (BAR) 6.9
      MAXIMUM FLUID PRESSURE (KPA) 690
      MAXIMUM FLUID PRESSURE (PSI) 100
      MAXIMUM SOLID SIZE (CM) 1.27
      MAXIMUM SOLID SIZE (IN) 0.5
      MAXIMUM SOLID SIZE (MM) 12.7
      MINIMUM OPERATING TEMPERATURE (°C) 0
      MINIMUM OPERATING TEMPERATURE (°F) 32
      MINIMUM STORAGE TEMPERATURE (°C) 0
      MINIMUM STORAGE TEMPERATURE (°F) 32
      POWER SOURCE Air
      SEAT MATERIAL Stainless Steel
      STANDARDS MET CE
      WEIGHT (LB) 255
      MAXIMUM FLUID PRESSURE (MPA) 0.7
      MAXIMUM AIR PRESSURE (MPA) 0.7
      CONNECTION TYPE  Threaded
      PTFE


        Features

      • Overall improved efficiency (up to 40% more efficient)
      • Highest fluid flow rate in its class
      • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
      • Expanded material offering to handle endless applications
      • Offered in ATEX configuration.
      • Expanded material offering to handle numerous applications
      • Flow rates up to 300 gpm (1,135 lpm)
      • Modular stall-resistant air valve design
      • Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
      • Heavy-duty construction
