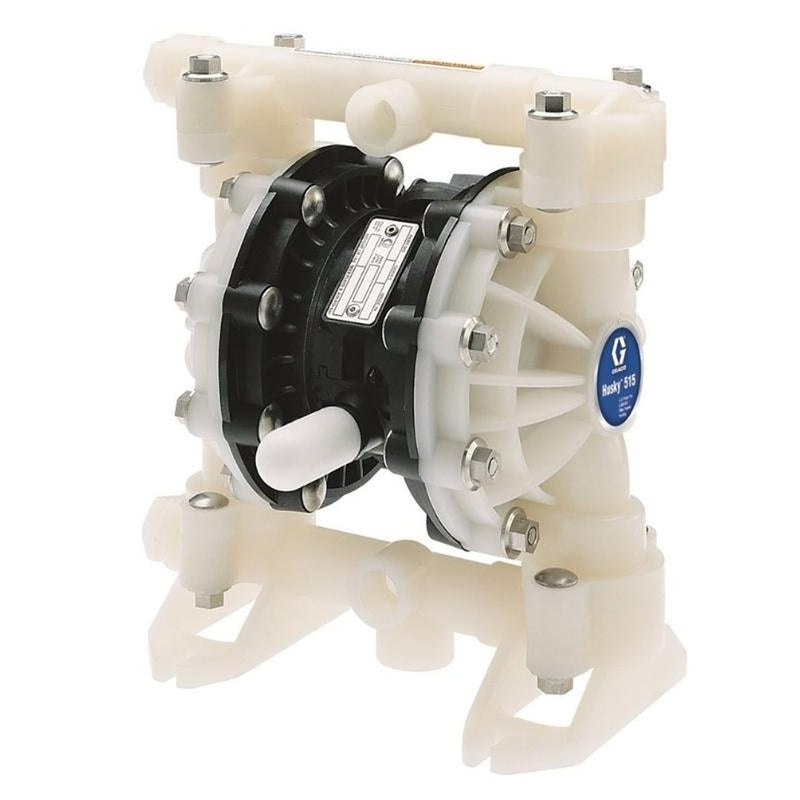

GRACO Husky 515 Air-Operated Double Diaphragm Pumps

Name: GRACO Husky 515 Air-Operated Double Diaphragm Pumps
Brand: Graco Australia Pty Ltd
SKU: D52966
Price: 1595.0 AUD
Availability: InStock

SKU: D52966

GRACO Husky 515 Air-Operated Double Diaphragm Pumps

$1,595.00 AUD

Save $0

Sold out

Inclusive of GST. Shipping calculated at checkout.

In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Models

D52966: Husky 515 PP NPT Pump - SP Diaphragm

D5B966: Husky 515 PP BSOPump - SP Diaphragm

D55A11: Husky 515 PVDF NPT Pump - PTFE Diaphragm

D5EA11: Husky 515 PVDF BSP Pump - PTFE Diaphragm

D51277: Husky 515 AC NPT Pump - BN Diaphragm

Product variants

Quantity

Other payment options

View full details

GRACO Husky 515 Air-Operated Double Diaphragm Pumps

From $1,595.00 AUD

$1,595.00

Sold out

Product variants

Details

Rugged construction. Resists corrosion for reliable performance and long life
Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
Flow rates up to 300 gpm (1135 lpm)
Lube-free for cleaner operation
DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

Paints, stains, coatings, inks and dyes
Chemicals
Acids
Corrosive and abrasive fluids
Lubricants
Ceramic glazes
Sludge, slurry, and waste fluid
Soaps, detergents, and solvents

Model List

D52966: Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm
D5B966: Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm
D55A11: Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
D5EA11: Husky 515 PVDF 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
D51277: Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, BN Balls & BN Diaphragm

Features

Center and end porting options.

No mechanical seals to cause fluid leaks or failures

Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels

Easy-to-service air valve and ball checks

Operates on as little as 20 psi (1.4 bar, 0.14 MPa)

Split manifold option to pump multiple fluids without mixing

Delivery up to 15 gpm (56.7 lpm)

Reliable air valve for years of dependable performance

Graco Husky 515 Air-Operated Double Diaphragm Pumps

Overview

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

308981EN-ZBA Graco Husky 716 Pumps Manual

GO Data Sheet Graco Husky 1050

GO Data Sheet Graco Husky 515 300570EN-K

Specifications

Technical Specifications	SKU D52966	SKU D5B966
TYPE	Pneumatic Diaphragm Pump	Pneumatic Diaphragm Pump
AIR EXHAUST PORT SIZE (IN)	3/8	3/8
AIR EXHAUST PORT THREAD GENDER	Female	Female
AIR EXHAUST PORT THREAD TYPE	NPT	NPT
AIR INLET SIZE (IN)	1/4	1/4
AIR INLET THREAD GENDER	Female	Female
AIR INLET THREAD TYPE	NPT	NPT
APPLICATION	Industrial	Industrial
BALL MATERIAL	Santoprene	Santoprene
CENTER SECTION MATERIAL	Polypropylene	Polypropylene
COMPATIBLE MATERIAL	Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink	Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
DIAPHRAGM MATERIAL	Santoprene	Santoprene
FLUID INLET SIZE (CM)	1.27	1.27
FLUID INLET SIZE (IN)	1/2	1/2
FLUID INLET SIZE (MM)	12.7	12.7
FLUID INLET THREAD TYPE	NPT	BSPT
FLUID OUTLET SIZE (CM)	1.27	1.27
FLUID OUTLET SIZE (IN)	1/2	1/2
FLUID OUTLET SIZE (MM)	12.7	12.7
FLUID OUTLET THREAD TYPE	NPT	BSPT
FLUID SECTION MATERIAL	Polypropylene	Polypropylene
MANIFOLD CONFIGURATION	Center Port	Center Port
MANIFOLD O-RING MATERIAL	PTFE	PTFE
MATERIAL	Polypropylene	Polypropylene
MAXIMUM AIR CONSUMPTION (SCFM)	28	28
MAXIMUM AIR PRESSURE (BAR)	7	7
MAXIMUM AIR PRESSURE (KPA)	700	700
MAXIMUM AIR PRESSURE (PSI)	100	100
MAXIMUM CYCLE RATE (CPM)	400	400
MAXIMUM FLOW RATE (GPM)	15	15
MAXIMUM FLOW RATE (L/MIN)	56.8	56.8
MAXIMUM FLUID PRESSURE (BAR)	7	7
MAXIMUM FLUID PRESSURE (KPA)	700	700
MAXIMUM FLUID PRESSURE (PSI)	100	100
MAXIMUM OPERATING TEMPERATURE (°C)	66	82
MAXIMUM OPERATING TEMPERATURE (°F)	150	180
MAXIMUM SOLID SIZE (CM)	0.2383	0.2383
MAXIMUM SOLID SIZE (IN)	0.09375	0.09375
MAXIMUM SOLID SIZE (MM)	2.383	2.383
MINIMUM OPERATING TEMPERATURE (°C)	4	4
MINIMUM OPERATING TEMPERATURE (°F)	40	40
MODEL	Husky	Husky
OVERALL HEIGHT (IN)	10.63	10.63
POWER SOURCE	Air	Air
SEAT MATERIAL	Polypropylene	Polypropylene
SERIES	515	515
WEIGHT (LB)	6.5	6.5
WETTED MATERIAL	-	Polypropylene, Santoprene, PTFE
MAXIMUM FLUID PRESSURE (MPA)	0.7	0.7
MAXIMUM AIR PRESSURE (MPA)	0.7	0.7

Technical Specifications	SKU D55A11	SKU D5EA11
TYPE	Pneumatic Diaphragm Pump	Pneumatic Diaphragm Pump
AIR EXHAUST PORT SIZE (IN)	3/8	3/8
AIR EXHAUST PORT THREAD GENDER	Female	Female
AIR EXHAUST PORT THREAD TYPE	NPT	NPT
AIR INLET SIZE (IN)	1/4	1/4
AIR INLET THREAD GENDER	Female	Female
AIR INLET THREAD TYPE	NPT	NPT
APPLICATION	Industrial	Industrial
BALL MATERIAL	PTFE	PTFE
CENTER SECTION MATERIAL	Polypropylene	Polypropylene
COMPATIBLE MATERIAL	Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink	Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
DIAPHRAGM MATERIAL	PTFE/EPDM 2-Piece	PTFE/EPDM 2-Piece
FLUID INLET SIZE (CM)	1.27	1.27
FLUID INLET SIZE (IN)	1/2	1/2
FLUID INLET SIZE (MM)	12.7
FLUID INLET THREAD GENDER	Female
FLUID INLET THREAD TYPE	NPT	BSPT
FLUID OUTLET SIZE (CM)	1.27	12.7
FLUID OUTLET SIZE (IN)	1/2	1/2
FLUID OUTLET SIZE (MM)	12.7	12.7
FLUID OUTLET THREAD GENDER	Female
FLUID OUTLET THREAD TYPE	NPT	BSPT
FLUID SECTION MATERIAL	PVDF	PVDF
MANIFOLD CONFIGURATION	Center Port	Center Port
MANIFOLD O-RING MATERIAL	PTFE	PTFE
MATERIAL	PVDF	PVDF
MAXIMUM AIR CONSUMPTION (SCFM)	28	28
MAXIMUM AIR PRESSURE (BAR)	7	7
MAXIMUM AIR PRESSURE (KPA)	700	700
MAXIMUM AIR PRESSURE (PSI)	100	100
MAXIMUM CYCLE RATE (CPM)	400	400
MAXIMUM FLOW RATE (GPM)	15	15
MAXIMUM FLOW RATE (L/MIN)	56.8	56.8
MAXIMUM FLUID PRESSURE (BAR)	7	7
MAXIMUM FLUID PRESSURE (KPA)	700	700
MAXIMUM FLUID PRESSURE (PSI)	100	100
MAXIMUM OPERATING TEMPERATURE (°C)	107	104
MAXIMUM OPERATING TEMPERATURE (°F)	225	220
MAXIMUM SOLID SIZE (CM)	0.2383	0.2383
MAXIMUM SOLID SIZE (IN)	0.09375	0.09375
MAXIMUM SOLID SIZE (MM)	2.383	2.383
MINIMUM OPERATING TEMPERATURE (°C)	4	4
MINIMUM OPERATING TEMPERATURE (°F)	40	40
MODEL	Husky	Husky
OVERALL HEIGHT (IN)	10.63	10.63
POWER SOURCE	Air	Air
SEAT MATERIAL	PVDF	PVDF
SERIES	515	515
WEIGHT (LB)	8.5	8.5
WETTED MATERIAL	-	PVDF, Polypropylene, PTFE/EPDM
MAXIMUM FLUID PRESSURE (MPA)	0.7	0.7
MAXIMUM AIR PRESSURE (MPA)	0.7	0.7

Technical Specifications	SKU D51277
TYPE	Pneumatic Diaphragm Pump
AIR EXHAUST PORT SIZE (IN)	3/8
AIR EXHAUST PORT THREAD GENDER	Female
AIR EXHAUST PORT THREAD TYPE	NPT
AIR INLET SIZE (IN)	1/4
AIR INLET THREAD GENDER	Female
AIR INLET THREAD TYPE	NPT
APPLICATION	Industrial
BALL MATERIAL	Buna
CENTER SECTION MATERIAL	Polypropylene
COMPATIBLE MATERIAL	Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
DIAPHRAGM MATERIAL	Buna
FLUID INLET SIZE (CM)	1.27
FLUID INLET SIZE (IN)	1/2
FLUID INLET SIZE (MM)	12.7
FLUID INLET THREAD GENDER	Female
FLUID INLET THREAD TYPE	NPT
FLUID OUTLET SIZE (CM)	1.27
FLUID OUTLET SIZE (IN)	1/2
FLUID OUTLET SIZE (MM)	12.7
FLUID OUTLET THREAD GENDER	Female
FLUID OUTLET THREAD TYPE	NPT
FLUID SECTION MATERIAL	Acetal
MANIFOLD CONFIGURATION	Center Port
MANIFOLD O-RING MATERIAL	PTFE
MATERIAL	Acetal
MAXIMUM AIR CONSUMPTION (SCFM)	28
MAXIMUM AIR PRESSURE (BAR)	7
MAXIMUM AIR PRESSURE (KPA)	700
MAXIMUM AIR PRESSURE (PSI)	100
MAXIMUM CYCLE RATE (CPM)	400
MAXIMUM FLOW RATE (GPM)	15
MAXIMUM FLOW RATE (L/MIN)	56.8
MAXIMUM FLUID PRESSURE (BAR)	7
MAXIMUM FLUID PRESSURE (KPA)	700
MAXIMUM FLUID PRESSURE (PSI)	100
MAXIMUM OPERATING TEMPERATURE (°C)	82
MAXIMUM OPERATING TEMPERATURE (°F)	180
MAXIMUM SOLID SIZE (CM)	0.2383
MAXIMUM SOLID SIZE (IN)	0.09375
MAXIMUM SOLID SIZE (MM)	2.383
MINIMUM OPERATING TEMPERATURE (°C)	4
MINIMUM OPERATING TEMPERATURE (°F)	40
MODEL	Husky
OVERALL HEIGHT (IN)	10.63
POWER SOURCE	Air
SEAT MATERIAL	Acetal
SERIES	515
WEIGHT (LB)	7.8
MAXIMUM FLUID PRESSURE (MPA)	0.7
MAXIMUM AIR PRESSURE (MPA)	0.7

Features

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Reliable air valve for years of dependable performance
