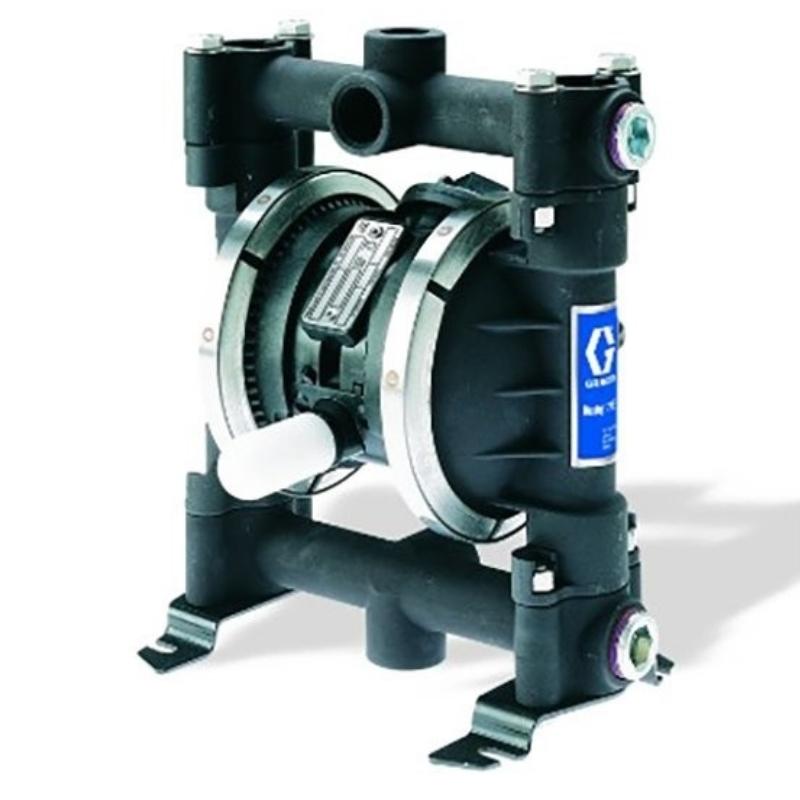

GRACO Husky 716 Aluminum Air Operated Diaphragm Pumps
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.
Features
Features
Specifications
| TECHNICAL SPECIFICATIONS | |
| TYPE | Pneumatic Diaphragm Pump |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| APPLICATION | Industrial |
| BALL MATERIAL | PTFE [D5C211, D53311, D53311] Buna-N [D5C277] |
| CENTER SECTION MATERIAL | Polypropylene |
| COMPATIBLE MATERIAL | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| DIAPHRAGM MATERIAL | PTFE/EPDM 2-Piece [D5C211, D53311, D53311] Buna-N [D5C277] |
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD GENDER | Female [D53311] |
| FLUID INLET THREAD TYPE | BSPT [D5C211, D53311, D5C277] |
| FLUID OUTLET SIZE (CM) | 1.905 |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET SIZE (MM) | 19.05 |
| FLUID OUTLET THREAD GENDER | Female [D53311] |
| FLUID OUTLET THREAD TYPE | BSPT [D5C211, D53311, D5C277] |
| FLUID SECTION MATERIAL | Aluminum |
| MANIFOLD CONFIGURATION | Center Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MATERIAL | Aluminum |
| MAXIMUM AIR CONSUMPTION (SCFM) | 28 |
| MAXIMUM AIR PRESSURE (BAR) | 6.9 |
| MAXIMUM AIR PRESSURE (KPA) | 690 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM CYCLE RATE (CPM) | 400 |
| MAXIMUM FLOW RATE (GPM) | 16 |
| MAXIMUM FLOW RATE (L/MIN) | 60.6 |
| MAXIMUM FLUID PRESSURE (BAR) | 6.9 |
| MAXIMUM FLUID PRESSURE (KPA) | 690 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 107 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 225 |
| MAXIMUM SOLID SIZE (CM) | 0.2383 |
| MAXIMUM SOLID SIZE (IN) | 0.09375 |
| MAXIMUM SOLID SIZE (MM) | 2.383 |
| MINIMUM OPERATING TEMPERATURE (°C) | 4 |
| MINIMUM OPERATING TEMPERATURE (°F) | 40 |
| MODEL | Husky |
| POWER SOURCE | Air |
| SEAT MATERIAL | Acetal [D5C211, D5C277] Stainless Steel [D53311, D53311] |
| SERIES | 716 |
| STANDARDS MET | ATEX, CE |
| WEIGHT (LB) | 8.5 |
| MAXIMUM FLUID PRESSURE (MPA) | 0.69 |
| MAXIMUM AIR PRESSURE (MPA) | 0.69 |
| CONNECTION TYPE | Threaded |
| DIAPHRAGM_COMPATIBLE_MATERIAL | PTFE [D5C211, D53311, D53311] Buna [D5C277] |
