GRACO Husky 716 Stainless Steel Air Operated Diaphragm Pump - GO Industrial - D5D311
  • GRACO Husky 716 Stainless Steel Air Operated Diaphragm Pump - GO Industrial - D5D311
1 1

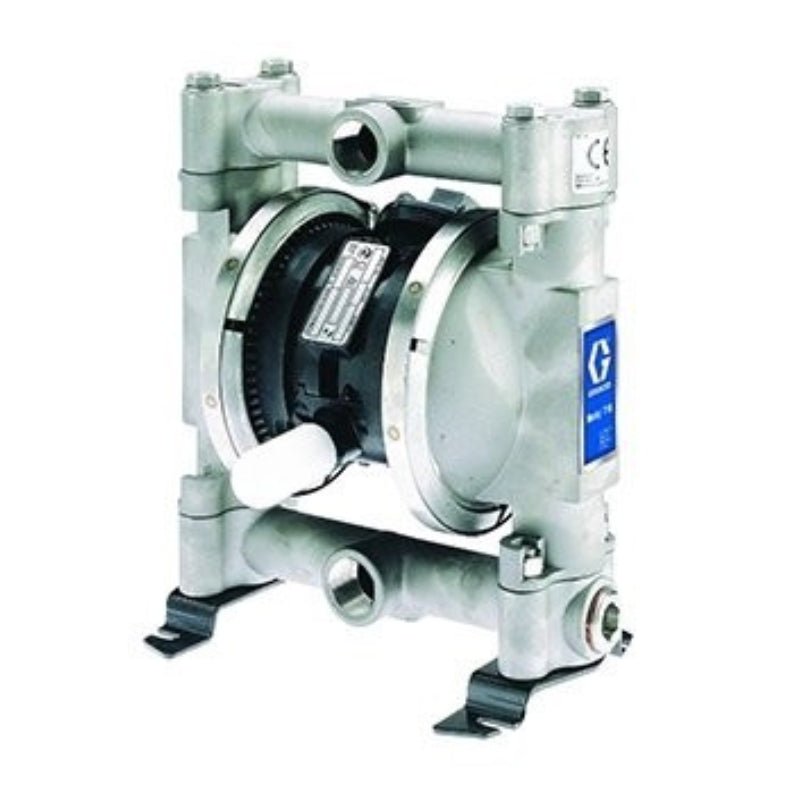

GRACO Husky 716 Stainless Steel Air Operated Diaphragm Pump

SKU: D5D311

GRACO Husky 716 Stainless Steel Air Operated Diaphragm Pump

$4,301.00 AUD
$4,301.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Model

Other payment options

View full details
GRACO Husky 716 Stainless Steel Air Operated Diaphragm Pump - GO Industrial - D5D311

GRACO Husky 716 Stainless Steel Air Operated Diaphragm Pump

$4,301.00 AUD
$4,301.00 AUD
Save $0
Sold out

Details

Applicable for:

Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

Model List

  • D5D311: Husky 716 SS Air Operated Double Diaphragm Metal Pump with BSP Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm

Features

  • Center- and end-porting
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks

    • Graco Husky 716 Stainless Steel Air Operated Diaphragm Pump

    Overview

    The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

    Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 308981EN-ZBA Graco Husky 716 Pumps Manual
      • Graco Husky 716 Pump Data Sheet
      • GO Data Sheet Graco Husky 1050

      Specifications

      TYPE Pneumatic Diaphragm Pump
      AIR INLET SIZE (IN) 1/4
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      APPLICATION Industrial
      BALL MATERIAL PTFE
      CENTER SECTION MATERIAL Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
      DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 1.905
      FLUID INLET SIZE (IN) 3/4
      FLUID INLET SIZE (MM) 19.05
      FLUID INLET THREAD TYPE BSPT
      FLUID OUTLET SIZE (CM) 1.905
      FLUID OUTLET SIZE (IN) 3/4
      FLUID OUTLET SIZE (MM) 19.05
      FLUID OUTLET THREAD TYPE BSPT
      FLUID SECTION MATERIAL Stainless Steel
      MANIFOLD CONFIGURATION Center Port
      MANIFOLD O-RING MATERIAL PTFE
      MATERIAL Stainless Steel
      MAXIMUM AIR CONSUMPTION (SCFM) 28
      MAXIMUM AIR PRESSURE (BAR) 6.9
      MAXIMUM AIR PRESSURE (KPA) 690
      MAXIMUM AIR PRESSURE (PSI) 100
      MAXIMUM CYCLE RATE (CPM) 400
      MAXIMUM FLOW RATE (GPM) 16
      MAXIMUM FLOW RATE (L/MIN) 60.6
      MAXIMUM FLUID PRESSURE (BAR) 6.9
      MAXIMUM FLUID PRESSURE (KPA) 690
      MAXIMUM FLUID PRESSURE (PSI) 100
      MAXIMUM OPERATING TEMPERATURE (°C) 107
      MAXIMUM OPERATING TEMPERATURE (°F) 225
      MAXIMUM SOLID SIZE (CM) 0.2383
      MAXIMUM SOLID SIZE (IN) 0.09375
      MAXIMUM SOLID SIZE (MM) 2.383
      MINIMUM OPERATING TEMPERATURE (°C) 4
      MINIMUM OPERATING TEMPERATURE (°F) 40
      MODEL Husky
      POWER SOURCE Air
      SEAT MATERIAL Stainless Steel
      SERIES 716
      STANDARDS MET ATEX, CE
      WEIGHT (LB) 18
      MAXIMUM FLUID PRESSURE (MPA) 0.69
      MAXIMUM AIR PRESSURE (MPA) 0.69
      CONNECTION TYPE Threaded
      DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

        Features

      • Center- and end-porting
      • No mechanical seals which causes fluid leaks or failures
      • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
      • Easy-to-service air valve and ball checks
      • 3/4 in (19.05 mm) center- and end-porting
      • No seals to leak or fail
      • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
      • Easy-to-service air valve and ball checks
