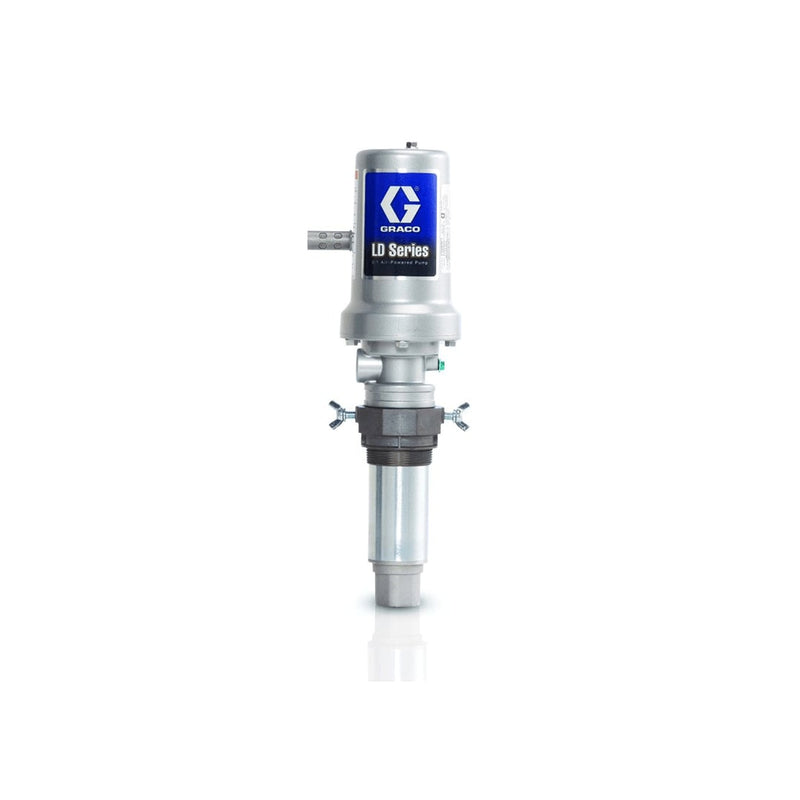

GRACO LD Pump 5:1 Oil Pumps
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
The Graco LD Series Pump range, from GO Industrial, offers amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. Graco LD Pumps have a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Specifications
| Air Inlet Size (in) | 1/4 |
|---|---|
| Application | Oil |
| Compatible Material | Oil |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1/2 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Working Pressure (MPa) | 5.2 |
| Maximum Working Pressure (psi) | 750 |
| Power Type | Pneumatic |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 7.7 |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (mm) | 6.35 |
| Application | Oil |
| Compatible Material | Oil |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Working Pressure (MPa) | 5.2 |
| Maximum Working Pressure (bar) | 51.7 |
| Maximum Working Pressure (kPa) | 5170 |
| Power Type | Pneumatic |
| Type | Pneumatic Piston Pump |
| Weight (kg) | 0.3496 |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
