Graco LD Pump Kit 180kg Drum 50:1 24J044

SKU: 24J044

$1,666

Graco LD Pump Kit 180kg Drum 50:1 24J044

  DATA SHEET
 OPERATORS MANUAL - PACKAGE
 OPERATORS MANUAL - PUMP
 REPAIR MANUAL - PUMP

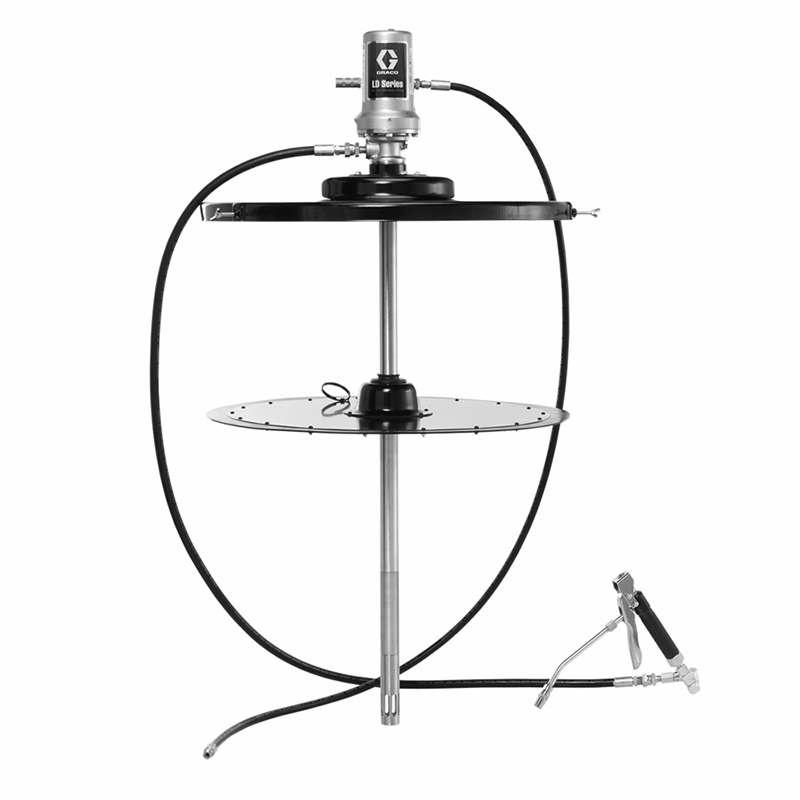

Kit Includes:

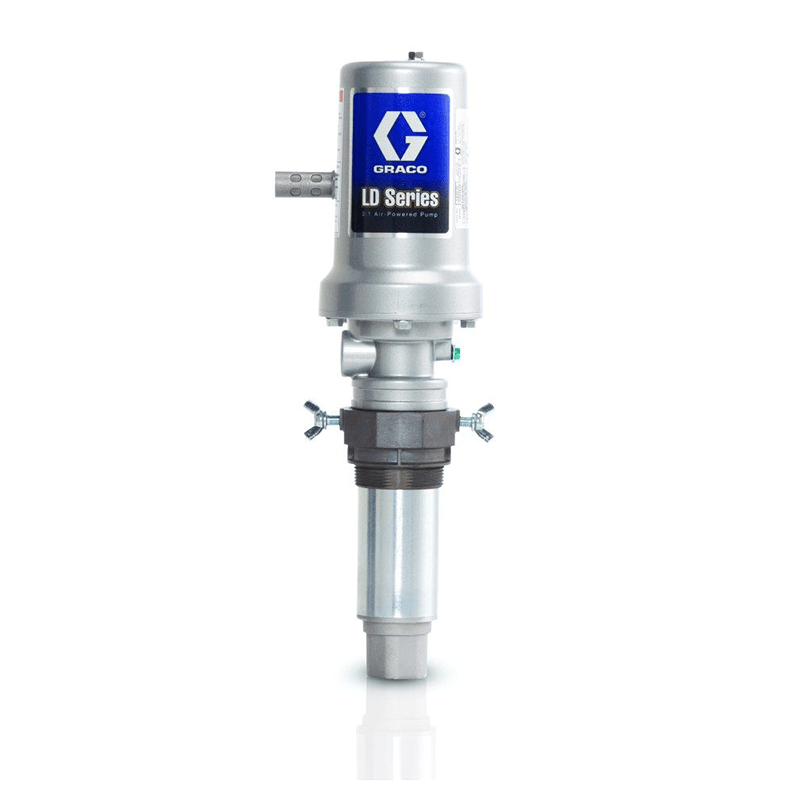

  • GRACO 180kg grease pump (24G608)
  • GRACO Grease Gun (24H400)
  • GRACO Fluid grease hose kit (24H863),
  • GRACO 180kg Follower plate (24F903),
  • GRACO 180kg Drum cover (24F906),
  • GRACO Z-swivel (24H614)

    Discover the Value of Graco LDSeries Pumps.  Stay ahead of the competition with the latest product solution from Graco Lubrication—the LD Series Pump.

    The affordable and full featured LD is designed for lower volume applications and is available in 3:1 and 5:1 for oil and 50:1 for grease. These pumps are fine-tuned for a compact, flexible and still incredibly durable solution.

    Only Graco can give you the field-proven performance found in the famous FireBall® pump for a solution that works as hard as you. Fast repairs, flexible configuration, industry leading warranty, and so many other field proven features are built-in—all at a competitive price.

    Pilot Valve

    • Patent-pending self cleaning design increases reliability in dirty air environments and minimises pressure drop with rapid changeovers for reduced stalling and smoother flow.

    5 Year Warranty

    • Industry leading Graco factory 5 year warranty

    Three Inch Air Motor

    • Provides more power to create better flow.

    Adjustable Bung Adapter Included

    • Built-in slide adjustment with easy-set hand screws is easier to fit into more applications.

    Engineered for Durability

    • Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

    NXT Air Valve

    • Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.

    Modular Air Valve

    • Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

    Built-In Thermal Relief and Inlet Strainer

    • Built-in thermal relief (oil only) protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

    Specifications

    LD Series Grease Models
    Maximum Fluid Working Pressure
    517 bar, 51.7 MPa
    Fluid Pressure Ratio
    50:1
    Air Operation Range
    1.37 to 10.3 bar, 0.137 to 1.03 MPa
    Air Consumption (at 100 psi)
    See performance curve in instruction manual 3A1334
    Pump Cycles per pound (cycles per kg)
    103 cycle/kg
    Maximum Recommended Pump Speed
    120 cycles/min
    Recommended Speed for Optimum Pump Life
    60 cycles/min or lower flow rate, 0.6 kg/min
    Wetted parts
    steel, brass, nitrile rubber, polyurethane, UHMWPE, acetal
    Sound Pressure Level, calculated at a distance of 1 meter from measurements taken per ISO 9614–2 @ 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minutes. Muffler 112933 can be ordered separately for reduced sound levels.
    72.9 dB(a)
    Sound Power Level, measured per ISO 9614–2 at 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minute. Muffler 112933 can be ordered separately for reduced sound levels.
    82.0 dB(a)
    Performance Curve
    See Chart in instruction manual 3A1334
    Approximate Weight
    35 lb drum – 5.1 kg, 120 lb drum – 6.8 kg, 400 lb drum – 7.7 kg
