The industry's first electric striper, the LineLazer ES 1000 is powered by a lithium battery and provides quiet, fume-free striping that is safe to use indoors while having the power and performance for outdoor jobs.

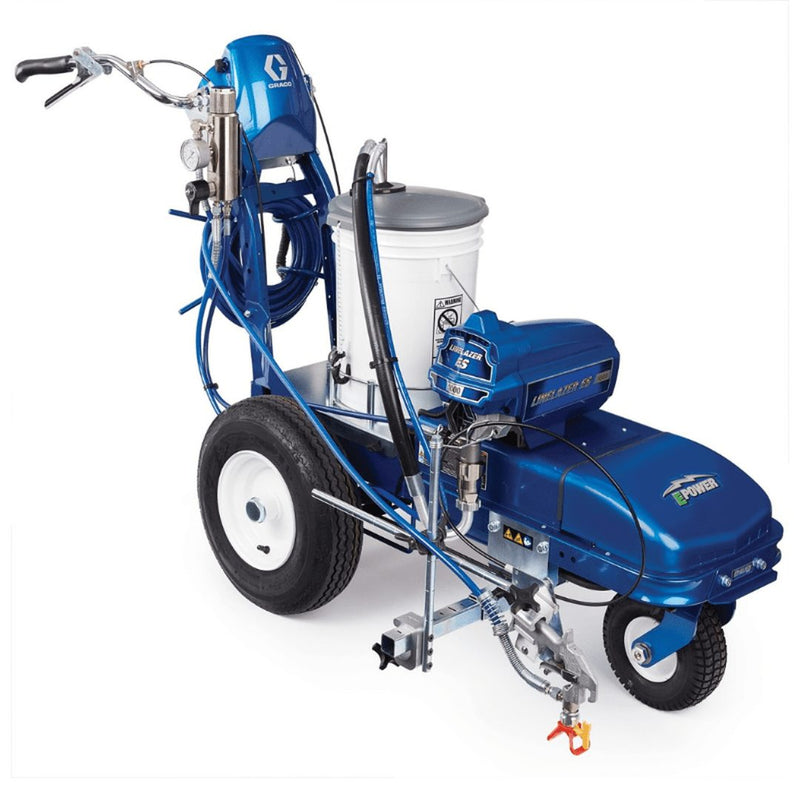

GRACO LineLazer ES 1000 Lithium Battery-Powered Airless Line Striper
SKU 25U675
$19,200.00
Tax included.
Shipping calculated at checkout.
Quantity
In Stock
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Frequently bought together
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Product details
Features
Features
New Lithium Battery
- 10X more recharges, 36 pounts lighter, and 50% more runtime than previous battery
- Bluetooth monitoring via smartphone app
- 3 Year Warranty
Onboard 120V Inverter/Charger
- Simple, Plug-in Charging
- 120V wall power for stationary applications
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Smart Control 2.5
- Consistent Spray Fan
- Eliminates pressure fluctuation for unmatched line quality
Fast Flush System
- Fast Cleaning Now Even FASTER
- Faster motor speed
- Clean the pump 4X faster with only ½ the water
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
Max Power DC Motor & Advantage Drive
- Maintenance-Free Power
- Field proven brushless design
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Additional Features
- Exclusive LineLazer Cart
- QuikSelect Gun Selector
- Easy Out Pump Filter
Specifications
| COMPATIBLE SURFACES: | Pavement, Turf |
| GUN ACTIVATION: | Manual |
| MAXIMUM FLOW RATE (GPM): | 0.6 |
| MAXIMUM FLOW RATE (L/MIN): | 2.3 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)): | 85.3 |
| MAXIMUM TIP SIZE (CM): | 0.0635 |
| MAXIMUM TIP SIZE (IN): | 0.025 |
| MAXIMUM TIP SIZE (MM): | 0.635 |
| MAXIMUM WORKING PRESSURE (BAR): | 227 |
| MAXIMUM WORKING PRESSURE (KPA): | 2270 |
| MAXIMUM WORKING PRESSURE (PSI): | 3300 |
| MODEL: | LineLazer |
| NUMBER OF COLORS: | One Color |
| NUMBER OF GUNS: | 1 |
| NUMBER OF PUMPS: | 1 |
| OVERALL HEIGHT (CM): | 113.03 |
| OVERALL HEIGHT (IN): | 44.5 |
| OVERALL HEIGHT (MM): | 1130.3 |
| OVERALL LENGTH (CM): | 174.63 |
| OVERALL LENGTH (IN): | 68.75 |
| OVERALL LENGTH (MM): | 1746.25 |
| OVERALL WIDTH (CM): | 87 |
| OVERALL WIDTH (IN): | 34.25 |
| OVERALL WIDTH (MM): | 870 |
| PUMP TYPE: | Endurance |
| SERIES: | ES 1000 |
| COMPATIBLE MATERIAL: | Road-Marking Paint |
| WEIGHT (KG): | 154 |
| WEIGHT (LB): | 340 |
| TYPE: | Walk-Behind Line Striper |
| POWER SOURCE: | Battery Powered |
