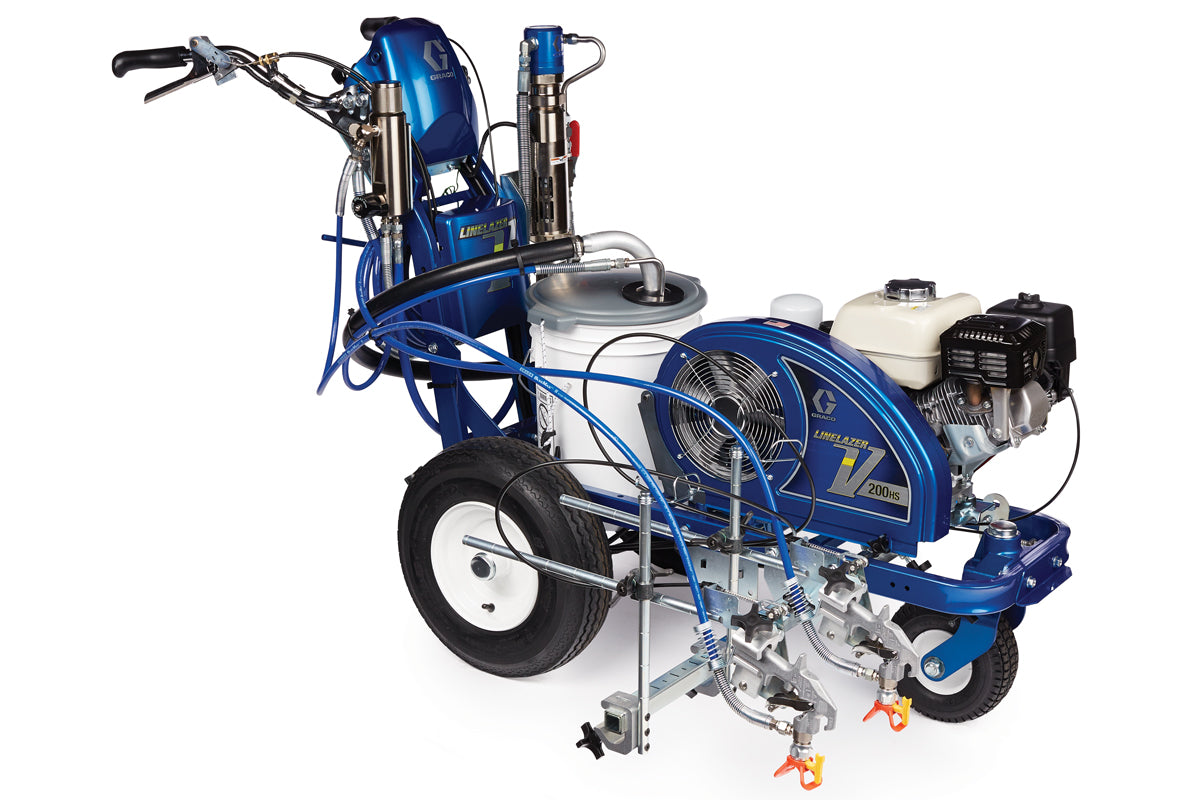

GRACO LineLazer V 200HS HP Automatic Series Airless Line Striper with Laser
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

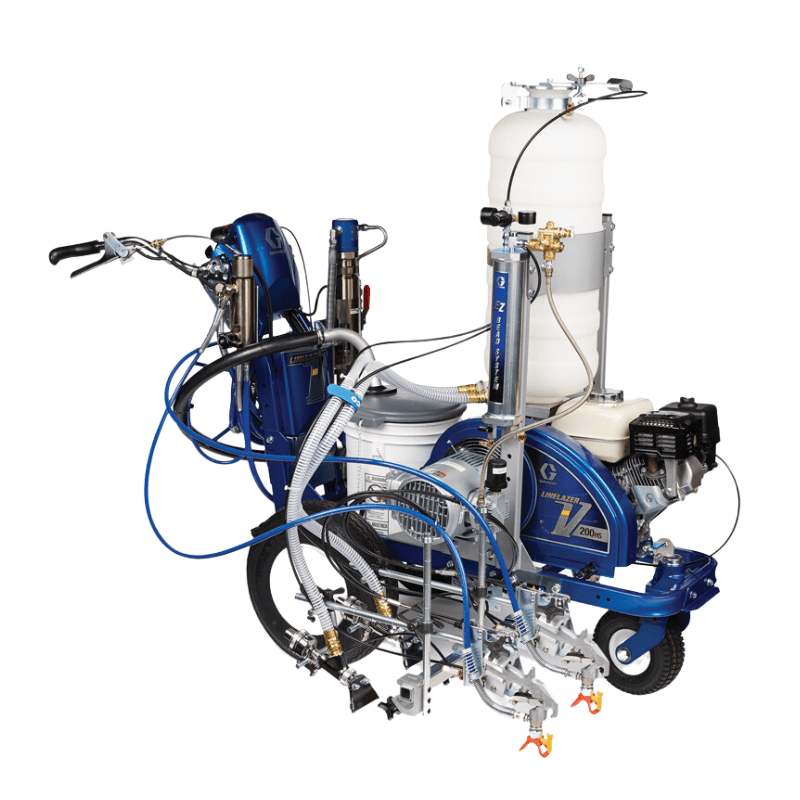

The LineLazer V 200HS is a petrol hydraulic airless line striper built for high performance striping on demanding jobs such as large car parks, airports and city streets that require precise lines. It is Graco's highest output push machine and can be fitted with a pressurised bead system for more effective bead application, and the hydraulic driven fluid pump gives longer pump life.
The HP Automatic Series adds automatic line production, including skip-lines, plus real-time job performance data for proof-of-job requirements. It comes with quick release automatically operated spray guns, a three wheel trolley with lock-in jockey wheel, the EasyMark gun adjustment system, an adjustable handlebar, a digital display with information storage, and green laser guidance.
Features
Automatic Paint Gun System: a solenoid driven system that automatically stripes skip-lines with push button line production to reduce operator fatigue.
Auto-Layout II: SmartControl measures while you walk and puts down pre-marks, removing the need for tape, string lines or aerosol cans and cutting layout time in half.
LiveLook Display with SmartControl: track, measure and control every aspect of the job, with proof-of-job data from the J-Log System and consistent spraying pressure.
J-Log System with USB Download: captures and saves job data for proof of job, with USB download capability.
Honda GX Engine: reliable, easy-to-start power with Oil Alert that shuts down the engine if the oil level drops too low.
EasyMark Gun Adjustment System: provides accurate gun alignment every time, with 2-gun capability through the QuikSelect gun selector.
EZ Align Wheel System: simple front wheel alignment with no special tools needed for perfect striper tracking.
DualComfort Handlebar System: easy handlebar adjustment for operator comfort.
Endurance Chromex Pump: a reliable, long-life pump with a rod treatment 4 times harder than ordinary chrome to handle demanding materials.
Additional Features: high-efficiency hydraulic motor, high-capacity cooling system, QuikSelect gun selector, Easy Out pump filter and LazerGuide 1700 start/stop laser.
Included accessories
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX200 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | 2 Automatic |
| INCLUDES | LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz |
| MAXIMUM FLOW RATE (GPM) | 2.15 |
| MAXIMUM FLOW RATE (L/MIN) | 8.14 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 86.5 |
| MAXIMUM TIP SIZE (CM) | 0.1194 |
| MAXIMUM TIP SIZE (IN) | 0.047 |
| MAXIMUM TIP SIZE (MM) | 1.194 |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF PUMPS | 1 |
| POWER RATING (HP) | 6.5 |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4850 |
| PUMP TYPE | Endurance |
| SERIES | 200HS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 146.1 |
| WEIGHT (LB) | 322 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| PRODUCT SERIES | HP Automatic |
| ATTACHMENTS | None |
Warranty
Manuals
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part1 3A3426EN-J
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part2 3A3426EN-J
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part3 3A3426EN-J
- GO Manual Parts Graco LineLazer V 200HS 200DC Airless Line Stripers 3A3390EN-H
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
