GRACO Merkur ES 30:1 Wall Mount Airless Package - GO Industrial - 24F154
GRACO Merkur ES 30:1 Wall Mount Airless Package - GO Industrial - 24F154
  • GRACO Merkur ES 30:1 Wall Mount Airless Package - GO Industrial - 24F154
  • GRACO Merkur ES 30:1 Wall Mount Airless Package - GO Industrial - 24F154
1 3

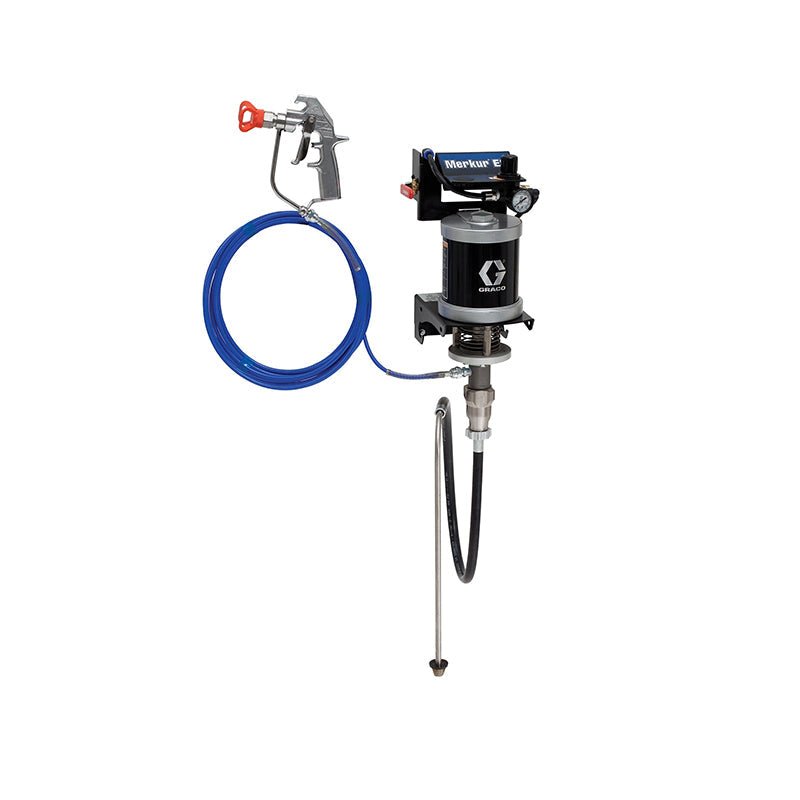

GRACO Merkur ES 30:1 Wall Mount Airless Package

SKU: 24F154

GRACO Merkur ES 30:1 Wall Mount Airless Package

$4,821.30 AUD
$4,821.30 AUD $5,676.00 AUD
Save $854.70
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
Configuration

Other payment options

View full details
GRACO Merkur ES 30:1 Wall Mount Airless Package - GO Industrial - 24F154

GRACO Merkur ES 30:1 Wall Mount Airless Package

From $4,821.30 AUD
From $4,821.30 AUD $5,676.00 AUD
Save $854.70
Sold out

Details

Product Range

  • 24F150 - Merkur ES 15:1 Wall Mounted Plated Steel G15 Gun Air Assist
  • 24F151 - Merkur ES 15:1 Stand Mounted Plated Steel G15 Gun Air Assist
  • 24F158 - Merkur ES 15:1 Wall Mounted Stainless Steel G15 Gun Air Assist
  • 24F159 - Merkur ES 15:1 Stand Mounted Stainless Steel G15 Gun Air Assist
  • 24F152 - Merkur ES 30:1 Wall Mounted Stainless Steel G40 Gun Air Assist
  • 24F153 - Merkur ES 30:1 Stand Mounted Stainless Steel G40 Gun Air Assist
  • 24F156 - Merkur ES 30:1 Wall Mounted Plated Steel G40 Gun Air Assist
  • 24F157 - Merkur ES 30:1 Stand Mounted Plated Steel G40 Gun Air Assist
  • 24F154 - Merkur ES 30:1 Wall Mounted Plated Steel Silver Plus Gun Airless
  • 24F155 - Merkur ES 30:1 Stand Mounted Plated Steel Silver Plus Gun Airless

Features

  • Quick flush system requires less than 1 minute to flush
  • 45% less material to fill the system than the leading competitors
  • Delivers a superior, consistent spray finish
  • Low profile spray package makes it easy to transport
  • Easily set and monitor air control, plus an integrated carrying handle for transport
  • Air motor provides consistent finishes with smooth, rapid changeover
  • Suction hose and strainer leaves less material in the supply container
  • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

    • Parts & Accessories

    • 24F271: Stainless Steel Inline Fluid Filter
    • 24F272: Plated Steel Inline Fluid Filter
    • 24F165: Plated Steel 25 ft (7.5 m) 1/8” ID Fluid Hose
    • 24F166: Stainless Steel 25 ft (7.5 m) 1/8” ID Fluid Hose
    • 24F147: Stainless Steel Suction Tube for 1 Gal (3.7 l) Pail
    • 24F148: For 5 Gal (18.9 l) Pail 3/8” OD Suction Hose

    Graco 30:1 Merkur ES Airless Package Wall Mount

    Overview

    • Air-Assist and Airless Spray Packages
    • Choose between air-assist and airless spray technologies in 15:1 or 30:1 ratios
    • The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet 344878EN-A Merkur ES Brochure
    • GO Data Sheet Merkur ES Parts Breakout 344893EN-A
    • GO Manual Graco Merkur ES 3A0732EN-M
    • Graco Merkur ES Hopper Kit Manual 334011EN-B
    • Graco PerformAA Spray Gun Manual 3A8099EN-B
    • Graco Brochure Merkur ES Air Assist and Airless Spray Packages 344878EN-F

    Specifications

    CONVERTIBLE Non-Convertible
    FLUID OUTLET SIZE (CM) 0.635
    FLUID OUTLET SIZE (IN) 1/4
    FLUID OUTLET SIZE (MM) 6.35
    FLUID OUTLET THREAD TYPE NPSM
    HOSE INLET DIAMETER (CM) 0.3175
    HOSE INLET DIAMETER (IN) 1/8
    HOSE INLET DIAMETER (MM) 3
    INCLUDES Silver Plus, Silver Plus Gun, Pistola Silver Plus, Silver Plus, Suction Hose, Wall Mount
    MAXIMUM FLOW RATE (GPM) 0.40
    MAXIMUM FLOW RATE (L/MIN) 1.5
    MAXIMUM HOSE LENGTH (FT) 25
    MAXIMUM HOSE LENGTH (M) 7.5
    MAXIMUM TIP SIZE (CM) 0.0483
    MAXIMUM TIP SIZE (IN) 0.019
    MAXIMUM TIP SIZE (MM) 0.4826
    MAXIMUM WORKING PRESSURE (PSI) 3000
    MAXIMUM WORKING PRESSURE (KPA) 20700
    POWER SOURCE Air
    MAXIMUM WORKING PRESSURE (MPA) 20.7
    MODEL Merkur
    MAXIMUM WORKING PRESSURE (BAR) 207
    WEIGHT (KG) 9
    WEIGHT (LB) 20
    SERIES ES
    PUMP TYPE Pneumatic Piston Pump
    TYPE Airless Sprayer
    SPRAY TYPE Airless
    MOTOR TYPE Pneumatic
    WETTED MATERIAL Stainless Steel, Carbon Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE
    NUMBER OF GUNS 1
    PRESSURE TYPE High Pressure
    MOUNT TYPE Wall Mount
    GUN TECHNOLOGY Airless
    GUN TYPE Airless
    GUN INCLUDED 1
    GUN MODEL Silver Plus Gun
    PUMP RATIO 30:1
    PRODUCT TYPE Spray Package



    Merkur ES Spray Packages
    Maximum Air Input Pressure
    7.0 bar, 0.7 MPa
    Maximum Fluid Temperature
    71°C
    Ambient Air Temperature Range
    2–49°C
    Package Air Inlet Size
    3/8 npt(f)
    Package Fluid Outlet Size
    1/4 npsm(m)
    Maximum Motor Speed
    240 cpm
    Maximum Spray Tip Orifice Size
    0.483 mm
    Maximum Fluid Working Pressure
    Models 24F150, 24F151, 24F158, 24F159
    103 bar, 10.3 MPa
    Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157
    207 bar, 20.7 MPa
    Ratio
    Models 24F150, 24F151, 24F158, 24F159
    15:1
    Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157
    30:1
    Sound Data
    24G693 Air Motor (Models 24F150, 24F151, 24F158, 24F159)
    Sound Power
    83.2 dBA
    Sound Pressure
    76.5 dBA
    24G694 Air Motor (Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157)
    Sound Power
    84.5 dBA
    Sound Pressure
    77.9 dBA
    Wetted Parts
    Models 24F150, 24F151, 24F154, 24F155, 24F156, 24F157
    Stainless steel, nickel plated carbon steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
    Models 24F152, 24F153, 24F158, 24F159
    Stainless steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
    Spray guns
    See applicable gun manual.
    Fluid hose
    Nylon, plated or stainless steel
    Suction assembly
    Stainless steel, nylon, acetal, fluoroelastomer, polyethylene

      Features

    • Quick flush system requires less than 1 minute to flush
    • 45% less material to fill the system than the leading competitors
    • Delivers a superior, consistent spray finish
    • Low profile spray package makes it easy to transport
    • Easily set and monitor air control, plus an integrated carrying handle for transport
    • Air motor provides consistent finishes with smooth, rapid changeover
    • Suction hose and strainer leaves less material in the supply container
    • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
