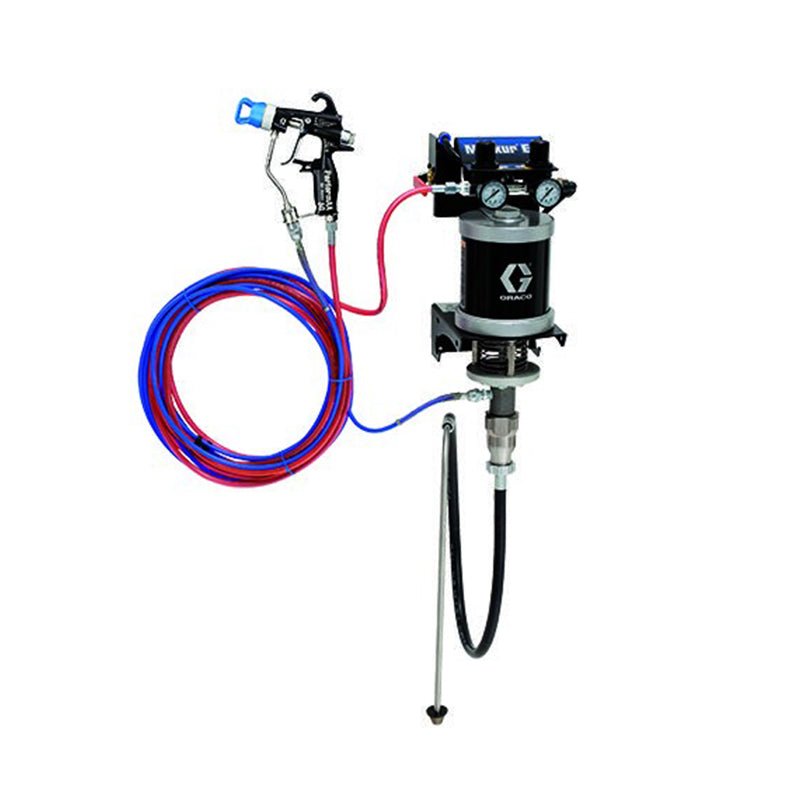

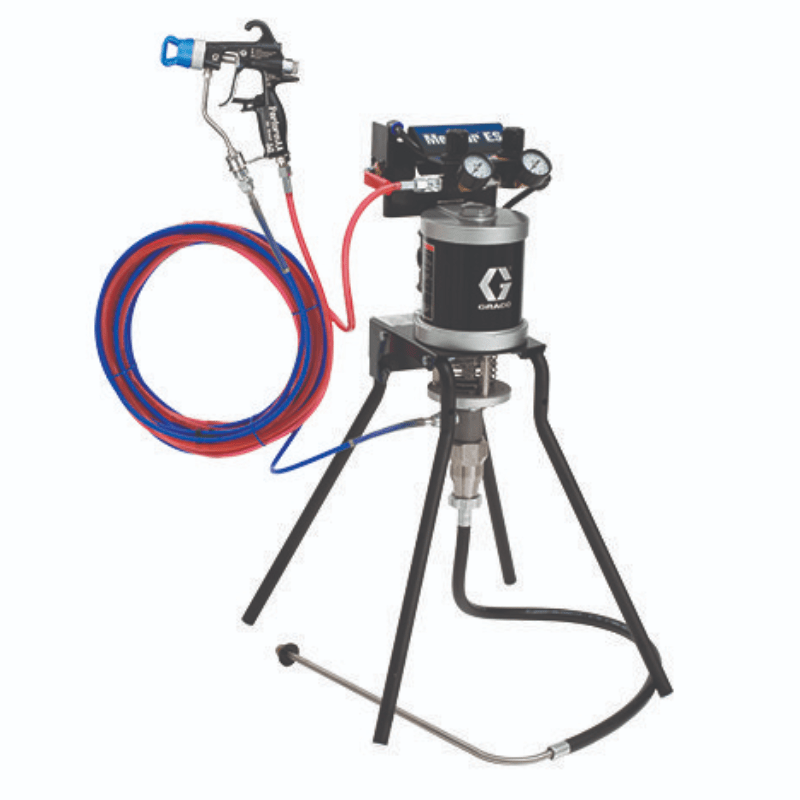

GRACO Merkur ES 30:1 Air Assisted Package
SKU 24F152
$7,430.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 30:1 Merkur ES Air Assisted Package
Overview
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID OUTLET SIZE (CM) | 0.635 |
| FLUID OUTLET SIZE (IN) | 1/4 |
| FLUID OUTLET SIZE (MM) | 6.35 |
| FLUID OUTLET THREAD TYPE | NPSM |
| HOSE INLET DIAMETER (CM) | 0.3175 |
| HOSE INLET DIAMETER (IN) | 0.125 |
| HOSE INLET DIAMETER (MM) | 3 |
| INCLUDES | G40, G40 Gun, Pistola G40, G40, Suction Hose, Wall Mount |
| MAXIMUM FLOW RATE (GPM) | 0.4 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.6 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 77.9 |
| MAXIMUM TIP SIZE (CM) | 0.0483 |
| MAXIMUM TIP SIZE (IN) | 0.019 |
| MAXIMUM TIP SIZE (MM) | 0.4826 |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MODEL | Merkur |
| MOTOR TYPE | Pneumatic |
| NUMBER OF GUNS | 1 |
| POWER SOURCE | Air |
| PUMP SLEEVE MATERIAL | Stainless Steel |
| PUMP TYPE | Pneumatic Piston Pump |
| SERIES | ES |
| WEIGHT (KG) | 10.4 |
| WEIGHT (LB) | 23 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| SPRAY TYPE | Air-Assisted |
| TYPE | Air-Assisted Airless Sprayer |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Wall Mount |
| PUMP RATIO | 30:1 |
| GUN TECHNOLOGY | Air-Assisted |
| GUN TYPE | Air-Assisted |
| GUN INCLUDED | 1 |
| PRODUCT TYPE | Spray Package |
| GUN MODEL | G40 |
Merkur ES Spray Packages |
|
| Maximum Air Input Pressure |
7.0 bar, 0.7 MPa
|
| Maximum Fluid Temperature |
71°C
|
| Ambient Air Temperature Range |
2–49°C
|
| Package Air Inlet Size |
3/8 npt(f)
|
| Package Fluid Outlet Size |
1/4 npsm(m)
|
| Maximum Motor Speed |
240 cpm
|
| Maximum Spray Tip Orifice Size |
0.483 mm
|
| Maximum Fluid Working Pressure | |
| Models 24F150, 24F151, 24F158, 24F159 |
103 bar, 10.3 MPa
|
| Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157 |
207 bar, 20.7 MPa
|
| Ratio | |
| Models 24F150, 24F151, 24F158, 24F159 |
15:1
|
| Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157 |
30:1
|
| Sound Data | |
| 24G693 Air Motor (Models 24F150, 24F151, 24F158, 24F159) | |
| Sound Power |
83.2 dBA
|
| Sound Pressure |
76.5 dBA
|
| 24G694 Air Motor (Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157) | |
| Sound Power |
84.5 dBA
|
| Sound Pressure |
77.9 dBA
|
| Wetted Parts | |
| Models 24F150, 24F151, 24F154, 24F155, 24F156, 24F157 |
Stainless steel, nickel plated carbon steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
|
| Models 24F152, 24F153, 24F158, 24F159 |
Stainless steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
|
| Spray guns |
See applicable gun manual.
|
| Fluid hose |
Nylon, plated or stainless steel
|
| Suction assembly |
Stainless steel, nylon, acetal, fluoroelastomer, polyethylene
|
