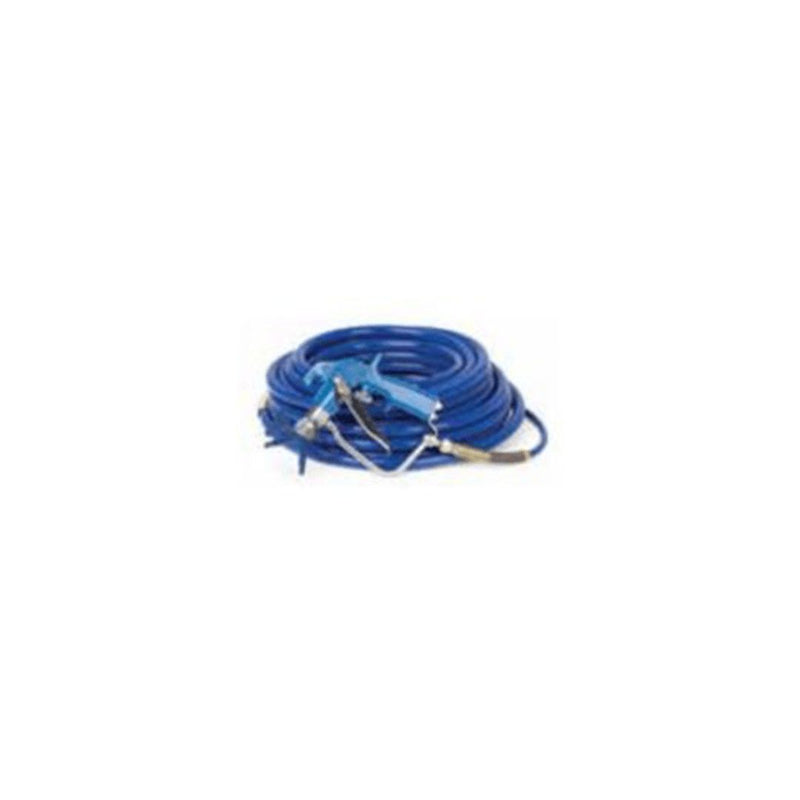

GRACO Spray Gun Airless HD Texture Gun Hose Kit 241338

GRACO Spray Gun Airless HD Texture Gun Hose Kit 241338

• Manual Airless Spray Gun, Hose and Tip Kit
• Great for hard-to-spray, high viscosity coatings
• The Heavy-Duty Texture Gun sprays up to 4000 psi (276 bar, 27.6 MPa) and is ideal for high pressure applications, including spraying airless plasters, tank linings and marine coatings

Includes

• Inline HD Texture Gun
• LTX643 SwitchTip
• 1/2" x 50' (13mm x 15m) 4000 psi hose,
• 3/8" x 12' (9.5mm x 3.6m) whip hose,
• swivel and fittings

Features

• Ergonomic handle reduces fatigue and increases comfort
• No spring in the fluid path to clog with material
• Patented needle design increases life
• Large fluid path reduces clogging
• Stainless steel fluid tube

Downloads

	DATA SHEET
	MANUAL

Specifications

Texture Airless Spray Gun
Fluid orifice size	3.2 mm
Inlet size	1/4 npt (m)
Fluid tube inside diameter	6.2 mm
Sound Data:
Sound Pressure Level	84 dB(A)*
Sound Power Level	93 dB(A)*
*Measured while spraying waterbase paint through a .031 tip at 3,000 psi (207 bar, 20.7 MPa). Per ISO 3744.
Wetted parts	Tungsten carbide, 17--4PH passivated stainless steel, polypropylene, polyethylene
LoctiteR is a registered trademark of the Loctite Corporation
