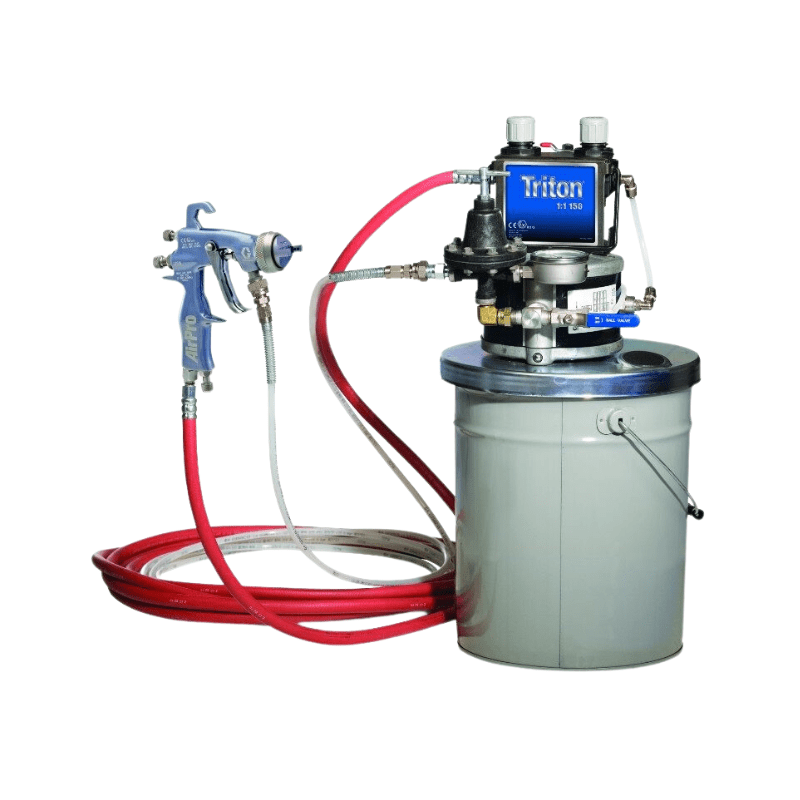

GRACO Triton Alum Spray Package AirPro Conventional Gun

SKU: 233468

GRACO Triton Alum Spray Package AirPro Conventional Gun

$3,751.00 AUD
$3,751.00 AUD
Inclusive of GST. Shipping calculated at checkout.
tags

Found a better deal elsewhere?

Message us to price match.

close

Price Match Request

Upload Screenshot / Image

your image
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Configuration

Other payment options

Graco Triton Alum Spray Package AirPro Conventional Gun

Overview

  • Fine Finish Spray Packages
  • Apply a high quality, decorative finish to wood and metal parts with this double diaphragm pump package
  • Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts.

Details

Package Includes

  • 233500 - Aluminium Triton Pump
  • 197298 - Pail Cover
  • 101108 - 19L (5 Gallon) Steel Pail
  • 116513 - Air Regulator
  • 233499 - Hose Kit comprising 3/8" x 7.6m Fluid Hose and 1/4" x 7.6m Air Hose
  • 241976 - Fluid Regulator

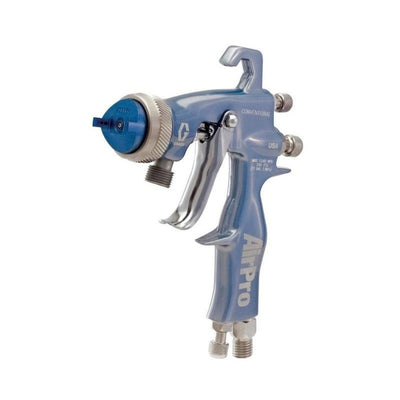

  • 288931 - AirPro Conventional Gun .055 in (1.4 mm) nozzle
  • Graco Triton Brochure 300541EN-L
  • GO Data Sheet Graco 300541EN-I Triton Brochure
  • GO Manual Graco Triton Packages 309304EN-P
  • GO Manual Graco 309303EN-V Triton 308 Pump
  • Graco Triton 1-1 Operation Manual 309305EN-H
  • Graco Agitator Kit Manual 309306EN-A 2
  • Graco Fluid Pressure Regulators Manual 307212EN-ZAJ
  • Graco Fluid Pressure Regulators Parts Manual 308325EN-E
  • Graco PRO Xs3 Xs4 Spray Guns Manual 309292EN-W
  • Graco AirPro Pressure Feed Airspray Gun Manual 312414EN-U
  • GO Data Sheet Graco Triton 308 Conventional Sprayer Pail or Drum Mount 300541EN-L

Specifications

Triton 1:1 Spray Packages
Maximum fluid working pressure
7.0 bar, 0.7 MPa
Maximum incoming air pressure
7.0 bar, 0.7 MPa
Maximum operating temperature
49°C
Weight (without hoses or gun)
Pail mount packages, aluminium
10 kg
Pail mount packages, stainless steel
12.7 kg

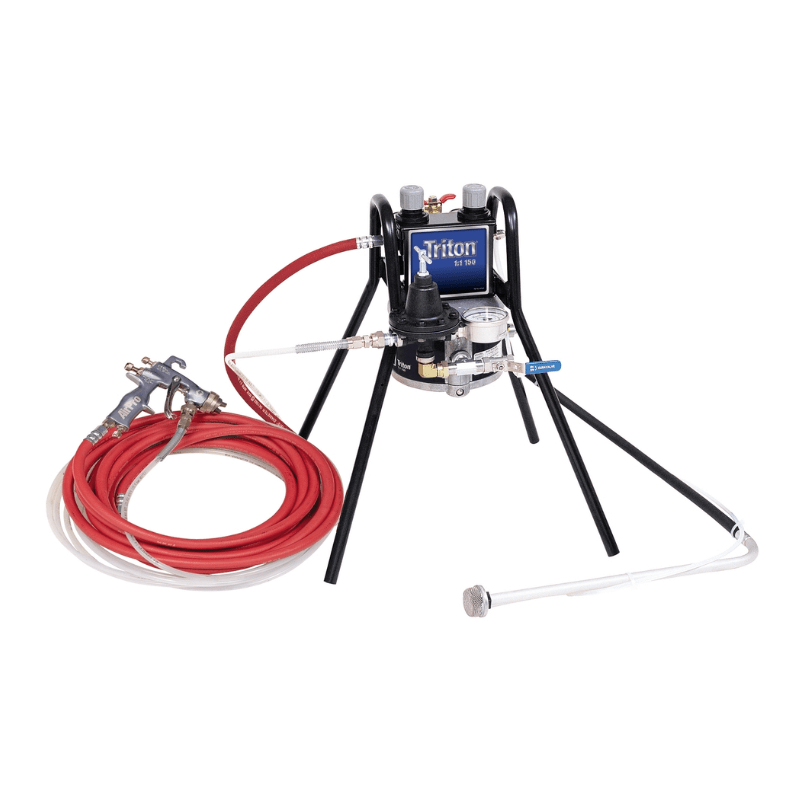

Stand mount packages, aluminium
9.1 kg
Stand mount packages, stainless steel
12.3 kg

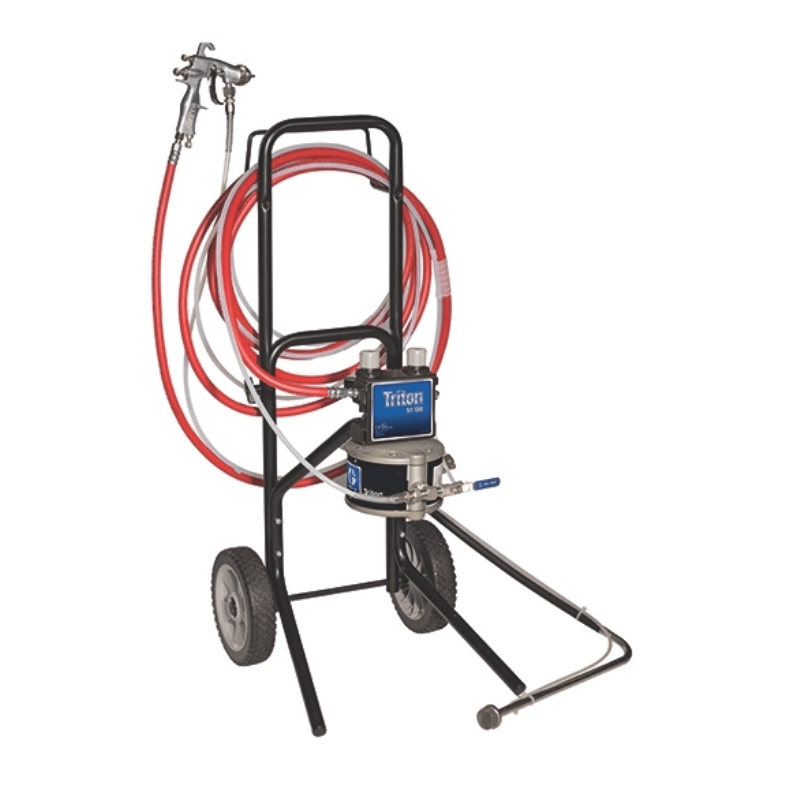

Cart mount packages, aluminium
13.6 kg
Cart mount packages, stainless steel
16.4 kg

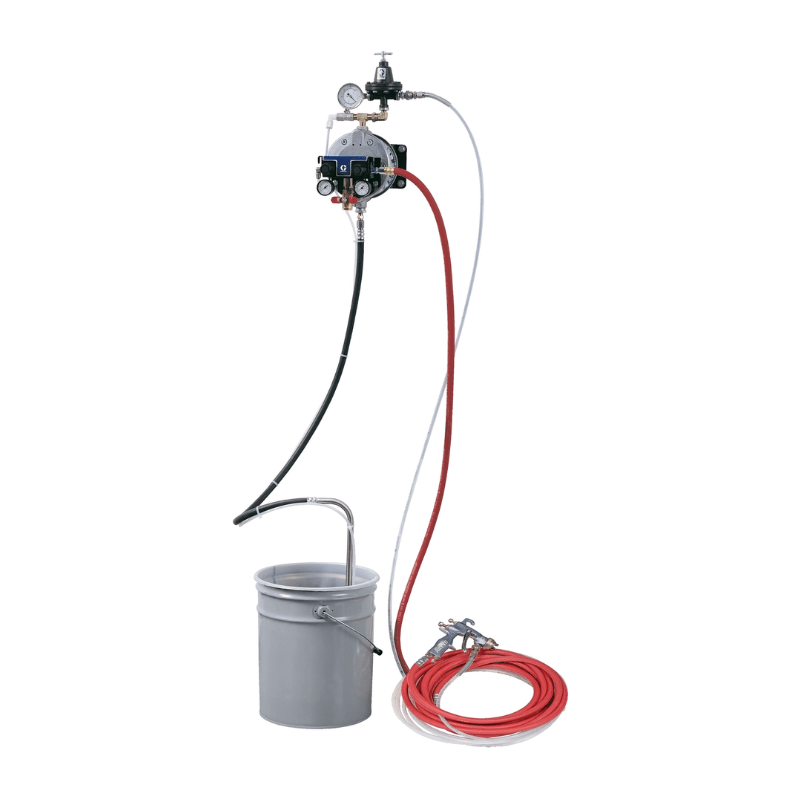

Wall mount packages, aluminium
8.6 kg
Wall mount packages, stainless steel
10.9 kg
Wetted Parts
Pump
See Triton Pump manual.
Gun
See Gun manual.
Fluid pressure regulator
See Regulator manual.
Fluid hoses, aluminum packages
nylon, nickel-plated carbon steel, LDPE/rubber blend (suction hose), aluminum
Fluid hoses, stainless steel packages
nylon, stainless steel, LDPE/rubber blend (suction hose)
Fluid hoses, electrostatic packages
nylon, nickel-chrome plated carbon steel, LDPE/rubber blend (suction hose)
Fluid fittings, aluminum packages
Zinc-plated carbon steel, stainless steel, polypropylene, polyethylene
Fluid fittings, stainless steel packages
Stainless steel, polypropylene, polyethylene
Pail cover, aluminum packages
Zinc-plated carbon steel
Pail cover, stainless steel packages
Stainless steel
Noise Level
Sound pressure level
See Triton Spray Package manual.
Sound power level
See Triton Spray Package manual.



    Features

  • High quality finish, low pulsation output and smooth pump changeover deliver a consistent spray pattern
  • Quick color changes and fast material refills save time and money
  • Rugged, stainless steel or aluminium construction pump handles a wide variety of fluids
  • It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
  • Supplies up to 35% extra air flow to gun for superior atomization
  • Saves material and time during flushing, priming and color changes
  • Delivers a consistent spray pattern and uniform film thickness
  • Sprays a wide variety of material viscosities
  • Reduces operator fatigue
