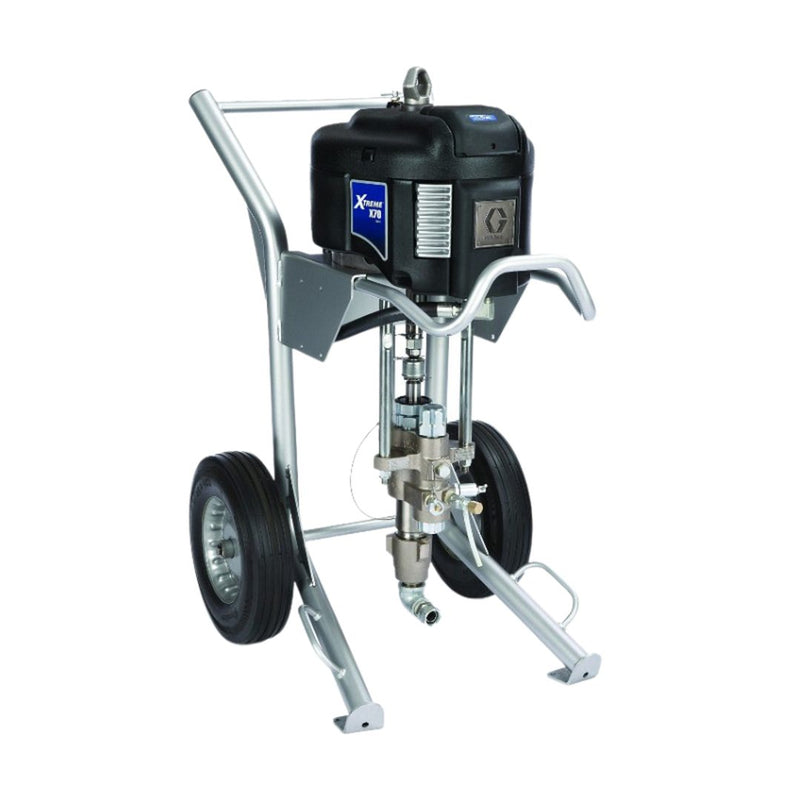

GRACO XTreme Airless Sprayers with NXT Technology
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Graco Xtreme NXT are high-pressure, air-operated airless sprayers for protective coatings. Built with Graco's NXT air motor, they handle the toughest protective coatings and corrosion-control materials, including high-solids and 100% solids coatings.
Three motor sizes and eleven models are available to suit your application.
Features
NXT air motor: Tested and proven to last ten times longer than the Graco King.
DataTrak monitor: Tracks material use, runs system diagnostics and provides runaway control.
De-icing model: Reduces downtime due to freeze-ups.
Range of models: Three motor sizes and eleven models to fit your application.
Included accessories
Specifications
| Maximum air inlet pressure, 16:1 to 80:1 ratios | 7 bar, 0.7 MPa |
|---|---|
| Maximum air inlet pressure, 90:1 ratio | 5.5 bar, 0.55 MPa |
| Air Inlet Size | 3/4 npt(f) |
| Fluid Inlet Size | 1-1/4 npt(m) |
| Fluid Outlet Size | Pumps with built-in filters (2 outlet ports): 1/2 npt(m). Pumps without built-in filters (1 outlet port): 85cc and 115cc pumps 1/2 npt(f), 145cc and 180cc pumps 3/4 npt(f), 220cc, 250cc and 290cc pumps 1 npt(f) |
| Maximum pump speed | 60 cycles per minute |
| Stroke length | 120 mm |
| Air motor piston diameter, NXT 6500 | 264 mm |
| Air motor piston diameter, NXT 3400 | 191 mm |
| Air motor piston diameter, NXT 2200 | 152 mm |
| Maximum working pressure, 16:1 | 105 bar, 10.5 MPa |
| Maximum working pressure, 21:1 | 140 bar, 14.0 MPa |
| Maximum working pressure, 24:1 | 165 bar, 16.5 MPa |
| Maximum working pressure, 25:1 | 164 bar, 16.4 MPa |
| Maximum working pressure, 30:1 | 217 bar, 21.7 MPa |
| Maximum working pressure, 31:1 | 207 bar, 20.7 MPa |
| Maximum working pressure, 35:1 and 40:1 | 262 bar, 26.2 MPa |
| Maximum working pressure, 45:1 | 310 bar, 31.0 MPa |
| Maximum working pressure, 46:1 | 327 bar, 32.7 MPa |
| Maximum working pressure, 50:1 | 345 bar, 34.5 MPa |
| Maximum working pressure, 55:1 | 386 bar, 38.6 MPa |
| Maximum working pressure, 60:1 | 417 bar, 41.7 MPa |
| Maximum working pressure, 70:1, 80:1 and 90:1 | 500 bar, 50.0 MPa |
| NXT air motor, 16:1, 21:1, 24:1, 31:1, 35:1 | 2200 |
| NXT air motor, 25:1, 30:1, 40:1, 46:1, 55:1, 80:1 | 3400 |
| NXT air motor, 45:1, 50:1, 60:1, 70:1, 90:1 | 6500 |
| Lower cc per cycle, 16:1, 25:1, 45:1 | 290 |
| Lower cc per cycle, 21:1, 30:1, 60:1 | 220 |
| Lower cc per cycle, 24:1, 40:1, 70:1 | 180 |
| Lower cc per cycle, 31:1, 46:1, 90:1 | 145 |
| Lower cc per cycle, 35:1, 55:1 | 115 |
| Lower cc per cycle, 50:1 | 250 |
| Lower cc per cycle, 80:1 | 85 |
| Flow rate at 30 and 60 cycles per minute, 16:1, 25:1, 45:1 | 8.7 lpm, 17.0 lpm |
| Flow rate at 30 and 60 cycles per minute, 21:1, 30:1 | 6.6 lpm, 12.9 lpm |
| Flow rate at 30 and 60 cycles per minute, 24:1, 40:1, 70:1 | 5.4 lpm, 11.0 lpm |
| Flow rate at 30 and 60 cycles per minute, 31:1, 46:1, 90:1 | 4.4 lpm, 8.7 lpm |
| Flow rate at 30 and 60 cycles per minute, 35:1, 55:1 | 3.6 lpm, 7.6 lpm |
| Flow rate at 30 and 60 cycles per minute, 50:1 | 7.6 lpm, 15.2 lpm |
| Flow rate at 30 and 60 cycles per minute, 80:1 | 3.0 lpm, 5.7 lpm |
