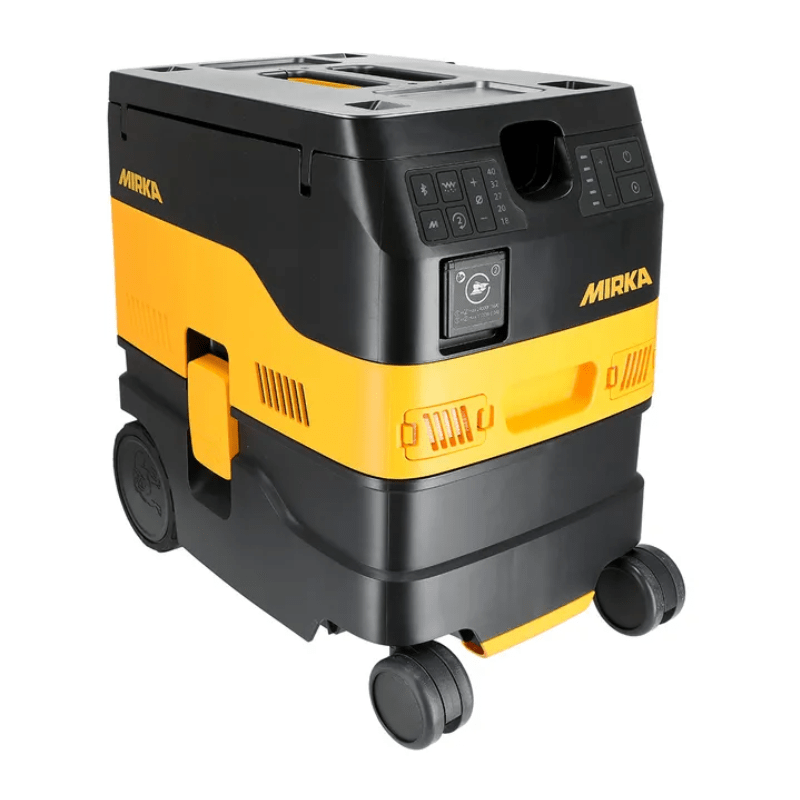

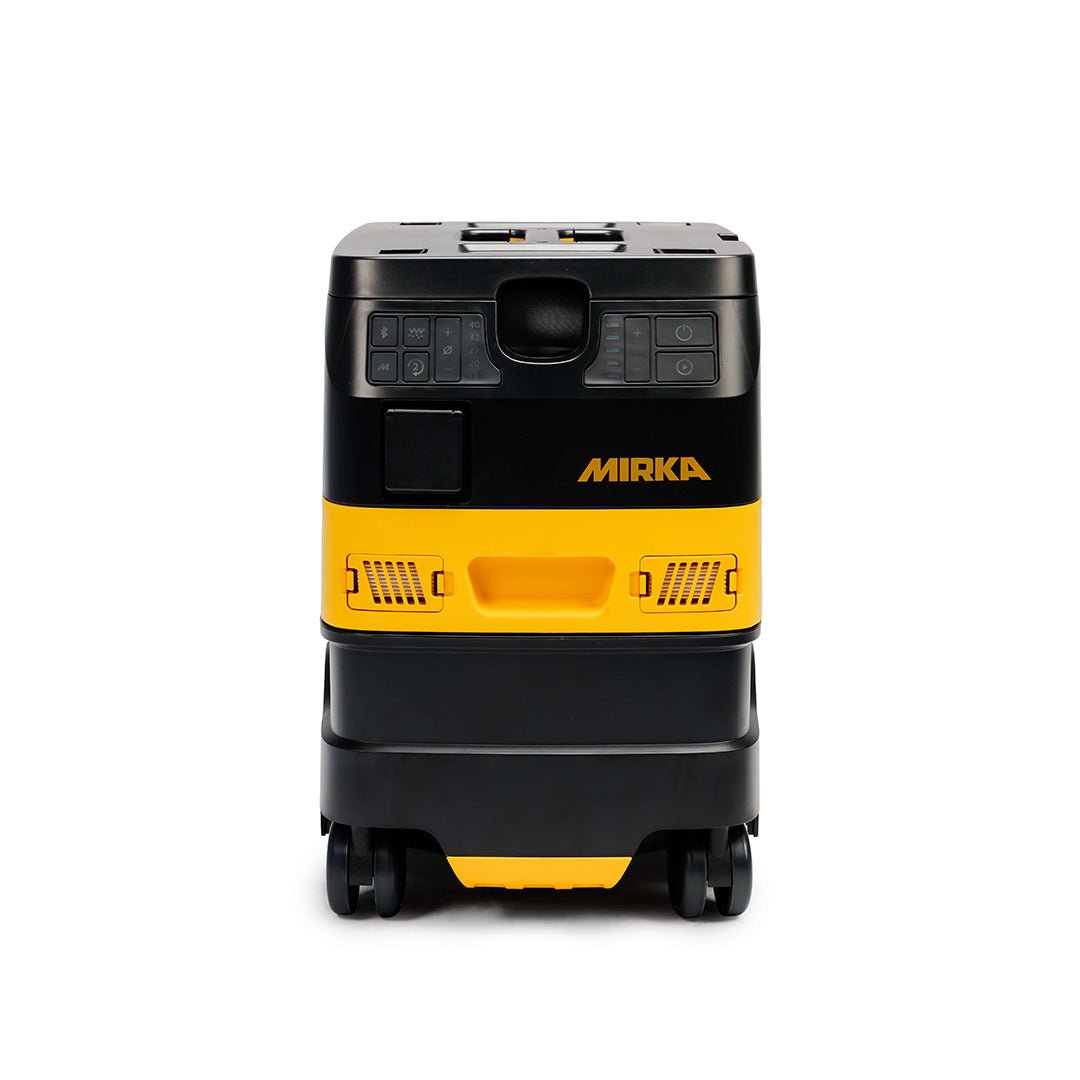

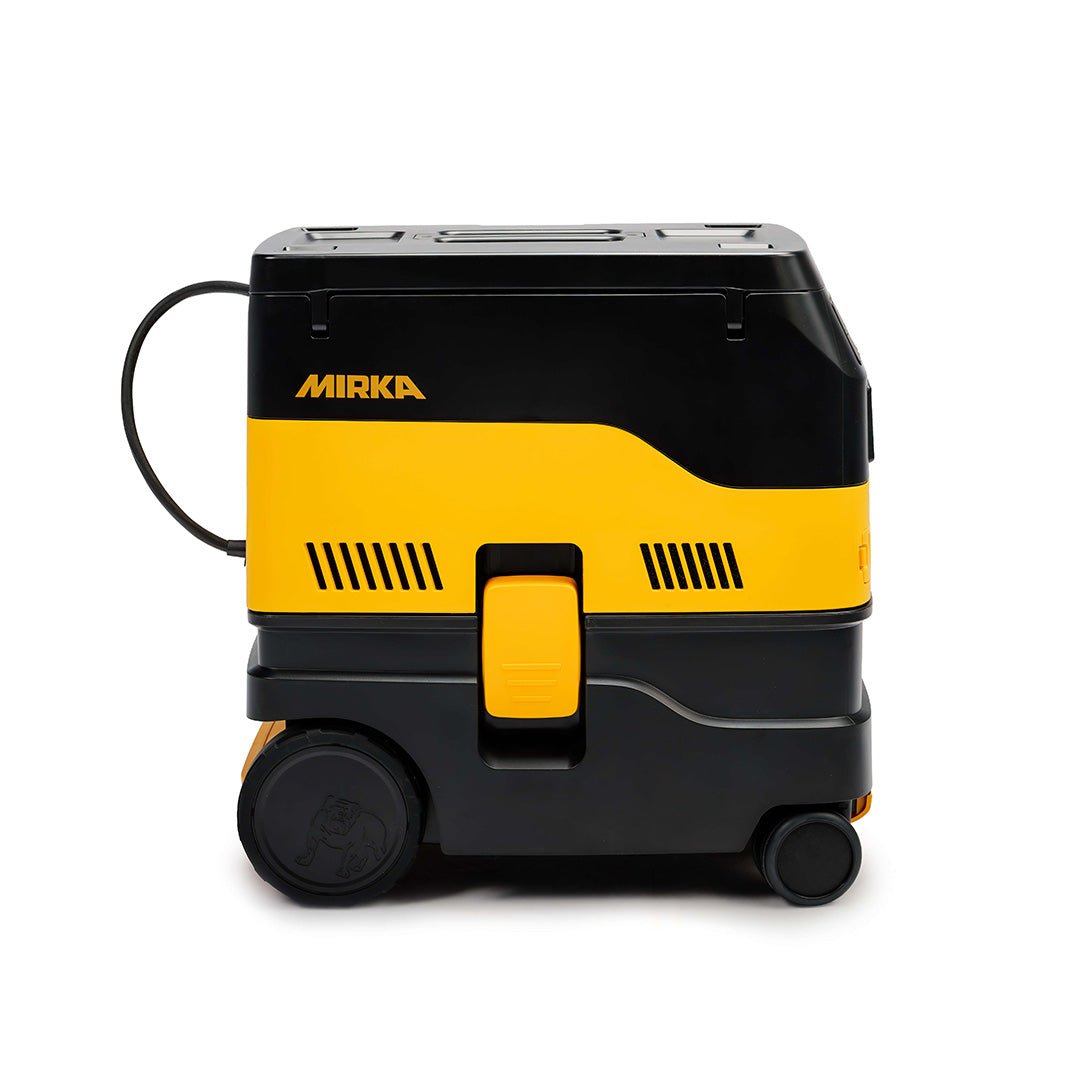

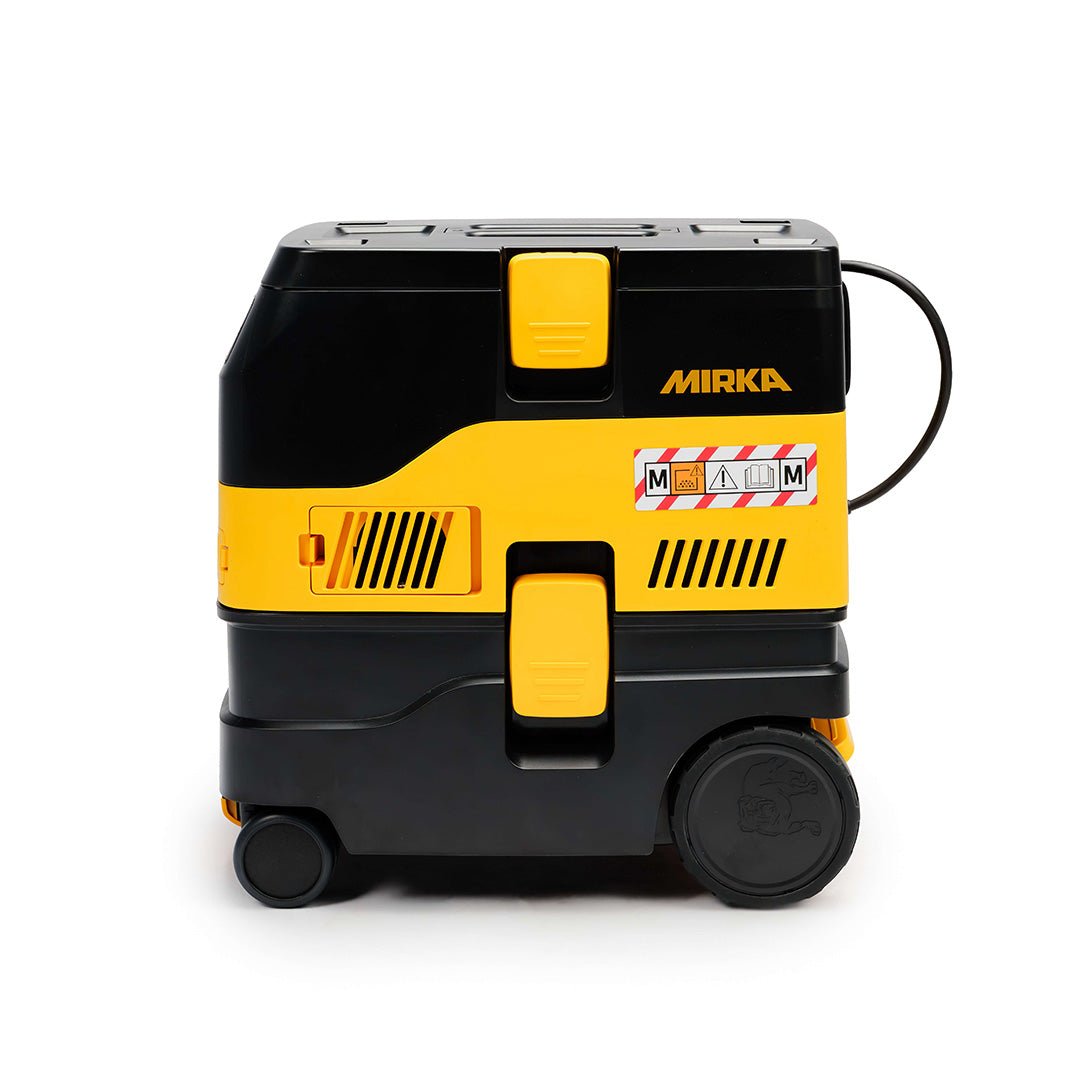

MIRKA DEXOS 1217 M AFC Dust Extractor with 4m Hose

• Enhanced User Experience: Integrated storage, easy top removal, user-friendly brake, and convenient power outlet placement
• Compact and Ergonomic Design: Easy to handle and manoeuvre, suitable for various job sites
• Advanced Features: Bluetooth connectivity, automatic filter cleaning, and customisable multifunction buttons
• Long Lifetime: Equipped with a brushless motor
• High Suction Power: Comparable to larger models, ensuring efficient dust extraction
• Large Versatility: Compatible with multiple tool types and designed for both wet and dry use

Why choose an M-class dust extractor?

Proven Performance for User Protection

M-class dust extractors are designed for professional users in collision repair, construction, and woodworking, specifically for tasks that generate medium-risk dust, such as sanding hardwood, plaster, putty, latex, and oil paints. This type of dust has an occupational exposure limit (OEL) of greater than 0.1 mg/m³, meaning the dust extractor must retain 99.9% of the dust to ensure safety. To meet these standards, the airflow in the suction hose must be at least 20 m/s.

M-class dust extractors are not suitable for hazardous dust with OEL values below 0.1 mg/m³, hot materials like burning cigarettes or hot ash, flammable or explosive liquids such as petrol, solvents, acids, or alkalis, and flammable or explosive dust like magnesium or aluminium dust.

Get to Know the Mirka DEXOS 1217 M AFC Dust Extractor

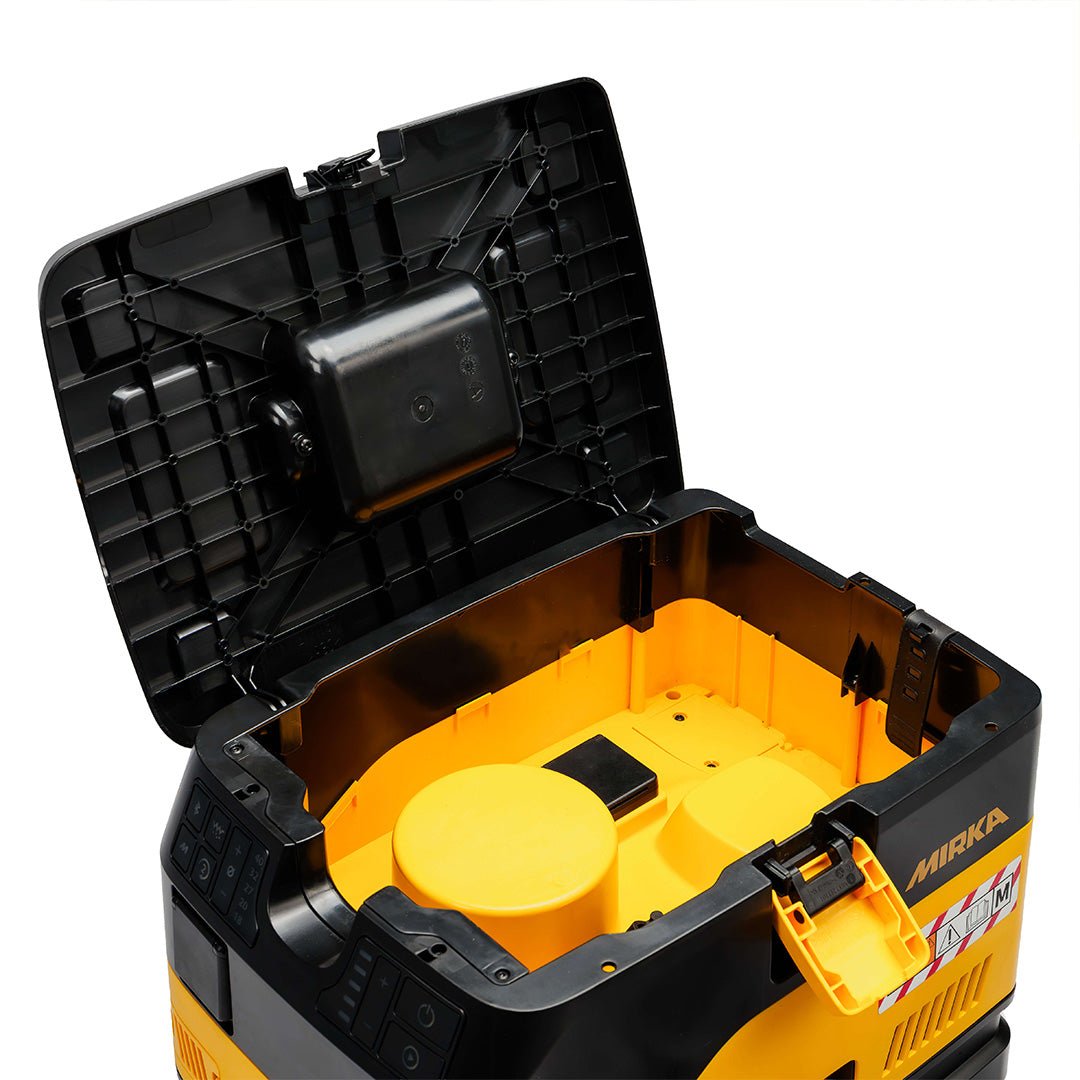

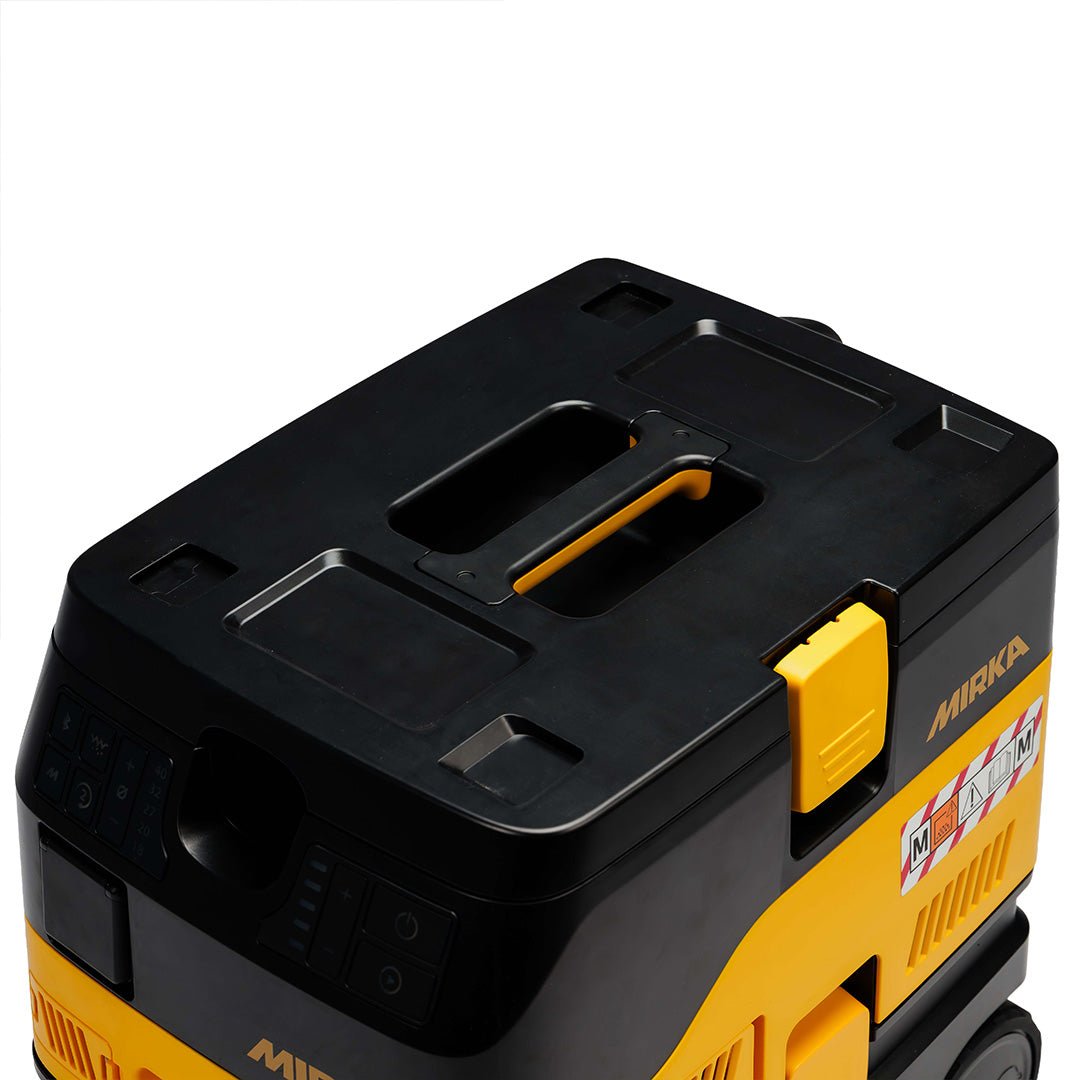

Step 1: Opening Top with Lift Handle

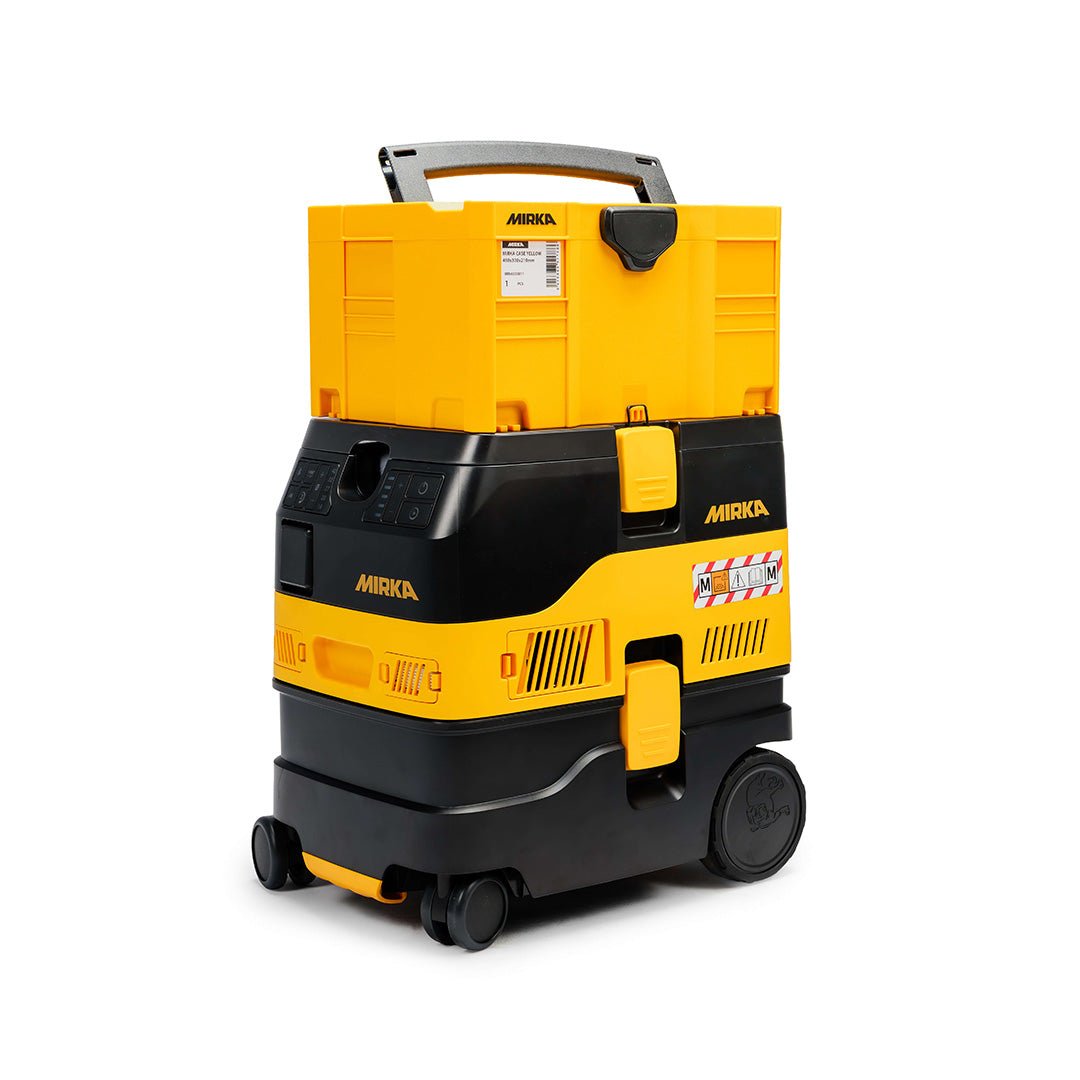

• Compatible with fitting a Mirka Case storage box, the top features an ergonomic lift handle for moving the dust extractor around and transporting it.

Step 2: Bluetooth Pairing

• Pair the Mirka DEXOS using low-energy Bluetooth connection*

  *The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Mirka Ltd is under license. Other trademarks and trade names are those of their respective owners.

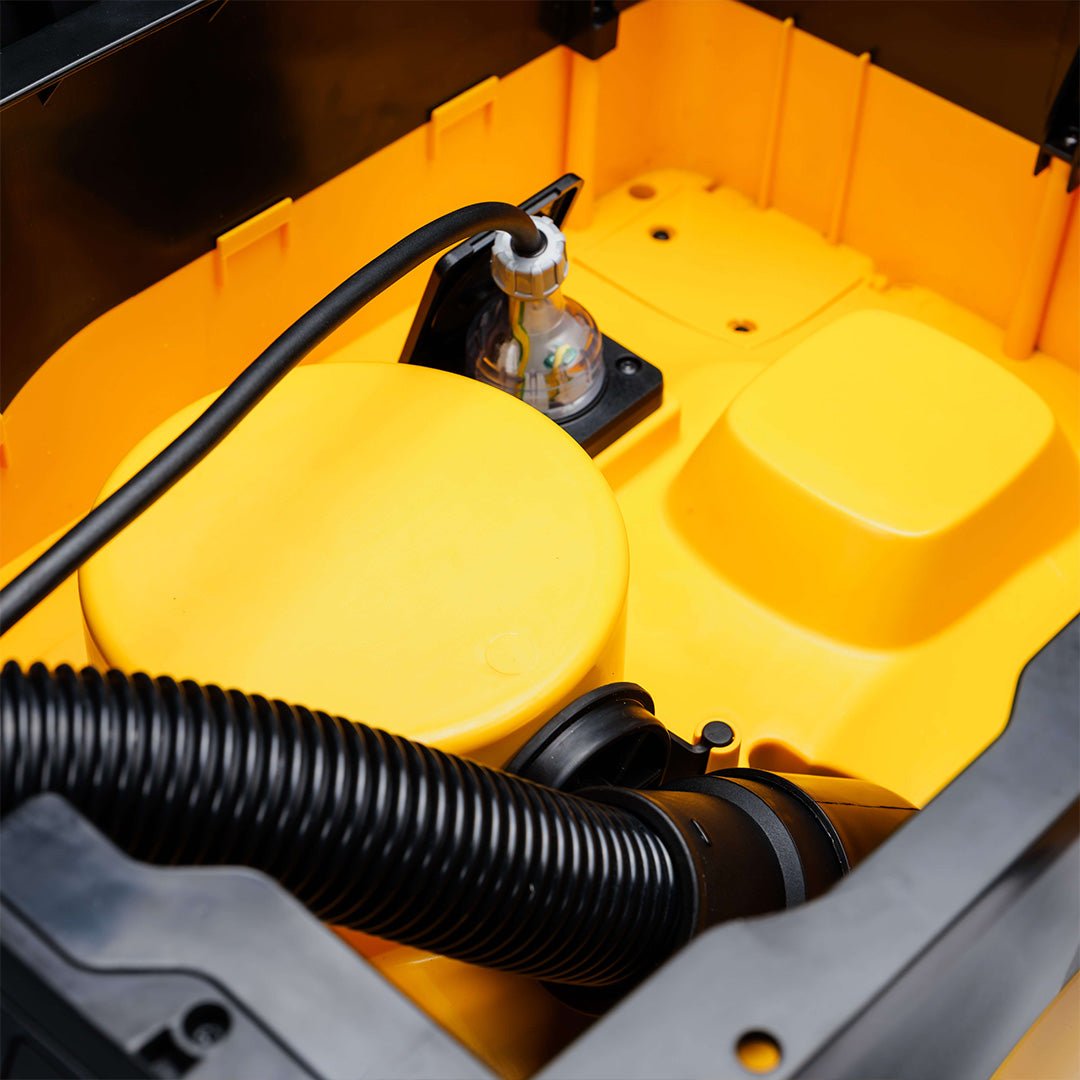

Step 3: Power Outlet

• Connect your Mirka Power Tool here to run it together with the dust extraction hose. A separate power outlet is located in the storage space inside the dust extractor

Step 4: Hose Diameter

• Choose the diameter of the attached dust extraction hose

Step 5: Hose Outlet

• Outlet for the on-tool dust extraction hose

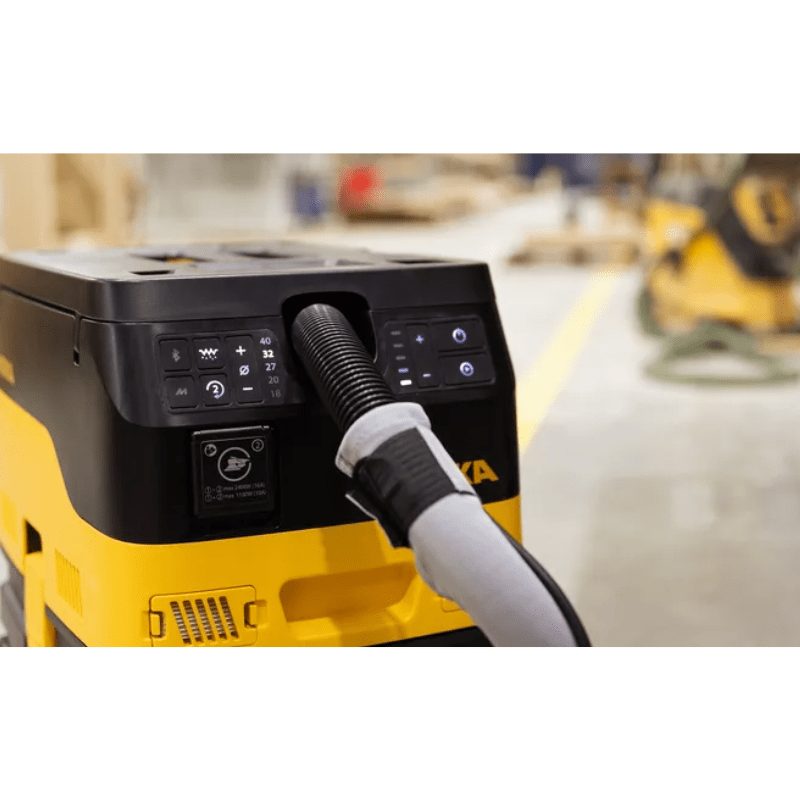

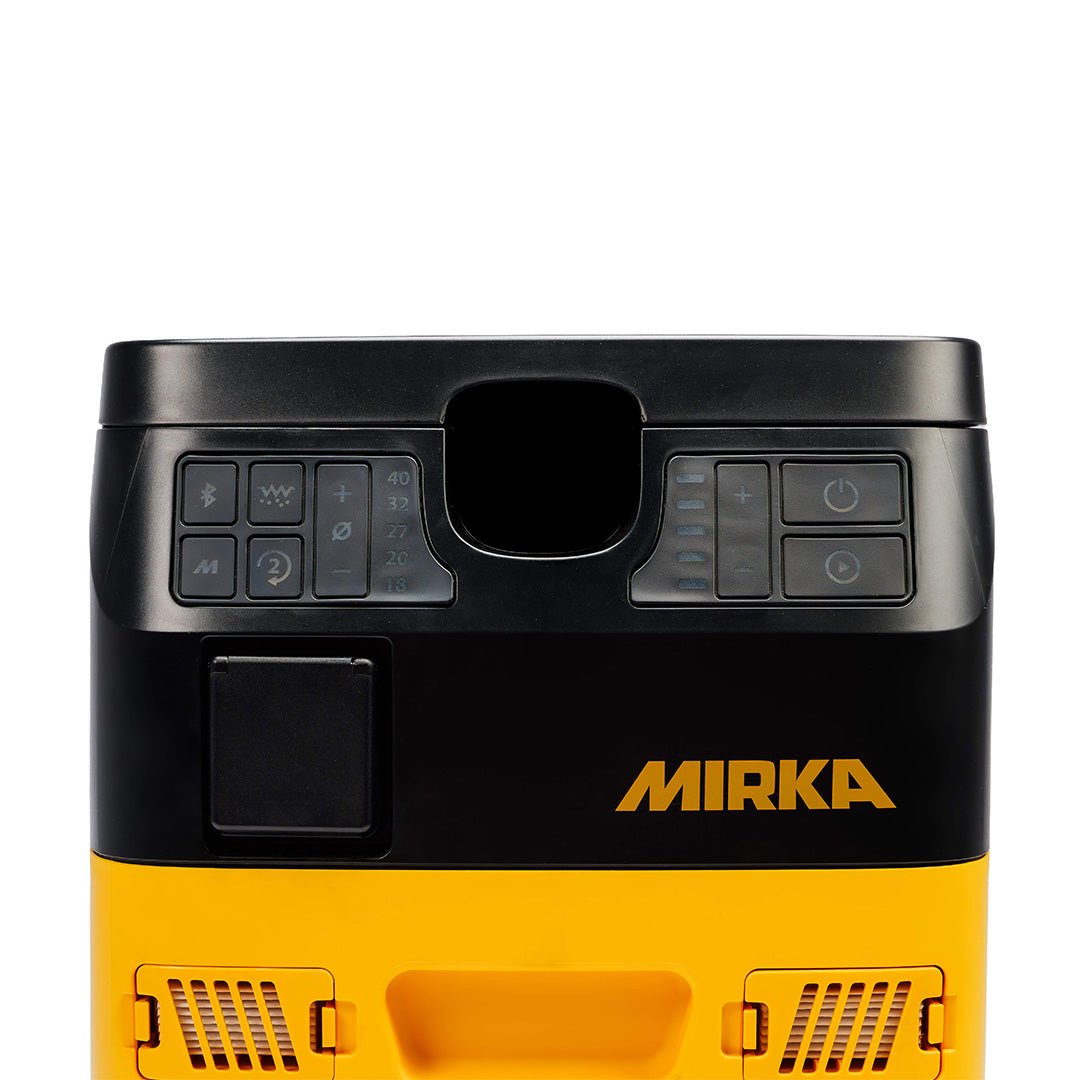

Step 6: Control Panel

• Easy-to-use backlit control panel for using the various features of the Mirka DEXOS 1217 M AFC

Step 7: Power Switch

• Power button for switching the dust extractor on

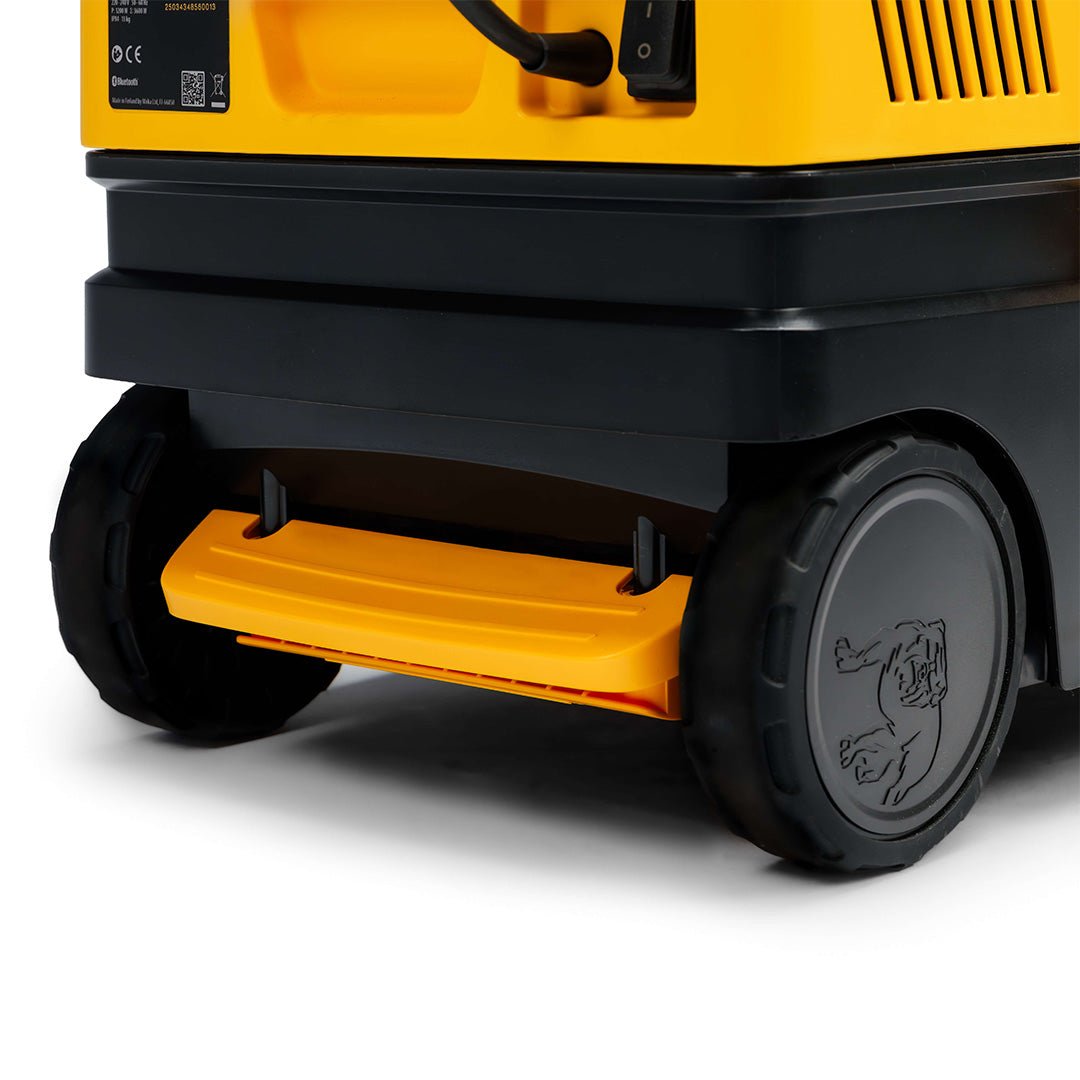

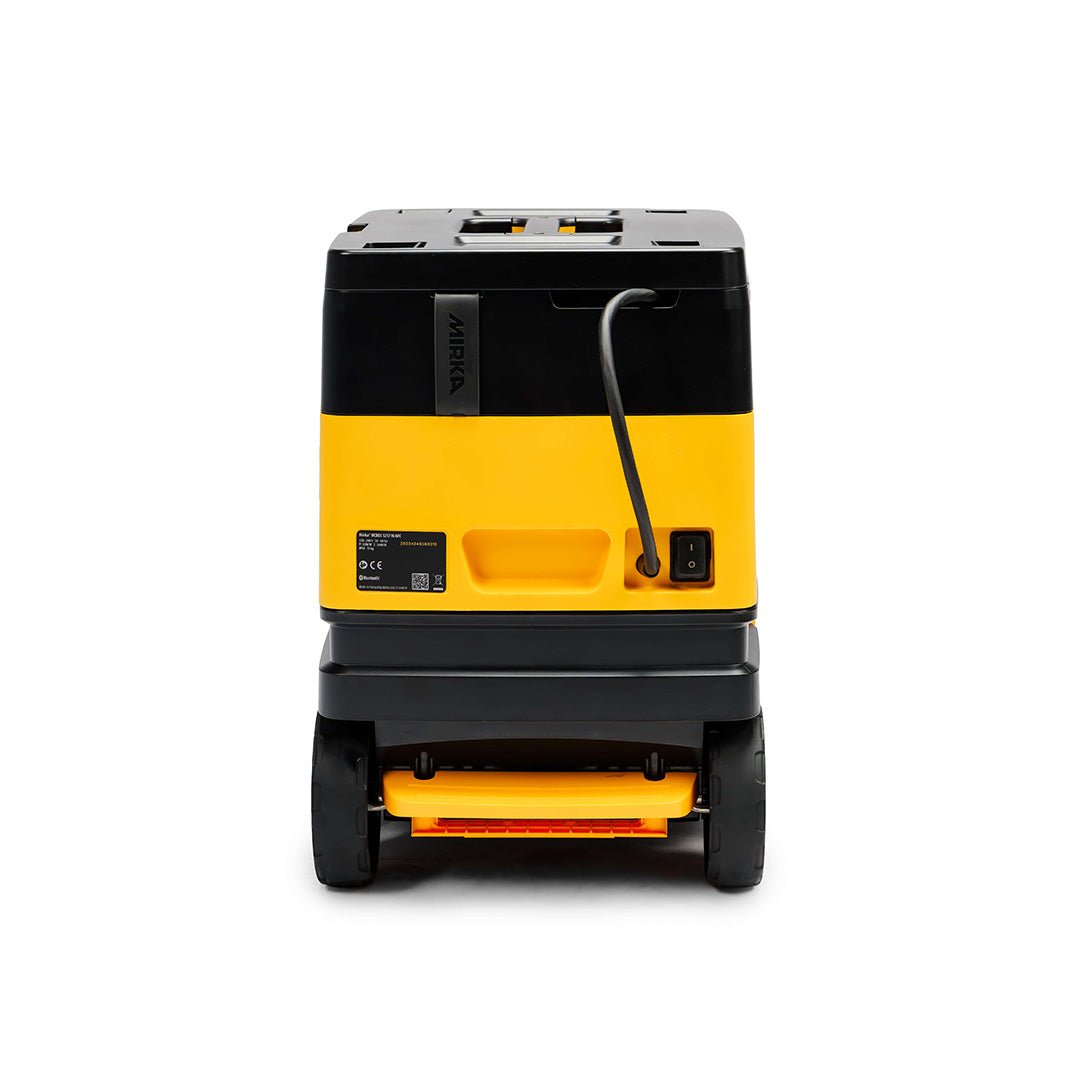

Step 8:  Rear Wheels with Brake

• The sturdy rear wheels with rubber tires can be locked in place with a foot brake

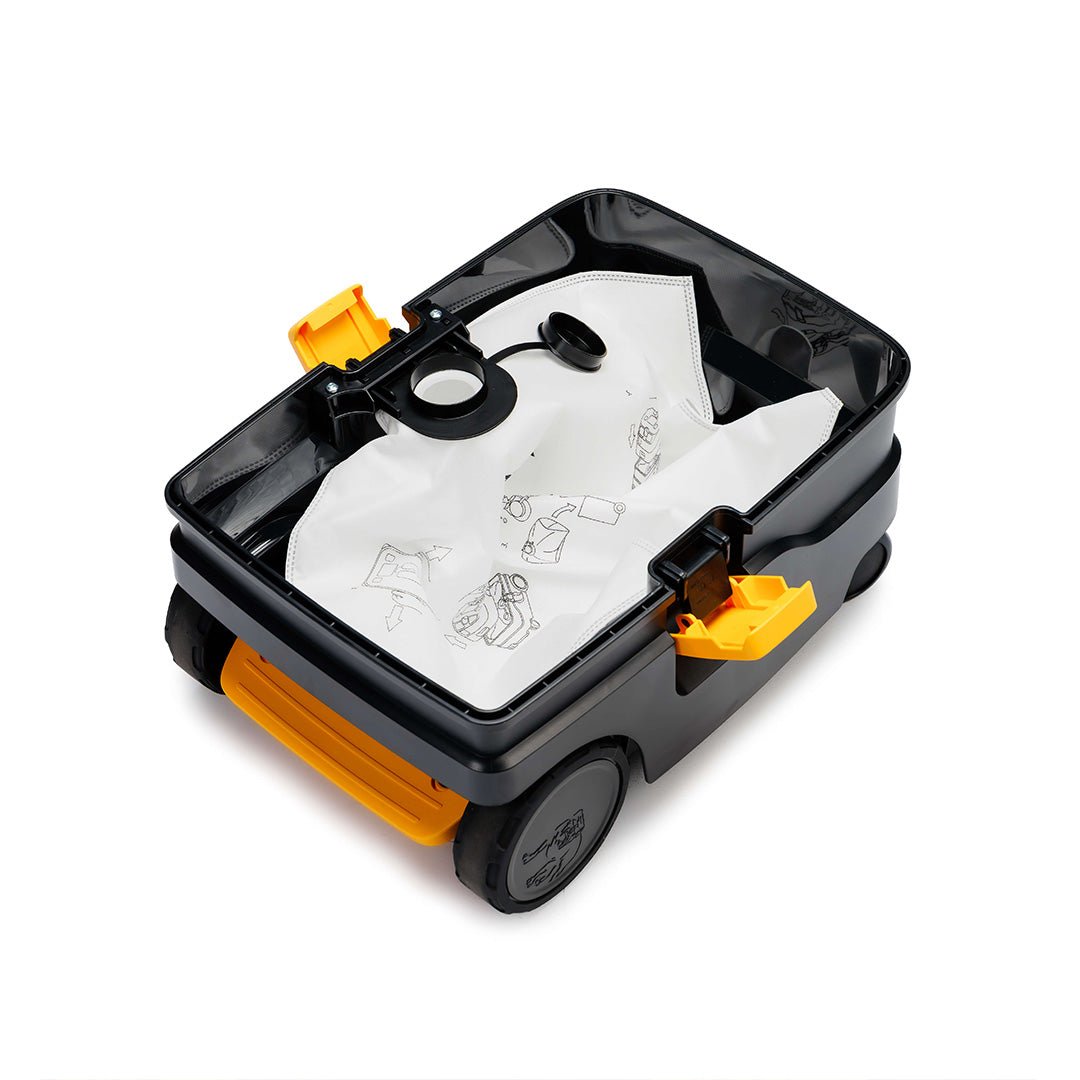

Step 9: Access the Dust Bag

• Simply open the container without removing any attached storage boxes

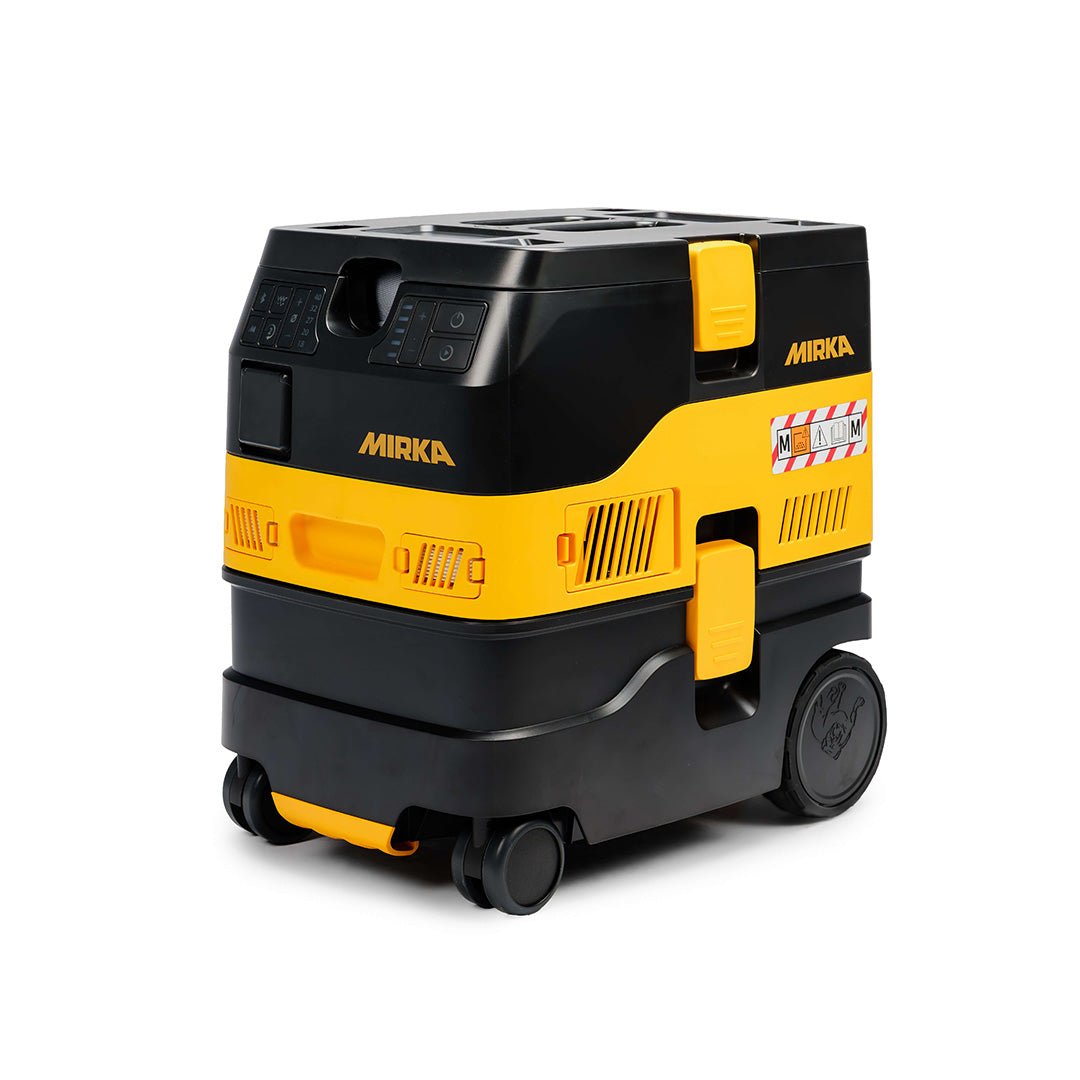

Step 10: Compact Boxy Design

• Compact, box shaped design for easy transport

Step 11: Inlet Air Filter

• There are two inlet air filters located at the front of the dust extractor.

Step 12: Handle

• The DEXOS 1217 M AFC features handles on the front and back for easy carrying.

Enhanced connectivity

Dust Extraction Management with myMirka App

• AFC Time Interval Setting          

• Air Flow Indication

• Power Level Indication

• Hose Size Indication

• Firmware Update Capability

• AutostartLevels per socket

• Low Airflow Warning

• Hot Motor Alarm

• Hot PCB Alarm

• Running Time Display

• Shutdown Cause Log

• Bluetooth Always ON/OFF

• Count of Stops Due to Hot Motor

• Count of Stops Due to Hot PCB

• Access to manual and related products info (dust bag, filters etc.)

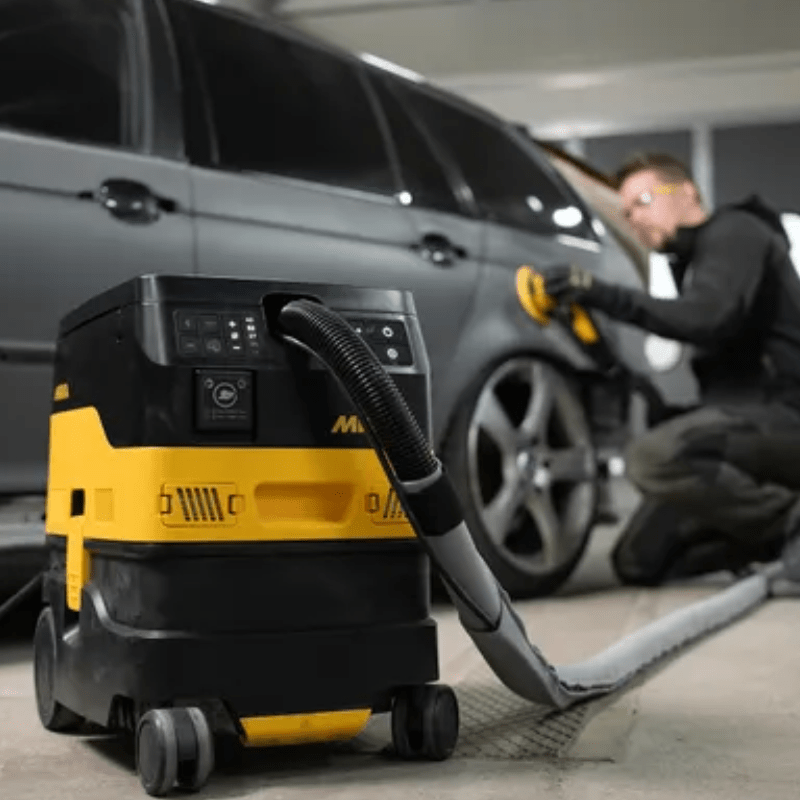

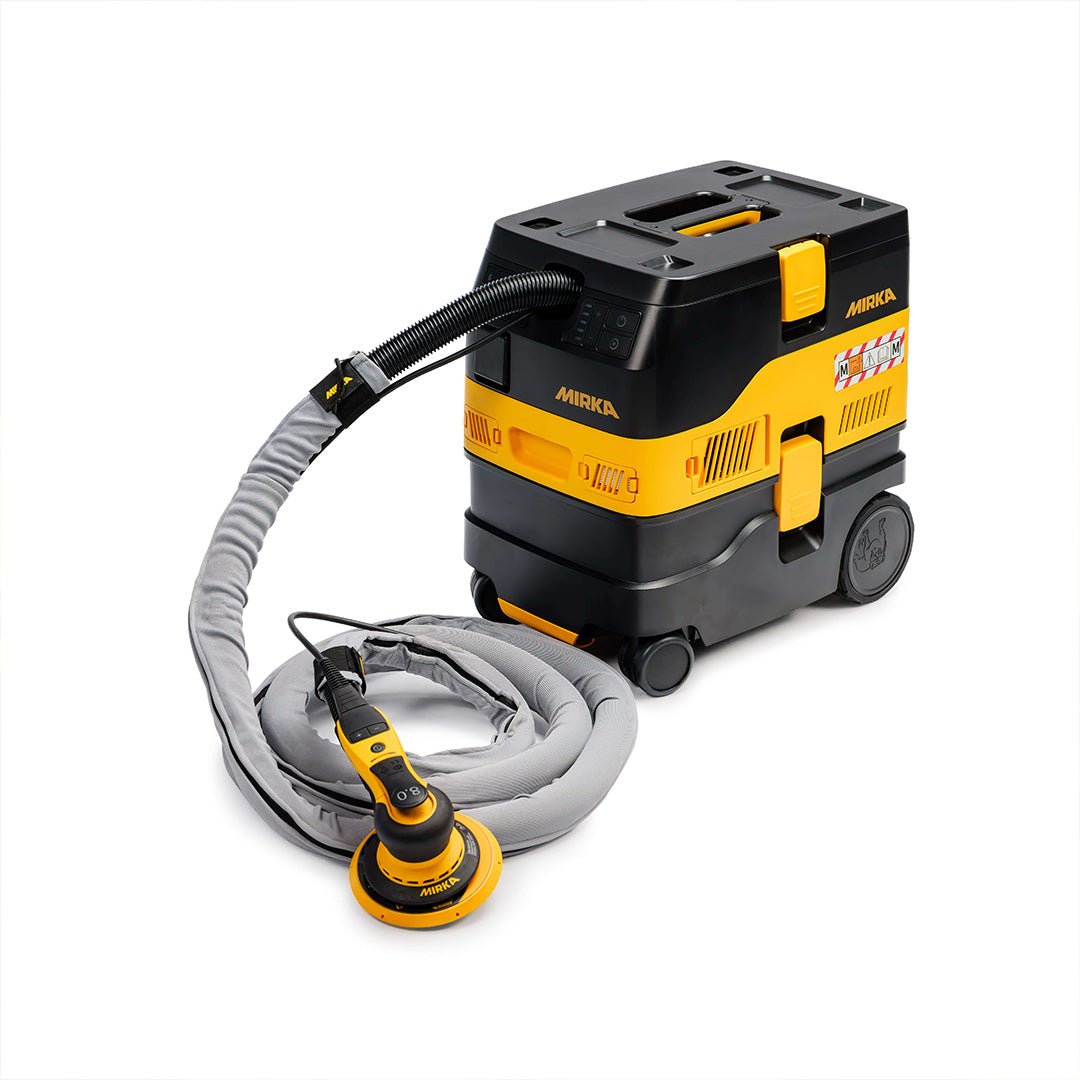

Combine with a powerful Mirka sander to experience dust-free sanding like never before.

The easy-to-use DEXOS has a compact and ergonomic design and weighs only 13 kilograms, ensuring ergonomic handling, easy-to-clean construction, and effortless portability for transportation and storage. Featuring a generous 17 litre capacity, it accommodates both wet and dry applications, offering versatility for various tasks.

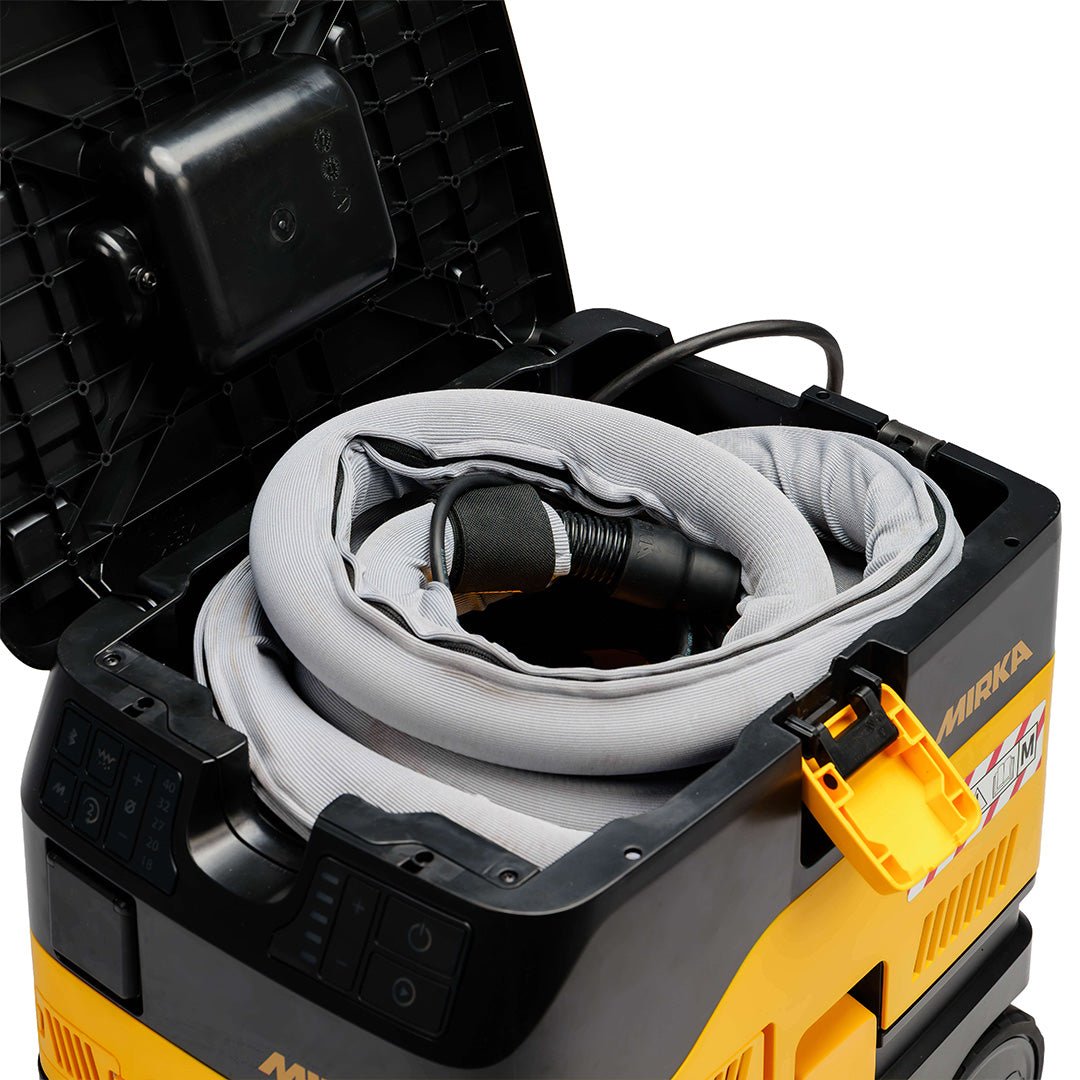

The Mirka DEXOS 1217 M dust extractor is designed with storage, ergonomics, and ease of use at its core. An integrated case fastening system allows Mirka Cases and Toolboxes to sit securely on top of the extractor, while built-in cord and hose storage keeps the workspace tidy. Practical features such as top-mounted dust bag access, a stable brake pedal, dual power outlets, autostart functionality, adjustable power levels, and Bluetooth connectivity via the myMirka app deliver seamless control, cleaner operation, and a more efficient workflow from start to finish.

As an M-class dust extractor, the DEXOS 1217 M is engineered for professional environments like construction, woodworking, and collision repair, where medium-risk dust is generated. It captures 99.9% of dust with an airflow of at least 20 m/s, helping protect users from harmful airborne particles. Automatic Filter Cleaning (AFC) technology ensures consistent suction by preventing filter clogging, extending filter life and reducing downtime, while a Push & Clean option provides manual control when needed. Together, these features create a safer, more productive working environment with minimal maintenance and maximum performance.
