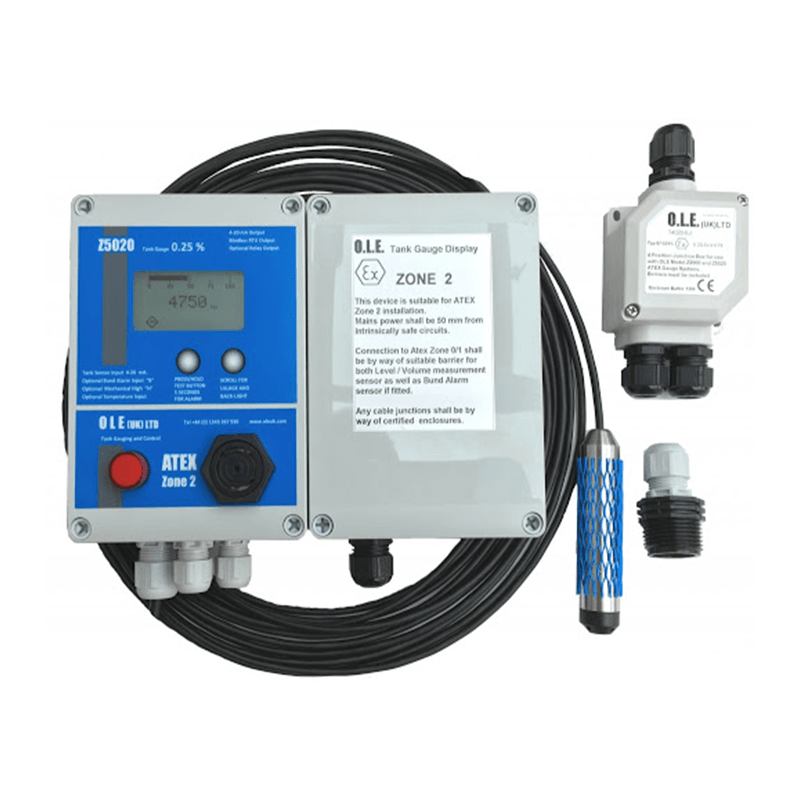

OLE Z5020 Tank Gauge Flammable Liquids with Probe for Tanks upto 3m in Height

• Accuracy +/- 0.25% or better.
• Two (2) Year Warranty
• Litres Display and % Bar and Alarm Status
• 4-20 mA output for BMS + Modbus RTU as standard
• Suitable for any height / shape of Tank.
• Low Installation & Maintenance Costs
• IP65 weatherproof enclosure
• Alarm Test Functions Two button auto reset operation
• Single power connection for multi-functions
• Replaces separate Gauge, High / Low /Bund Alarms
• Adjustable Screen Resolution
• Adjustable Safe Fill Level Setting
• Suitable with petrol, kerosene, diesel, biodiesel up to B100, AdBlue & antifreeze (coolant)
• Tank probes are an electronic pressure sensor with a 1" BSPT male fitting.
• Level probes must be suspended 50mm from the bottom of the tank.
• 1 gauge required per tank. Slave display option available.
• Options- Choose between bund probe or water bottom sensor
• Relay board fits inside gauge housing, 4 volt free outputs

Inputs / Outputs

• Power Supply 18-24 vdc (with optional 110-240 vac power supply)
• Input : 1 x Tank Sensor 4-20 mA (new or existing measuring sensor)
• Input : 2 x Digital inputs, Normally Closed (H and B Alarms)
• Output: 1 x Modbus RS485 with registers for all features
• Output: 1 x 4-20 Output: 4-20 mA proportional to Litres Capacity.
• Output: 4 x Level Triggers. 24vdc as std, or Volt Free Relay Option
• Output: 1 x Bund Condition Digital condition (NC To BMS)
