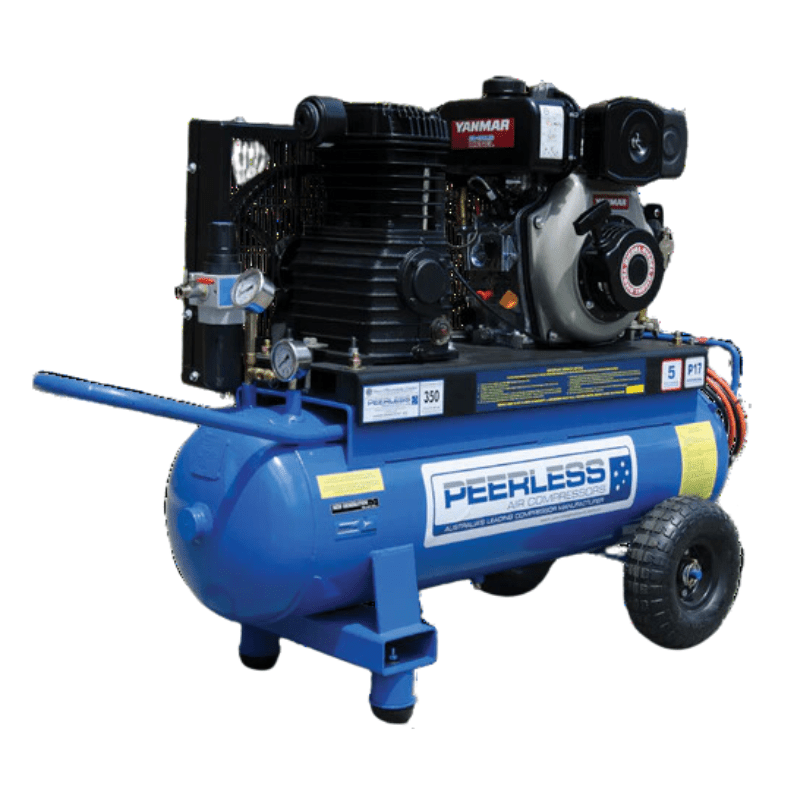

PEERLESS P17 Belt Drive Diesel Air Compressors
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Peerless P17 Diesel uses a distinctive floating top plate that is not hard welded to the tank, which helps absorb vibration from the engine and pump, reduces metal stress on the air receiver and lessens the load transferred to the mount. It also lets the operator separate the tank from the top plate on a vehicle build at no additional cost, so the pump can be positioned lower for a better centre of gravity. It is driven by a Yanmar L48 diesel engine, chosen for its wide use across Australia and its quieter running, and delivers 350 litres per minute of free air delivery. A skid foot version is also available.
Key start is the only option in the diesel range, and the Conrader idle control valve throttles the engine up and down with air demand, venting excess air when it is not needed. Every Peerless diesel build comes with a suitable water trap filter regulator fitted for 0 to 145PSI or 0 to 175PSI operation, and each machine is run and tested before delivery. Custom builds are available, including a lift pump fuel feed, an MDG15 mine compliant retro box and wiring loom extensions. Electric start engines do not come with a battery, leads or battery provisions. Performance of the belt driven range is rated to AS4637.
Features
Yanmar Engine: Yanmar key start diesel engine.
Idle Control: Conrader idle control system, made in the USA.
Floating Top Plate: Floating top plate, a Peerless design that reduces vibration transfer to the tank.
Pressure Vessel: AS1210 approved pressure vessel, with an MDR report certificate available on request.
Safety Valve: Approved safety valve with safety certificate.
Tank Warranty: 10 year tank warranty.
Gauges: Stainless steel gauges, not plastic.
Belt Guard: Solid belt guard, not wire.
Outlet Hose: Flexible braided outlet hose from the pump.
Air Outlets: Two air outlets, one main tank outlet and one water trap regulator outlet.
Included accessories
Specifications
| P17D (00381) | Skid foot (00384) | |
|---|---|---|
| Code | 00381 | 00384 |
| Model | P17D | Skid foot |
| Pump Displacement | 17 CFM | 17 CFM |
| Free Air Delivery | 350 LPM | 350 LPM |
| Max PSI | 145 | 145 |
| Engine | Yanmar L48 | Yanmar L48 |
| Warranty Pump | 5 Year | 5 Year |
| Warranty Engine | 3 Year | 3 Year |
| Tank Capacity | 68L | 68L |
| Pump Up Time to 100PSI | 1.35 - 1.40 Min | 1.35 - 1.40 Min |
| Dimensions / Weight | 1300Lx460Wx910H / 140kg | 1100Lx460Wx910H / 135kg |
| Cooling Method | Air cooled | Air cooled |
| Pump Type | N75 Side by side | N75 Side by side |
| Cylinders | 2 | 2 |
| Pump Head Tension | 16 FT LB 22.4NM | 16 FT LB 22.4NM |
| Pump Oil Capacity | 1L | 1L |
| Pump RPM | 1061 | 1061 |
| Outlet Thread | 1/4" BSP | 1/4" BSP |
| Engine Fuel Capacity | 1.9L | 1.9L |
| Engine Oil Capacity | 800ml 10W/40 | 800ml 10W/40 |
