Peerless 00088

Code 00088
Model PHP30P
Pump Displacement (CFM)
30 CFM
Free Air Delivery (LPM) 620 LPM
Max PSI 175
Engine Honda GX270
Warranty Pump 1 Year
Warranty Engine
3 Year
Tank Capacity (L) 110L
Pump up time to 100PSI 0.55 - 1.00 Min
Dimensions (mm) / Weight (kg) 1300Lx450Wx910H
158kg
Cooling Method Air cooled
Pump Type W90II 2 Stage
Cylinders 3
Pump Head Tension 30 FT LB 40.67NM
Pump Oil Capacity 1.5L
Pump RPM 1190
Outlet Thread 1/2"BSP
Engine Fuel Capacity 5.3L
Engine Oil Capacity 1.1L 10W/30



Peerless 00088-UO

Code 00088-UO
Model Under Over
Pump Displacement (CFM)
30 CFM
Free Air Delivery (LPM) 620 LPM
Max PSI 175
Engine Honda GX270
Warranty Pump 1 Year
Warranty Engine
3 Year
Tank Capacity (L) 10L
Pump up time to 100PSI -
Dimensions (mm) / Weight (kg) LxWxH kg
Cooling Method Air cooled
Pump Type W90II 2 Stage
Cylinders 3
Pump Head Tension 30 FT LB 40.67NM
Pump Oil Capacity 1.5L
Pump RPM 1190
Outlet Thread 1/2"BSP
Engine Fuel Capacity 5.3L
Engine Oil Capacity 1.1L 10W/30
    pagination here

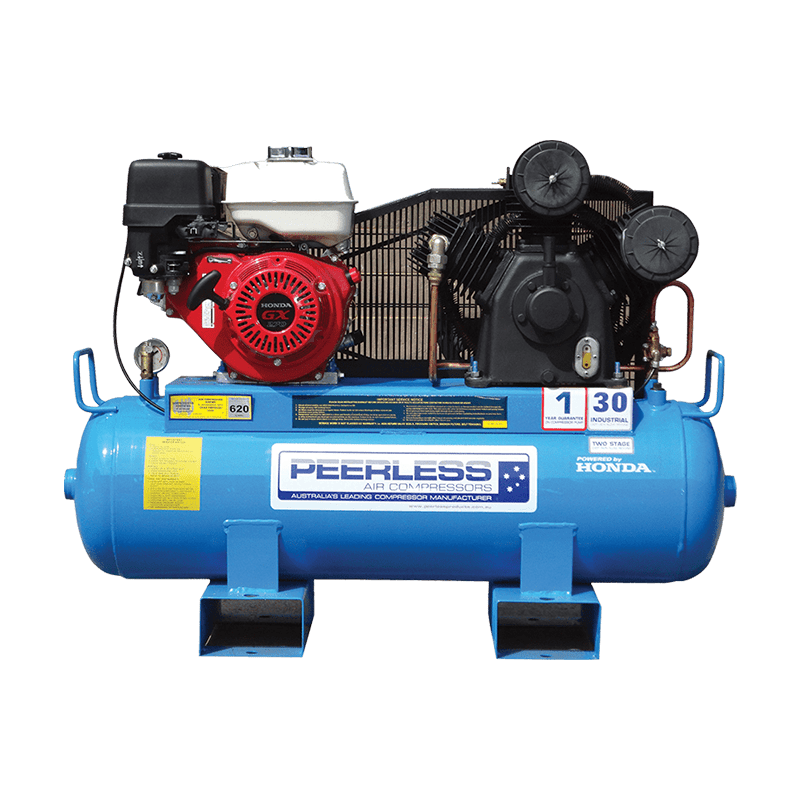

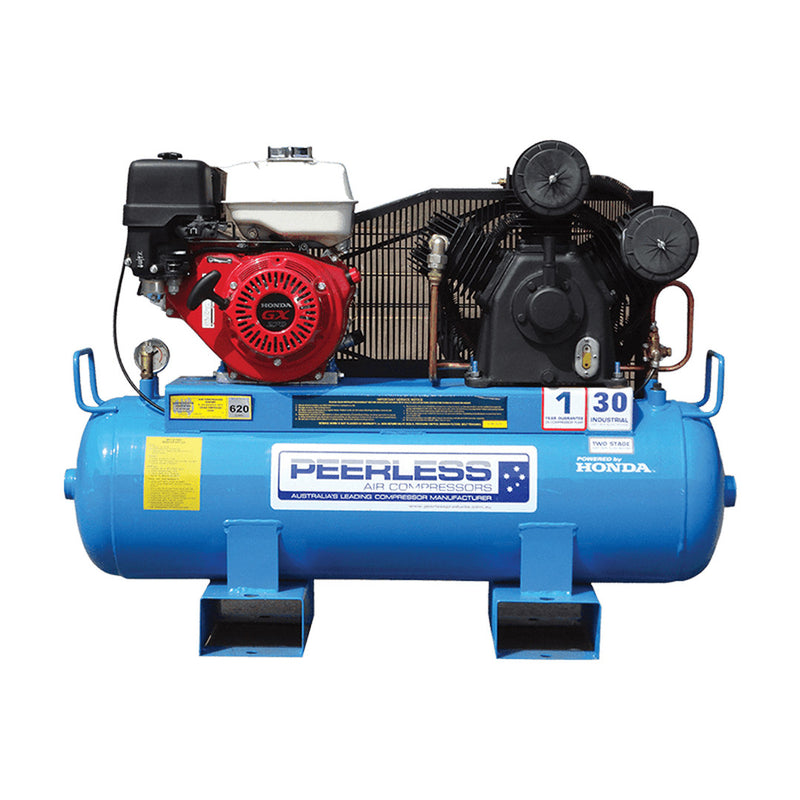

Peerless PHP30 Belt Drive Petrol Air Compressors

SKU: 00088

Peerless PHP30 Belt Drive Petrol Air Compressors

Regular price $7,370.00 AUD
Sale price $7,370.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Style

Other payment options

The Basics

The PHP30 is an suitable machine for post hole driving, we recommend this unit as a minimum for the contractor. Two stage high pressure means this compressor will pump up truck tyres with ease. This is a great size machine if you're not looking for anything too big but not too small where it's not going to perform the jobs you want to perform.

2" Tube Tank
With the performance of the 2" tube tank there is no down time on waiting for a receiver to fill, just instant pressure. If you lose pressure just take your finger off the trigger and then you’re back to full pressure again in less than 2 seconds. Being such a unique design, this frees up valuable space on or in the service truck/van which can help with any space or weight issues you may currently have.

Under / Over
The under & over model is extremely popular for saving space in the back of service vehicles or trailers. The greatest advantage of these and the tube models is their quick recovery time within 6 seconds you are back to full pressure and there is not much sense in pumping up a large air receiver before you pump up your tyres.

Electric start model pictured - Optional extra.

Electric start engine does not come with battery, leads or provisions for battery.
We can manufacture to your design plus there are other standard designs for each model.

Performance of all our belt driven air compressors are to AS4637.
