PEERLESS PHP15 Truckies Series Belt Drive Single Phase Air Compressors

SKU: 00100

PEERLESS PHP15 Truckies Series Belt Drive Single Phase Air Compressors

Regular price $2,780.00 AUD
Sale price $2,780.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Configuration

Other payment options

View full details
PEERLESS PHP15 Truckies Series Belt Drive Single Phase Air Compressors - GO Industrial - 00100

PEERLESS PHP15 Truckies Series Belt Drive Single Phase Air Compressors

Regular price From $2,780.00 AUD
Sale price $2,780.00 Regular price
Sold out

Details

Fitted with a high pressure water trap regulator, means you can set your air tool pressure to 90PSI without over pressuring and damaging your tools. Main tank outlet also on this model means you can use mains pressure for higher pressure applications like truck tyre inflation. Built to last with solid puncture proof wheels, solid metal belt guard, adjustable handle on the portable unit makes it for easy storage for tight spots. Smart start intake filters fitted (USA Made) assists in reducing AMP's draw for single phase power. These filters will suck in the air when the pump is at or close to full RPM, reducing electrical load onto the motor. This is critical feature for voltage fluctuations we face here in Australia.

Having one of the largest warranties on the market, 5 Year Pump and 1 Year Motor Warranty this puts your mind at rest when investing in a quality product.

We set the manufacturing operating pressure of this unit with a 120PSI cut-in to a 140PSI cut-out.

The 2065T Pump is capable of a maximum pressure of 175PSI. When adjusting any settings outside the manufacturing standards set by Peerless Products you must consult a Peerless Products technician on 03 5434 4200.

The advantages of a two stage compressor is that you do not lose volume of air at higher pressure. The air temperature is some 40% cooler than the standard type of air compressor therefore producing less condensation. These models come with all the standard features as the P17 and P14.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Peerless PHP15 Truckies Series Belt Drive Single Phase Air Compressors

Overview

Truckie's mate: 300L/min free air at high pressure. Dual outlets: water trap filter regulator, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.

The PHP15 is a 3.5HP two stage high pressure compressor is capable of truck tyre inflation with ease. These machines are fantastic for applications where large volumes of air where high pressure is required.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

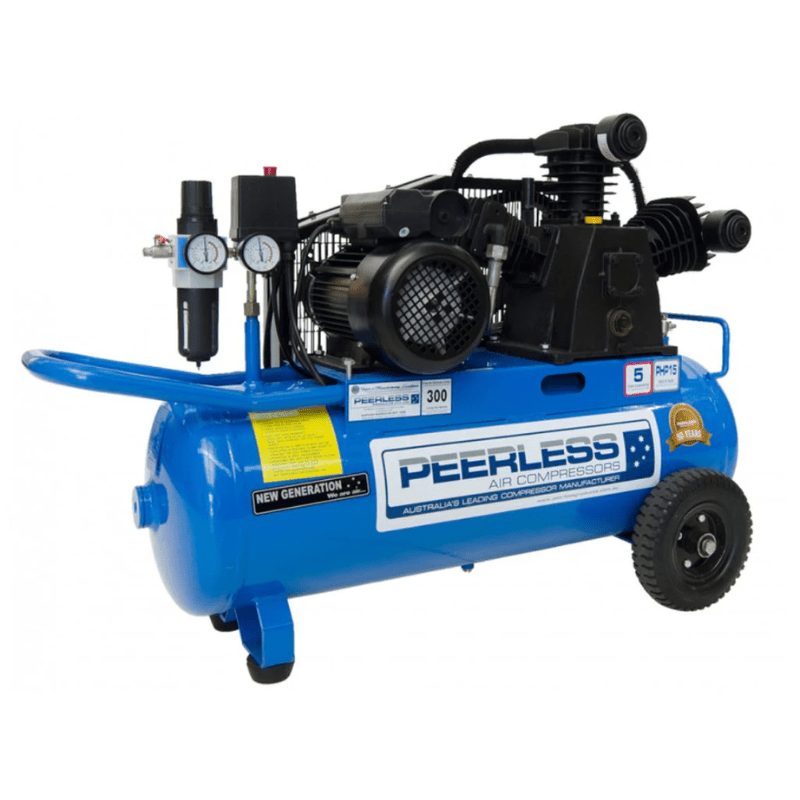

Peerless 00100

Code 00100
Model PHP15
Pump Displacement (CFM) 15 CFM
Free Air Delivery (LPM) 300 LPM
Max PSI 175
Motor HP 3.5
Warranty Pump 5 Year
Warranty Motor 1 Year
Tank Capacity (L) 55L
Pump up Time to 100PSI 1.15 - 1.20 Min
Dimensions (mm) Weight (kg) 1060Lx450Wx750H / 90kg
Cooling Method Air cooled
Pump Type 2065T 2 Stage
Cylinders 3.5
Pump Head Tension 12 FT LB 16.27 NM
Oil Capacity 1.375L
Pump RPM 1132
Outlet Thread 1/4" BSP & 1/2"BSP
Electricity 240V / 15A
Amps draw 13


Peerless 00105

Code 00105
Model PHP15FB
Pump Displacement (CFM) 15 CFM
Free Air Delivery (LPM) 300 LPM
Max PSI 175
Motor HP 3.5
Warranty Pump 5 Year
Warranty Motor 1 Year
Tank Capacity (L) 110L
Pump up Time to 100PSI 2.30 - 2.35 Min
Dimensions (mm) Weight (kg) 1090Lx450Wx890H / 112kg
Cooling Method Air cooled
Pump Type 2065T 2 Stage
Cylinders 3.5
Pump Head Tension 12 FT LB16.27NM
Oil Capacity 1.375L
Pump RPM 1132
Outlet Thread 1/4" BSP & 1/2"BSP
Electricity 240V / 15A
Amps draw 13

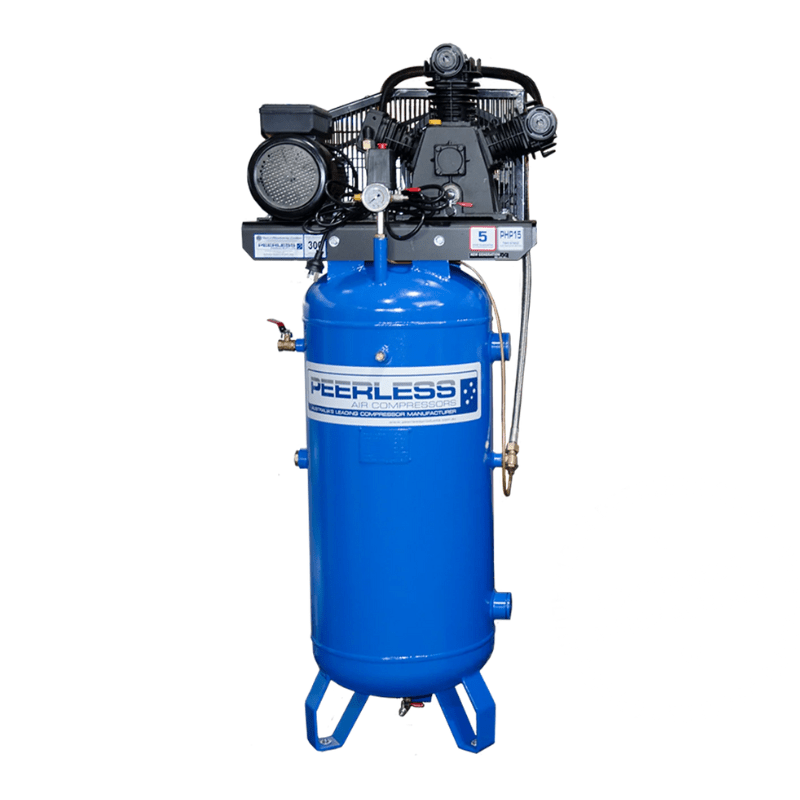

Peerless 00108

Code 00108
Model PHP15
Pump Displacement (CFM) 15 CFM
Free Air Delivery (LPM) 300 LPM
Max PSI 175
Motor HP 3.5
Warranty Pump 5 Year
Warranty Motor 1 Year
Tank Capacity (L) 110L
Pump up Time to 100PSI 2.30 - 2.35 Min
Dimensions (mm) Weight (kg) 610Lx450Wx1500H / 125kg
Cooling Method Air cooled
Pump Type 2065T 2 Stage
Cylinders 3.5
Pump Head Tension 12 FT LB16.27NM
Oil Capacity 1.375L
Pump RPM 1132
Outlet Thread 1/4" BSP & 1/2"BSP
Electricity 240V / 15A
Amps draw 13
