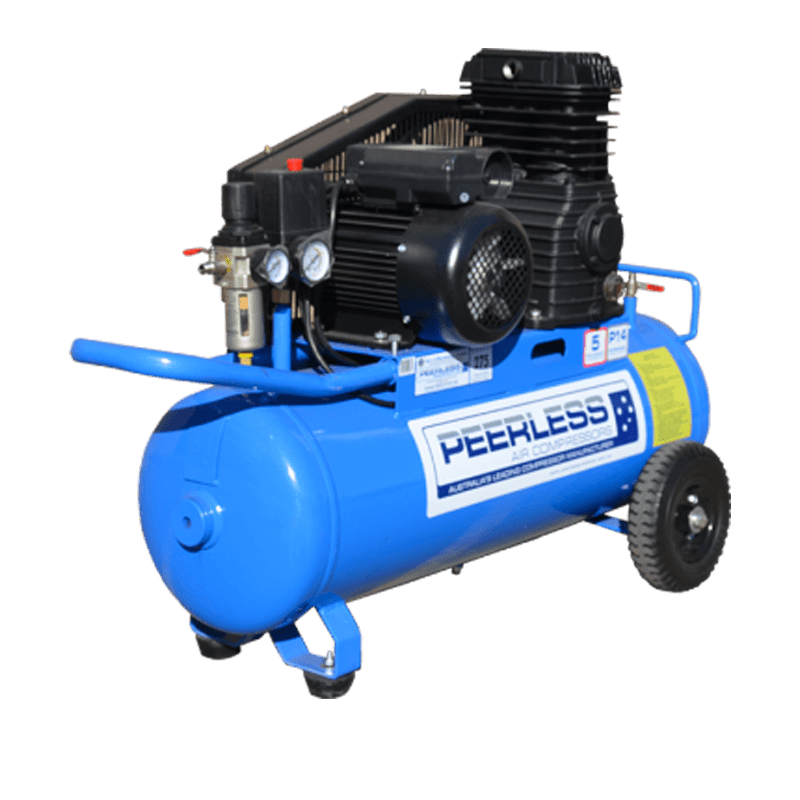

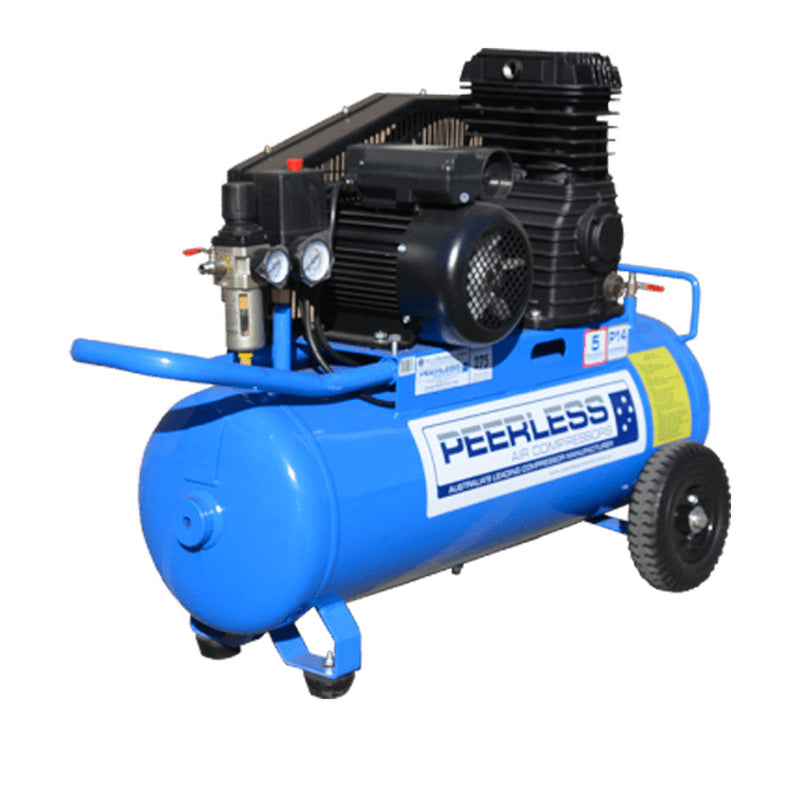

The Peerless P14 is one of the biggest single phase air compressors on a 10A power supply, producing 275 litres per minute of free air delivery. It has two outlets, one through the fitted water trap filter regulator with auto drain and one at the end of the tank for direct tank pressure. A slow revving cast iron pump running at 852 RPM makes it very quiet, and it is built to last with a solid belt guard, solid rubber wheels and a removable handle. A USA-made Smart Start intake filter helps protect the motor against low voltage starting by reducing starting amp draw by up to 40 percent. It carries a five year pump warranty. Peerless Products has been serving industry for over 60 years.
Features
Free air delivery: 275 litres per minute on a 10A supply
Dual outlets: Water trap filter regulator with auto drain plus direct tank pressure
Slow revving pump: Cast iron pump at 852 RPM for quiet running
Smart Start filter: USA-made intake filter reduces starting amp draw by up to 40 percent
Portability: Solid rubber wheels and a removable handle
Included accessories
Specifications
| Code | 00257 |
|---|---|
| Model | P14 |
| Pump Displacement | 14 CFM |
| Free Air Delivery | 275 LPM |
| Max PSI | 145 |
| Motor HP | 2.75 |
| Warranty Pump | 5 Year |
| Warranty Motor | 1 Year |
| Tank Capacity | 55L |
| Pump Up Time to 100PSI | 1.25 to 1.30 Min |
| Dimensions / Weight | 1050Lx430Wx770H / 85kg |
| Cooling Method | Air cooled |
| Pump Type | N75 |
| Cylinders | 2 |
| Pump Head Tension | 16 FT LB 22.4NM |
| Oil Capacity | 1L |
| Pump RPM | 852 |
| Outlet Thread | 1/4" BSP |
| Electricity | 240V / 10A |
| Amps Draw | 10 |
