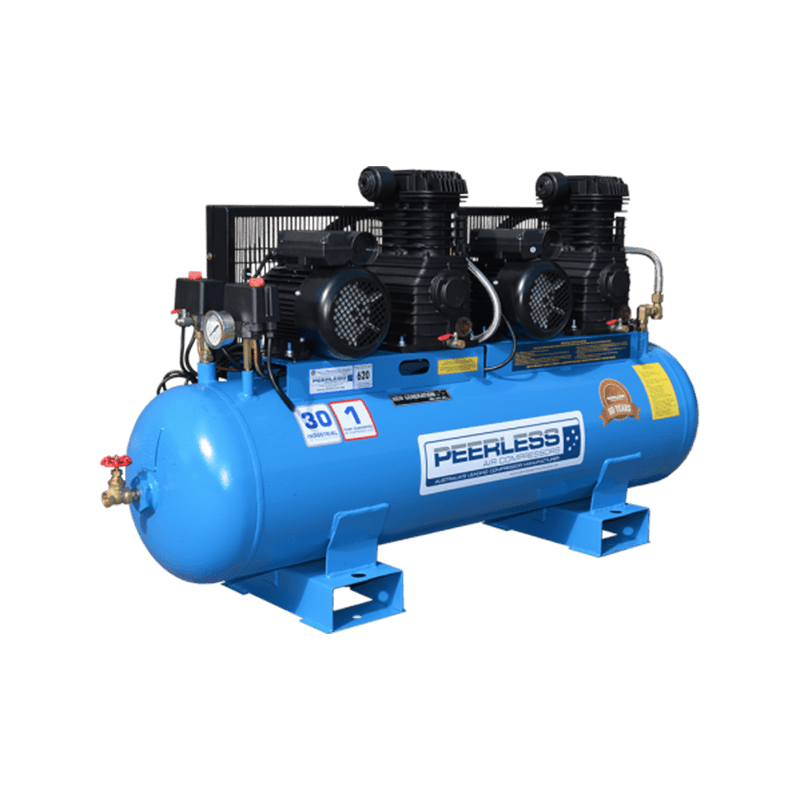

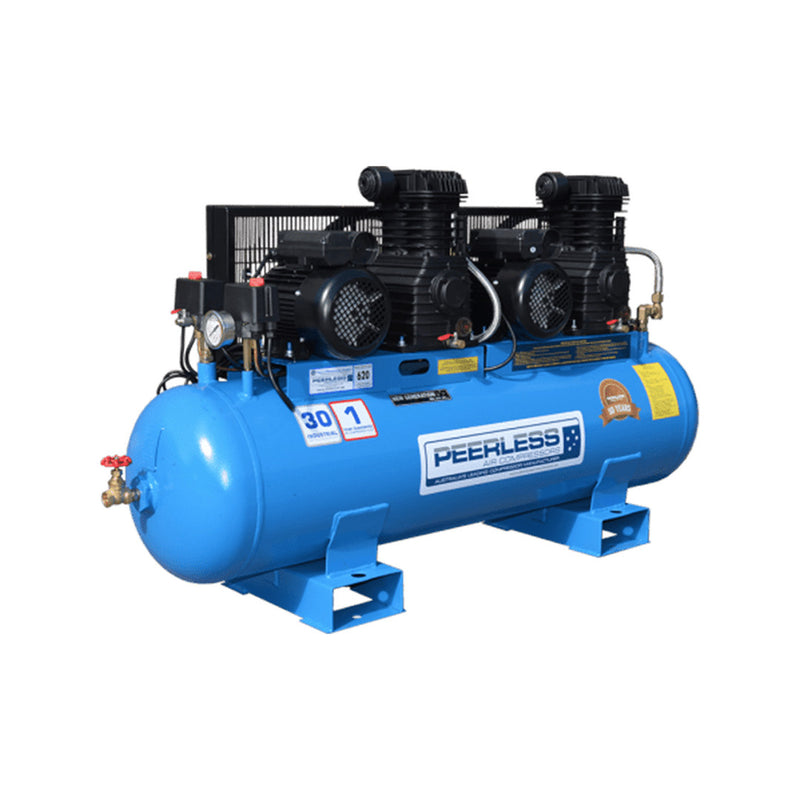

Peerless Air Compressor Single Phase Twin Pump PT30 00093-2

SKU: 00093-2

$4,897.20

Peerless Air Compressor Single Phase Twin Pump PT30 00093-2

 DATA SHEET



Technical Data

The PT30 is designed using two N75 pumps and 2.75 HP motors, coupled on a 150 litre air receiver. The pumps are designed to restart 5PSI apart and require two 10amp power lines (draws 2 x 10 amps) back to your fuse box to operate this machine.

It is very important to ensure that this machine is wired in correctly as failure to do so will cause motor failure. Producing a massive 550 litres of free air per minute making this an excellent single phase machine.

Specifications

FREE AIR DELIVERY (F.A.D) 550 LPM @ 100PSI
CYLINDERS 2
MAX PSI 145
MOTOR Electric 2.75 HP (x2)
PUMP N75 (x2)
PUMP RPM 963
POWER SUPPLY 10 AMP (x2) *Must be separate sockets
AMPS DRAW 20
TANK SIZE 150 L
DIMENSIONS (L X W X H) 1500mm x 400mm x 900mm
WEIGHT 165kg
PORTABLE / STATIONARY Stationary
