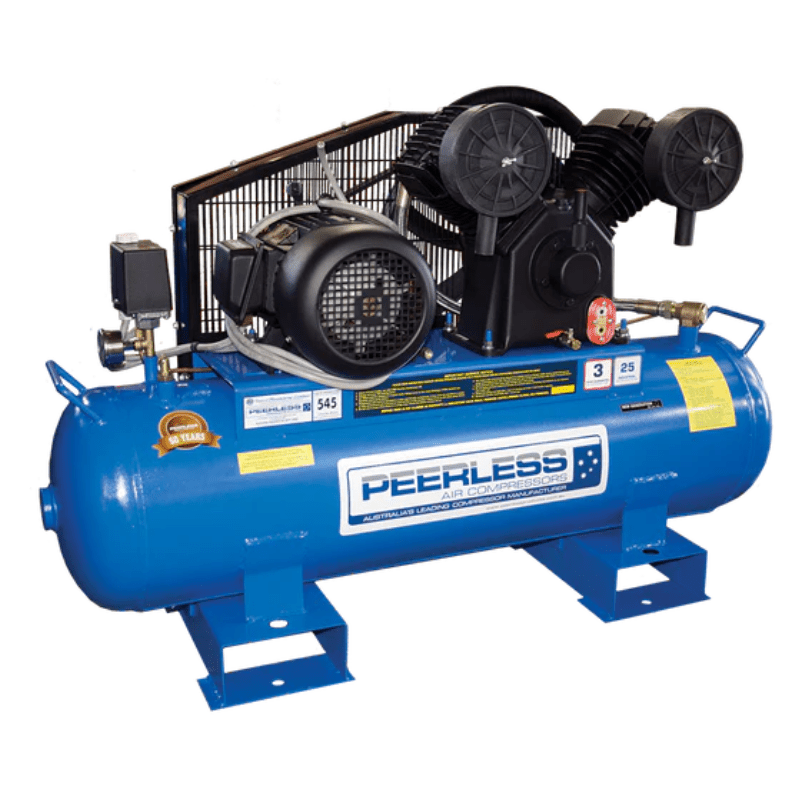

Peerless Air Compressor Three Phase High Pressure PV25 00555
SKU: 00555
$3,396
Peerless Air Compressor Three Phase High Pressure PV25 00555
 |
DATA SHEET |
Technical Data
The PV25 is a V cast iron pump single stage air compressor. It gives a massive 545 litres of free air, with a maximum operating pressure of 145PSI. This model is one of the most popular 3 phase models on the market and is ideal for a 2-3 man workshop.
Specifications
| FREE AIR DELIVERY (F.A.D) | 545 LPM @ 100PSI |
|---|---|
| CYLINDERS | 2 |
| MAX PSI | 145 |
| MOTOR | Electric 5.5 HP |
| PUMP | V90 |
| PUMP RPM | 1050 |
| POWER SUPPLY | 415v |
| AMPS DRAW | 6.6 |
| TANK SIZE | 110 L |
| DIMENSIONS (L X W X H) | 1300mm x 420mm x 870mm |
| WEIGHT | 165kg |
| PORTABLE / STATIONARY | Stationary |
