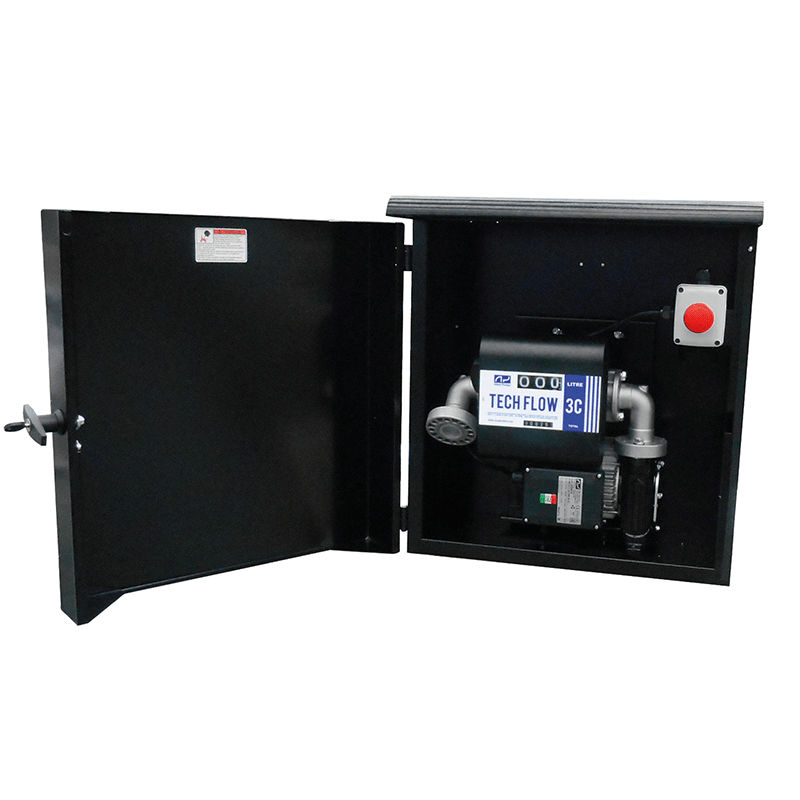

Adam by Piusi Pump 240V AC 60lpm Cabinet AR6A042AUS
PUMP 240V AC 60lpm CABINET AR6A042AUS
  • Adam by Piusi Pump 240V AC 60lpm Cabinet AR6A042AUS
  • PUMP 240V AC 60lpm CABINET AR6A042AUS
1 3

ADAM BY PIUSI Pump 240V AC 60lpm Cabinet

SKU: AR6A042AUS

ADAM BY PIUSI Pump 240V AC 60lpm Cabinet

$1,989.00 AUD
$1,989.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Available for pre-order only. Delivery lead time to be confirmed.

Other payment options

View full details
Adam by Piusi Pump 240V AC 60lpm Cabinet AR6A042AUS

ADAM BY PIUSI Pump 240V AC 60lpm Cabinet

$1,989.00 AUD
$1,989.00 AUD
Save $0
Sold out

Details

What's in the Box ?

  • CABINET: Heavy Duty Powder Coated Lockable Cabinet
  • PUMP: 240V AC 70lpm PA1 Pump,
  • FILTER: FT10XA Particulate / Water Filter with pressure gauge,
  • METER: 3 Digit Mechanical Meter,
  • HOSE: 6m x 19mm ID Hose Scr Male BSP Ends,
  • SWIVEL: Dual Plane Swivel,
  • NOZZLE: Auto Shut Off Nozzle

Features

  • Robust, painted, steel cabinet
  • Key lock cabinet to prevent unauthorised access
  • Emergency stop
  • The heavy duty 240V pump is mounted within the cabinet on anti vibration feet.
  • 30um Particulate and Water Removal Filter with Saturation Level Indicator Pressure Gauge
  • 4 Digit Mechanical Meter with non resettable totaliser.
  • Self-priming vane pump
  • Cast iron body
  • Sintered steel impeller
  • Acetal resin vanes
  • Integrated by-pass valve
  • Integrated stainless steel filter
  • Easily accessible ON-OFF switch,
  • Self-ventilated single phase motor
  • Thermal overload protection engineered into the electric motor
  • Continuous duty design.
  • Smart Stop Function, the pump will automatically switch off when the nozzle is placed back in the nozzle holster.
  • Auto Shut Off nozzle

    • Adam by Piusi Pump 240V AC 60lpm Cabinet

    Overview

    Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the AR6A042AUS, from GO Industrial, is a Cabinet Mounted 240V 60lpm Dispensing Filtration and Metering unit designed to be used with Self Bunded and Single Wall Tanks.  The AR6A042AUS is suitable for the dispensing, filtration and metering of Diesel.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet PUMP 240V AC 60lpm CABINET AR6A042AUS
    • GO MANUAL Adam Piusi PUMP 240V AC 60lpm CABINET AR6A042AUS
    • GO Manual Piusi E300

    Specifications

  • 240V AC 2.9 amp Pump
  • Flow Rate: 60 l/min
  • Inlet and Outlet: 1" BSP Female
  • 4m x 19mm ID Hose
  • IP55 protection
  • Class F insulation
  • Cabinet Dimensions: 502mm L x 297mm W x 564mm H - 29kg
  • Package Dimensions: 590mm L x 390mm W x 590mm H - 29kg
  • Suitable for use with diesel fuel

      • Features

    • Robust, painted, steel cabinet
    • Key lock cabinet to prevent unauthorised access
    • Emergency stop
    • The heavy duty 240V pump is mounted within the cabinet on anti vibration feet.
    • 30um Particulate and Water Removal Filter with Saturation Level Indicator Pressure Gauge
    • 4 Digit Mechanical Meter with non resettable totaliser.
    • Self-priming vane pump
    • Cast iron body
    • Sintered steel impeller
    • Acetal resin vanes
    • Integrated by-pass valve
    • Integrated stainless steel filter
    • Easily accessible ON-OFF switch,
    • Self-ventilated single phase motor
    • Thermal overload protection engineered into the electric motor
    • Continuous duty design.
    • Smart Stop Function, the pump will automatically switch off when the nozzle is placed back in the nozzle holster.
    • Auto Shut Off nozzle
