Static Earthing Reel Lockable LSR100
  • Static Earthing Reel Lockable LSR100
1 1

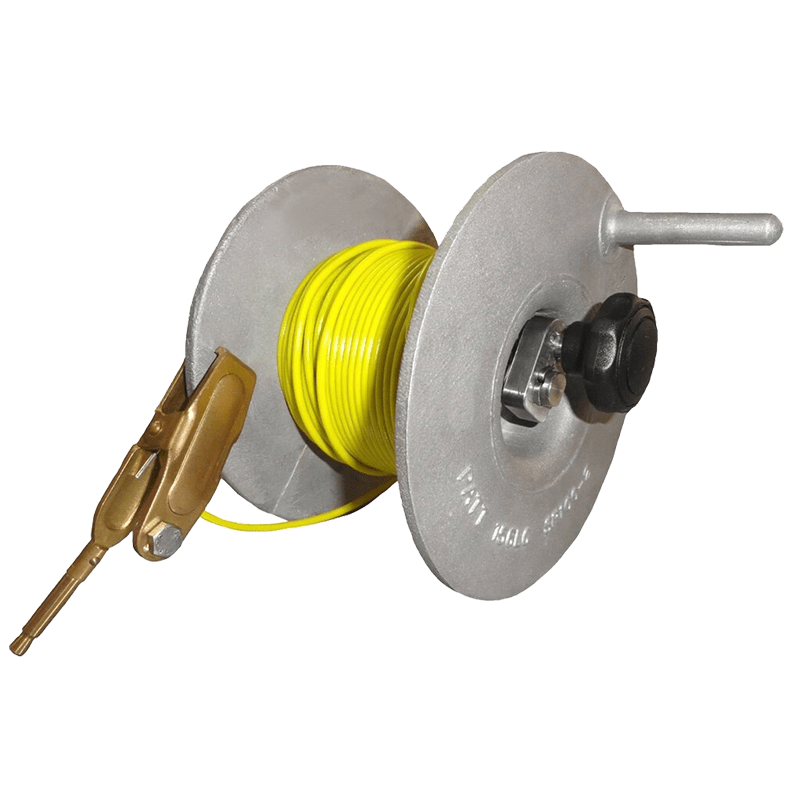

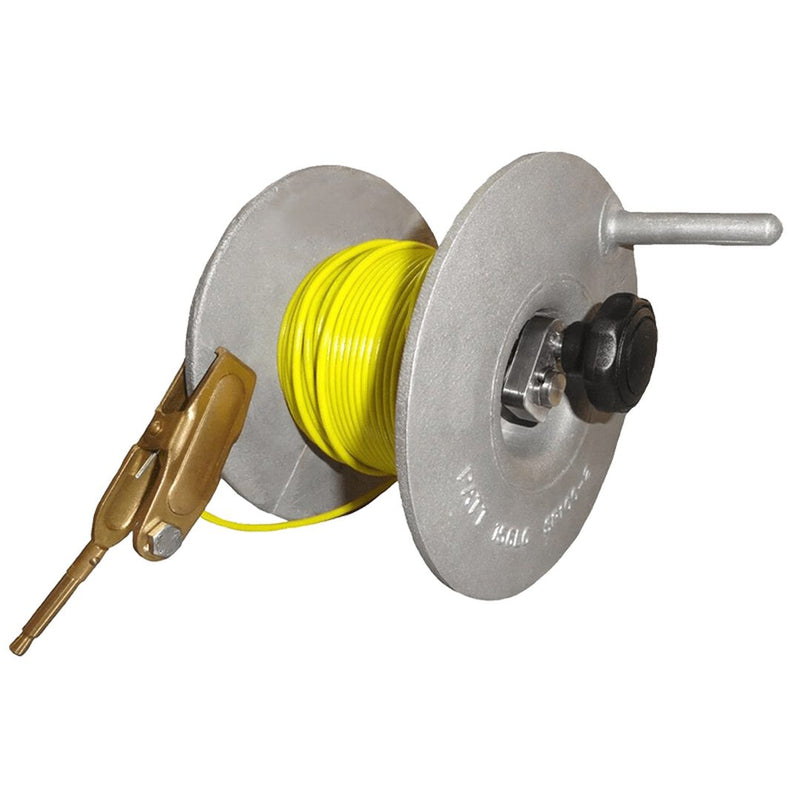

LIQUIP Static Earthing Reel Lockable LSR100

SKU: LSR100

LIQUIP Static Earthing Reel Lockable LSR100

$616.00 AUD
$616.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
Static Earthing Reel Lockable LSR100

LIQUIP Static Earthing Reel Lockable LSR100

$616.00 AUD
$616.00 AUD
Save $0
Sold out

Details

The LSR100 Lockable Static Reel, from GO Industrial, has been developed to provide users with a safe and reliable static earthing reel that when locked won’t inadvertently unwind while a vehicle is moving.

The new locking mechanism design is another step further in our constant drive to improve safety.

Dismantle and Testing

  • Test continuity regularly according to your company standards.
  • Always remove the cable, brush spring and brush before withdrawing the shaft and fit the shaft first when reassembling.
  • Install as per installation instructions.

Features

  • Reliable continuity is ensured through the use of a carbon brush on a stainless steel shaft. Stainless steel components are used to ensure corrosion does not break continuity.
  • Simple to use locking mechanism prevents the static reel from unwinding due to vibration.
  • Comes supplied with 30m of yellow cable for increased visibility at night.
  • Aviation spec brass clip
  • Manual operation, as spring-rewind types have caused accidents when inadvertently released.

    • Liquip Static Earthing Reel Lockable LSR100

    Overview

    The LSR100 Static reel, from GO Industrial, is a lockable static reel complete with 30m of yellow cable and bonding clip.

    Static reels are typically used when product is transferred from one tank to another e.g. when pumping between a tanker and storage tank or when fuelling aircraft.  Static Reels are used to bond two pieces of equipment to allow static charge to be safely equalised.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Warranty

        Read our complete warranty terms & conditions here.

        Warranty

        Read our complete warranty terms & conditions here.

        Secure Payment

        All our online payment methods are secured.

        Secure Payment

        All our online payment methods are secured.

        • GO Data Sheet Static Reel LSR100

        Specifications

        • Nominal Reel Resistance: 5 ohms
        • Meets AS 2809: 2 - Maximum end-to-end resistance of 10 ohms.
        • Carbon Brush: Runs in sealed section to eliminate dirt and corrosion.
        • Shaft: Has grease reservoir for all-of-life lubrication.

        Materials:

        • Body: Aluminium
        • Cable: Comes fitted with 30m of Yellow PVC coated galvanised wire
        • Shaft: Stainless steel
        • Brush: Carbon
        • Static Clip: Aviation spec brass clip
        • Cable Guide: Zinc plated steel
        • Weight: 2.0 kg

          Features

        • Reliable continuity is ensured through the use of a carbon brush on a stainless steel shaft. Stainless steel components are used to ensure corrosion does not break continuity.
        • Simple to use locking mechanism prevents the static reel from unwinding due to vibration.
        • Comes supplied with 30m of yellow cable for increased visibility at night.
        • Aviation spec brass clip
        • Manual operation, as spring-rewind types have caused accidents when inadvertently released.
