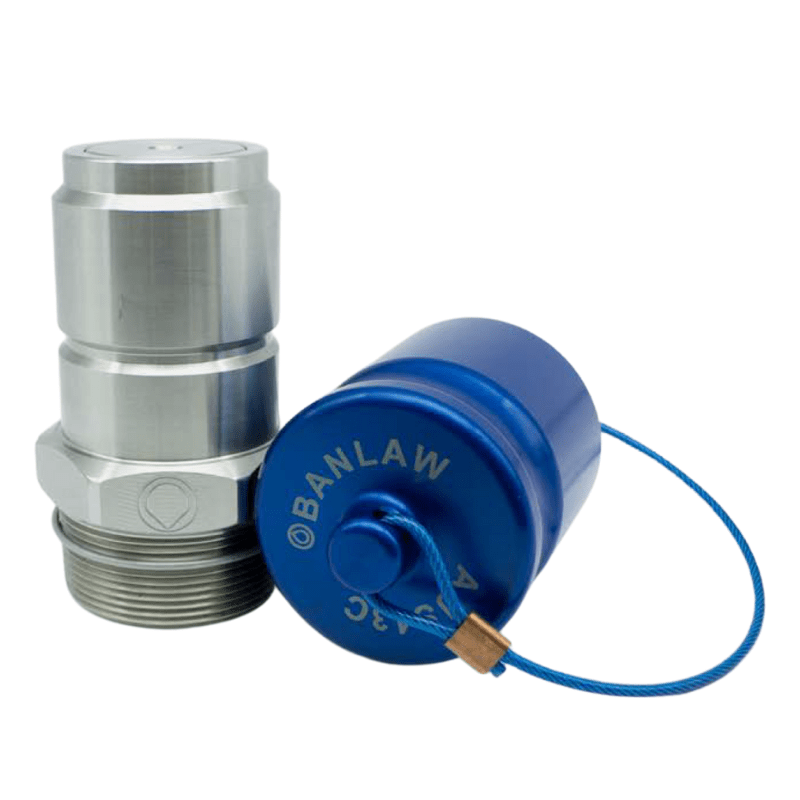

Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

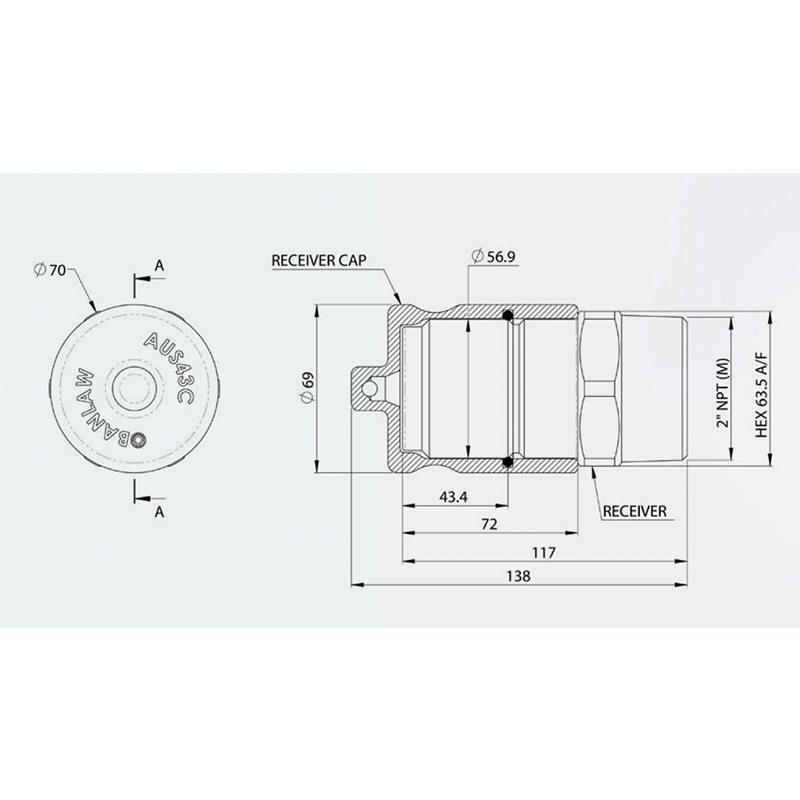

Dimensions Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range
  • Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range
  • Dimensions Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range
1 3

Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

SKU: BRM43KL

Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

$462.00 AUD
$462.00 AUD
Inclusive of GST. Shipping calculated at checkout.
Title

Other payment options

The Basics

Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

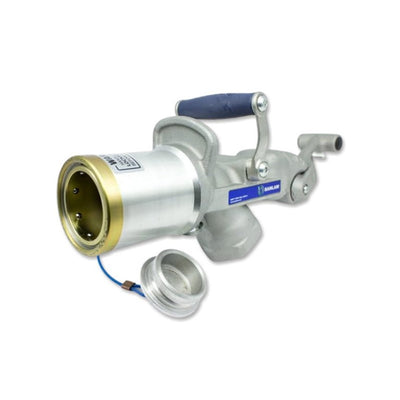

Banlaw 43 Series 1000lpm Dry Break Receivers include a range of quality male refuelling couplings (couplers) that attach to the inlet of the vessel to be filled using a Banlaw 1000 Series Dry Break Diesel Refuelling Nozzle

Banlaw 43 Series 1000lpm Dry Break Receivers deliver industry leading performance, safety & durability.  Banlaw manufactures a variety of Dry Break receiver configurations to suit various applications, including the Banlaw 43 Series 1000lpm receivers which are compatible with refuelling nozzles supplied by other OEM’s.

Banlaw receivers are manufactured from the highest quality materials, including stainless steel, to ensure they withstand harsh everyday treatment. This makes them less-prone to snapping-off or leaking than receivers made from softer materials.

Refuelling problems related to a specific machine should be overcome by changing the receiver, not the nozzle, in most cases.

A variety of accessories are available to allow the receiver to be adapted to fuel tanks or remote filling applications, including (replacement) dust caps to prevent the build-up of contamination on the receiver. Dry break receiver caps reduce the degree of contamination ingress into your fuel tank.

Receiver Spring Settings

Medium – The industry standard pressure setting.  General receiver that is commonly fitted directly to the fuel tank.

Light – Used to help prevent premature nozzle shut off caused by long pipework, elbows, flow control valves, or significant elevation of tank above receiver location.

Heavy – Assists the nozzle to shut off earlier applying less pressure on the tank at shutoff. For tanks prone to overfill, or more sensitive to pressure. Common on sites where heavier nozzle spring settings are the standard.

  • GO Data Sheet Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range
  • GO Data Sheet Banlaw Refuelling Systems
  • GO Manual Banlaw 800 Series Dry Break Diesel Receiver Range

Shipping & Returns

Add text about your shipping policy

Shipping & Returns

Add text about your shipping policy

Warranty

Add text about your product warranty

Warranty

Add text about your product warranty

Secure Payment

Add text about your payment

Secure Payment

Add text about your payment

View full details
Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

From $462.00 AUD
From $462.00 AUD

Receiver Spring Settings

Medium – The industry standard pressure setting.  General receiver that is commonly fitted directly to the fuel tank.

Light – Used to help prevent premature nozzle shut off caused by long pipework, elbows, flow control valves, or significant elevation of tank above receiver location.

Heavy – Assists the nozzle to shut off earlier applying less pressure on the tank at shutoff. For tanks prone to overfill, or more sensitive to pressure. Common on sites where heavier nozzle spring settings are the standard.

The Basics

Banlaw 43 Series 1000lpm Dry Break Diesel Receiver Range

Banlaw 43 Series 1000lpm Dry Break Receivers include a range of quality male refuelling couplings (couplers) that attach to the inlet of the vessel to be filled using a Banlaw 1000 Series Dry Break Diesel Refuelling Nozzle

Banlaw 43 Series 1000lpm Dry Break Receivers deliver industry leading performance, safety & durability.  Banlaw manufactures a variety of Dry Break receiver configurations to suit various applications, including the Banlaw 43 Series 1000lpm receivers which are compatible with refuelling nozzles supplied by other OEM’s.

Banlaw receivers are manufactured from the highest quality materials, including stainless steel, to ensure they withstand harsh everyday treatment. This makes them less-prone to snapping-off or leaking than receivers made from softer materials.

Refuelling problems related to a specific machine should be overcome by changing the receiver, not the nozzle, in most cases.

A variety of accessories are available to allow the receiver to be adapted to fuel tanks or remote filling applications, including (replacement) dust caps to prevent the build-up of contamination on the receiver. Dry break receiver caps reduce the degree of contamination ingress into your fuel tank.
