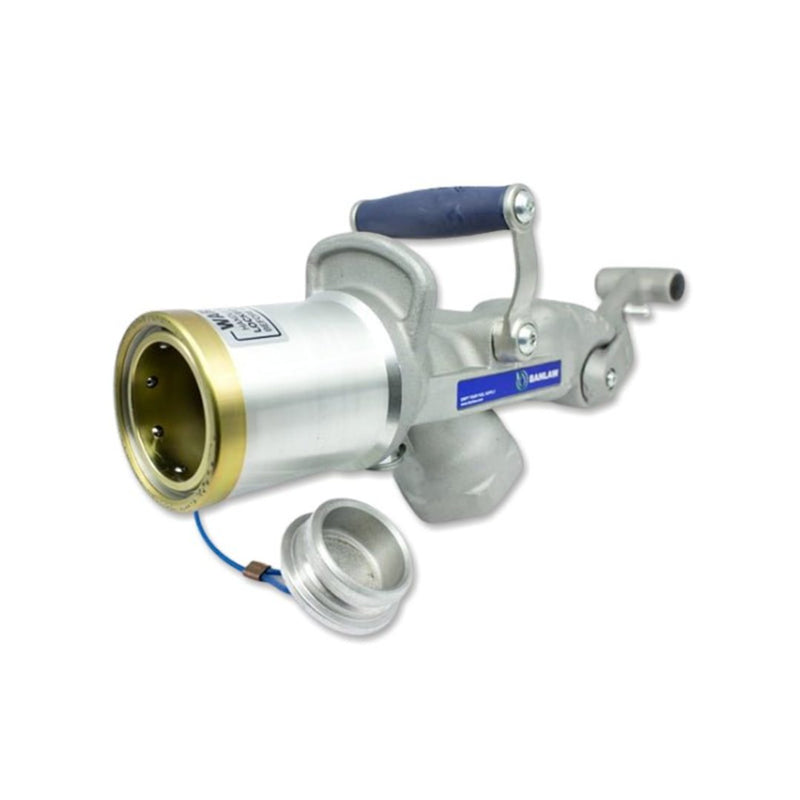

BANLAW 1000 Series Dry Break Diesel Refuelling Nozzles
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

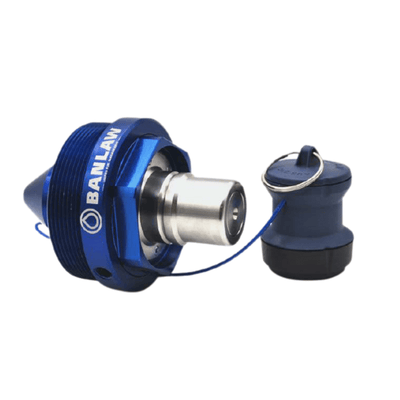

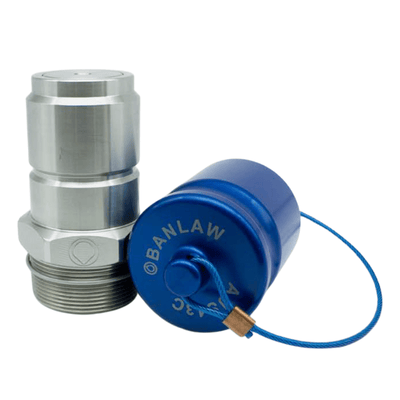

Banlaw 1000 Series dry break refuelling nozzles allow equipment filling speeds to be maximised. Considered the pinnacle in dry break automatic shut-off hardware, these durable nozzles reduce fuelling process times and enable significant productivity gains, with flow rates up to 1,000 litres per minute. They are compatible only with Banlaw 1000lpm 43 Series receivers, such as the BRM43K and BFCV43 Series products.
Banlaw nozzles offer high reliable flow rates and a proven safety record, with a dependable ball locking mechanism so nozzles cannot fly off and a Dry Break design that minimises leaks and spills. Predominantly of all-metal construction, they have a dramatically extended serviceable life.
Banlaw produces Dry Break Nozzles in a variety of spring settings so refuelling pressure can be customised for a site or a specific machine. The Medium setting is the industry standard, the Light setting shuts off at lighter back pressure for specialist situations such as large thin-walled tanks, and the Heavy setting overcomes flow resistance from multiple fuelling components and long remote-fill pipework. Refuelling problems related to a specific machine should usually be overcome by changing the receiver rather than the nozzle.
Features
- 1000 L/min Flow: The fastest nozzle Banlaw builds, for cutting refuelling time on large mining and rail equipment.
- Dry Break Connection: Breaks dry so there is no fuel spill or spray at the coupling, even at full flow.
- Automatic Shut-Off: Standard and cold-temperature models shut off automatically when the tank fills, provided matched receivers and tank vents are fitted. The Bulk Fill model BAMS6 does not have automatic shut-off.
- 43 Series Receivers Only: Couples only with Banlaw 1000 L/min 43 Series receivers such as BRM43K and BFCV43, so check the receiver before ordering.
- All-Steel Construction: Steel mating parts and a fully repairable design, so with regular maintenance these last for decades.
- Six Spring Settings: Medium/light through extra heavy, so the nozzle can be matched to receiver and line pressure on site.
Included accessories
Specifications
| MAXIMUM FLOW RATE | 1000 L/MIN | 264 GPM |
|---|---|
| INLET | 2 IN NPTF |
| FLUID | Diesel |
| COUPLING TYPE | Dry break |
| AUTOMATIC SHUT-OFF | Fitted to all variants except the Bulk Fill model BAMS6 |
| SHUT-OFF METHOD | Requires correctly matched Banlaw receivers and tank vents |
| RECEIVER COMPATIBILITY | Banlaw 1000 L/min 43 Series receivers only, such as BRM43K and BFCV43 |
| SPRING SETTINGS | Medium/light, medium, medium/heavy, heavy, extra heavy |
| VARIANTS | Bulk fill, standard, cold temperature |
| CONSTRUCTION | All-steel mating parts, fully repairable |
| LOCKING | Ball locking mechanism |
| SUPPLIED WITH | Dust plug |
