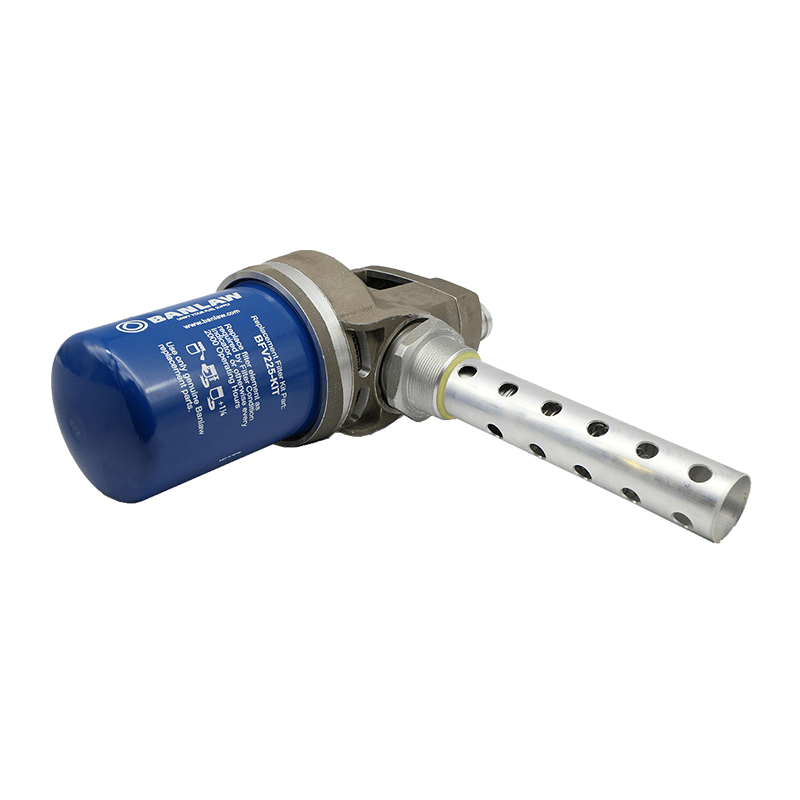

BANLAW 3um Vents Fine Filtered
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Banlaw vents are available in unfiltered, filtered and fine filtered variants. All Banlaw vents are manufactured with a float valve to shut off refuelling at a specific ullage, and are designed to release air from the fuel tank rapidly during high-speed refuelling while avoiding premature nozzle shut-off, fuel spills and sprays.
The patented Fine Filtered Vent prevents damaging airborne contaminants from entering fuel tanks and other fluid storages while maximising the efficiency of high-speed refuelling. It filters airborne particles through a 3 micron absolute filter while bypassing outgoing air past the filter element, which avoids the tank over-pressurisation that can occur when standard breather filters block, and a visual filter condition indicator monitors filter health. The volume of potentially contaminated air entering a tank equals the volume of fuel being dispensed, and installing ultra-fine filtered tank vents is recommended by many major diesel engine OEMs and has been proven to significantly increase the life of fuel systems and engine components.
Productivity benefits include increased machine efficiency, minimised fuel burn, optimised time between service events, reduced risk of breakdowns and failures, extended equipment life, and controlled emissions.
Features
Fine Filtration: excludes airborne particles 3 microns or larger.
High Flow: allows refuelling flow rates of up to 800 lpm (211 gpm).
Float Valve: includes a float valve shut-off for automatic refuelling shut-off systems.
Long Service Life: lasts up to 2,000 machine hours, thanks to a large filter canister and filtering only incoming air.
Condition Indicator: a visual filter condition indicator is fitted, with an electronic option also available.
Pressure Relief: an emergency pressure relief valve.
