DONALDSON 10 Element Filter Head DN100 4" ANSI 150 2271LPM - GO Industrial - P568933

DONALDSON 10 Element Filter Head DN100 4" ANSI 150 2271LPM

SKU P568933
Afterpay Zip PayPal LeaseGO
$8,916.40
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

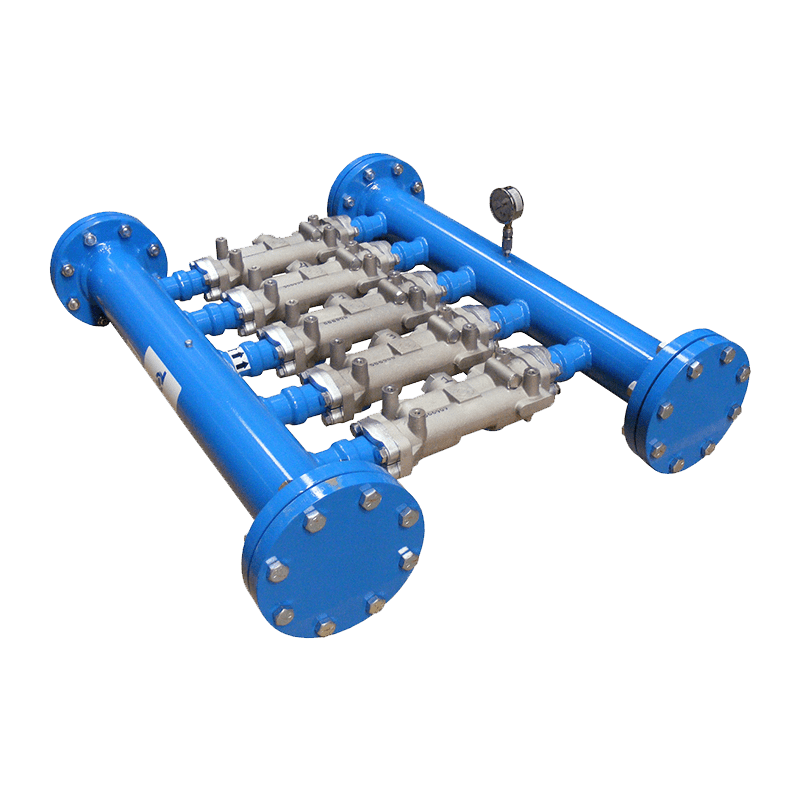

Donaldson Filter Head 10 Element DN100 (4") ANSI 150 2271LPM

Overview

  • Fluid Compatibility: All diesel fuels and lubricants
  • Filter Quantity: 10 (sold separately)

Donaldson Clean Solutions Filter Manifolds expand capacity and increase flow rate beyond the capability of a single or dual filter head. The Donaldson P568933 10 Filter Manifold is constructed of heavy duty carbon steel and handles flow rates of up to 600 gpm / 2271 lpm.

Dividing the flow between multiple filters plumbed in parallel slows the flow rate per filter, reducing pressure drop and extending filter life.

A variety of filter medias are available to meet the specific application requirements.

    Features

    Features

  • Fast, easy and safe to service
  • Requires no electrical or air hook-ups
  • Large capacity in small foot print
  • Flexible mounting options (horizontal or vertical)
  • Cost effective high capacity system
    • Specifications

    Filter Quantity

    10

    Mounting Connection

    4" ANSI 150 Flanges

    Max. Flow Range

    600 gpm / 2271 lpm

    Shipping Weight

    390 lbs / 177 kg

    Pressure Gauges

    2 pcs 0 -160 psi / 0 -11 bar gauges included

    Sampling

    Includes up-stream and down- stream mini-mess sampling ports with M16 x 2 thread

    Fluid Compatibility

    All diesel fuels and lubricants

    Working Pressure

    ANSI B16.5 flange rating 290 psi / 2413 kPa / 24.1 100 °F / 38 °C

    Construction

    Painted carbon steel pipe with aluminum heads

    Compatible Filters

    DBB8664, DBB8665, DBB8666, DBB8777, DBB0248

    Operating Temperature

    -40 to 245 °F / -40 to 120 °C
    Data Sheet
