DONALDSON Single DN32 Filter Head 1 1/4" NPT Female
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

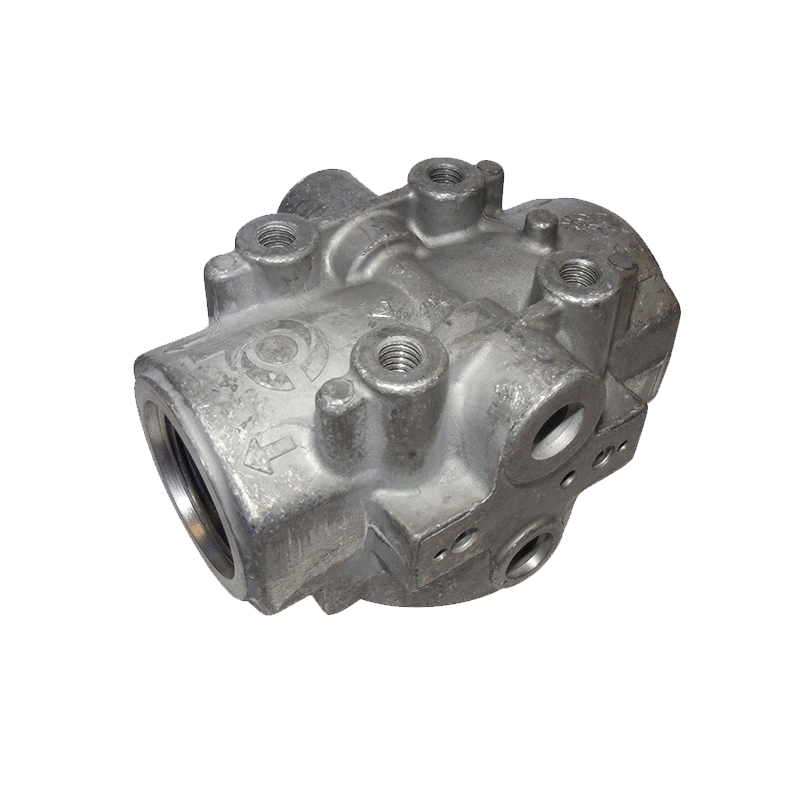

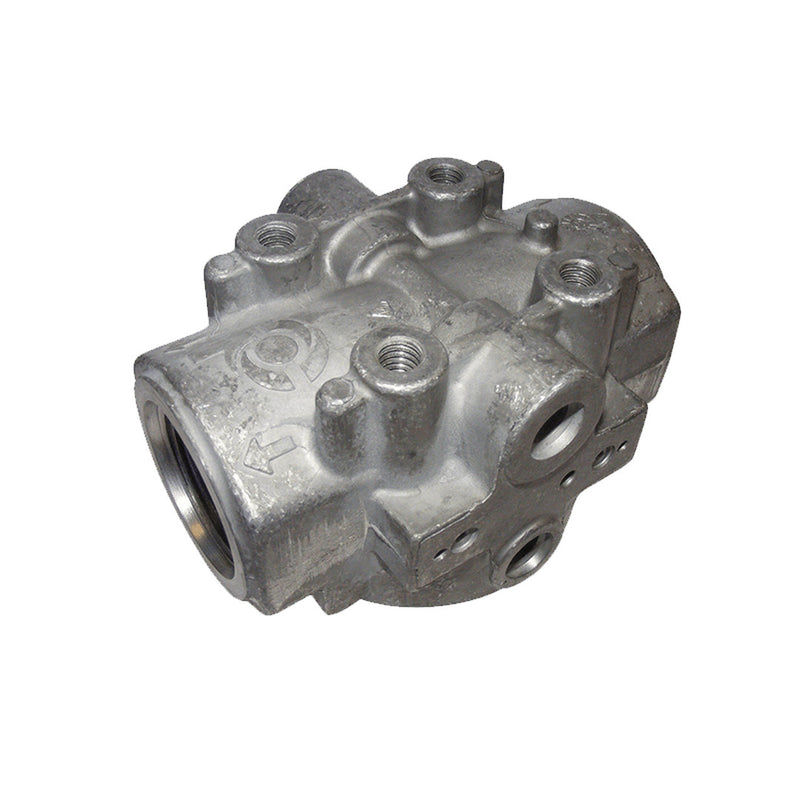

The Donaldson P570330 Clean Solutions filter head features robust aluminium construction with steel inserts to minimise metal to metal bonding, or galling, between the head and the filter, even when used with diesel fuel. The threaded insert contains an O-ring seal that eliminates cross contamination from the unfiltered to the clean side of the fitted elements, and Viton seals are compatible with a wide range of fluids and maintain their integrity in cold weather.
Features
- 1 1/4 NPT Ports: Inlet and outlet are both 1 1/4 NPT, sized for higher flow than the SAE-16 heads.
- Twin Indicators: Ported for two differential pressure indicators, so the element is changed on condition rather than on a calendar.
- Single Element: Takes one 1 3/4-12 UN spin-on, so the filtration rating is set by the element you choose.
- No Bypass: There is no bypass valve, so every litre goes through the media rather than around it.
- DN32 Body: 127 mm wide and 92 mm high, so it fits the same cabinet space as the smaller heads.
Included accessories
Specifications
| PRODUCT FAMILY | Bulk Filtration |
|---|---|
| PRIMARY APPLICATION | Use with 2 differential pressure indicators |
| THREAD SIZE | 1 3/4-12 UN |
| INLET SIZE | 1 1/4 NPT |
| OUTLET SIZE | 1 1/4 NPT |
| HEIGHT | 92.2 MM | 3.63 IN |
| WIDTH | 127.76 MM | 5.03 IN |
| BYPASS VALVE | No |
| COUNTRY OF ORIGIN | United States |
Data Sheet
