FMS PIUSI 240V AC PIUSI MC Box 80 Users
  • FMS PIUSI 240V AC PIUSI MC Box 80 Users
1 1

At a Glance

  • Electronic fluids management console.
  • Low cost, yet feature packed, electronic fluids management system
  • Provides control over dispensing of liquids and reports on the date / time / volume of liquid dispensed, the vehicle details and operator details
  • PC based software with USB on site data transfer
  • Additional purchase code PIUSI-SOFTWARE-BUNDLE provides the required PC Based Software, Red Data Download / Managers Key, 10 x Yellow User Keys and a PC USB Interface.
  • Cost effective upgrade to an existing dispensing system to provide security and electronic reporting of fuel dispensed
  • Up to 80 users
  • Memory for 255 transactions
  • GO Data Sheet Piusi FMS MC BOX
  • GO Data Sheet Piusi FMS SSM 2018 Software
  • GO Manual Piusi FMS MC BOX
  • GO Manual Piusi FMS MC BOX Console Software
  • GO Manual Piusi FMS SSM 2018 Software
  • GO Parts Piusi FMS MC BOX



    • Package Size - 480mm L x 370mm W x 265mm H - 5.3kg
    • Console Size - 286mm L x 163mm W x 267mm H
    • Power - 240V AC 50hz
    • Maximum Power Supply - 6.5 amps
    • Number of Users - 80
    • Transaction Memory - 255
    • Suitable for use with all fluids.  Fluids compatibility will be determined by the pulse meter used.
    • Integrated roller shutter to provide sun protection to the screen and pin pad assembly
    • Console interfaces include:
      • External Nozzle Switch
      • Automatic Tank Gauge
      • Pulse Meter Input
      • Pump Relay
    • The Piusi MC Box will:
      • Authorise dispensing of fluids to approved users
      • Authorisation can be via a PIN or Yellow User Key (i Button)
      • Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)
      • Allow for the dispensing of preset volumes of fluid
      • Operate an external nozzle switch
      • Manage a relay that will turn off the pump in the event of minimum level in the tank
    • Data can be downloaded using one of the following methods
      • i Button - Red Managers Key i Button that interfaces with a USB Key Reader to your site PC
      • Direct PC Connection - RS Converter with USB Plug for direct PC connection.  The maximum distance of the PC from the Console is 1000m for direct connection
      • Printer - A Printer can be connected using a RS Converter



    pagination here

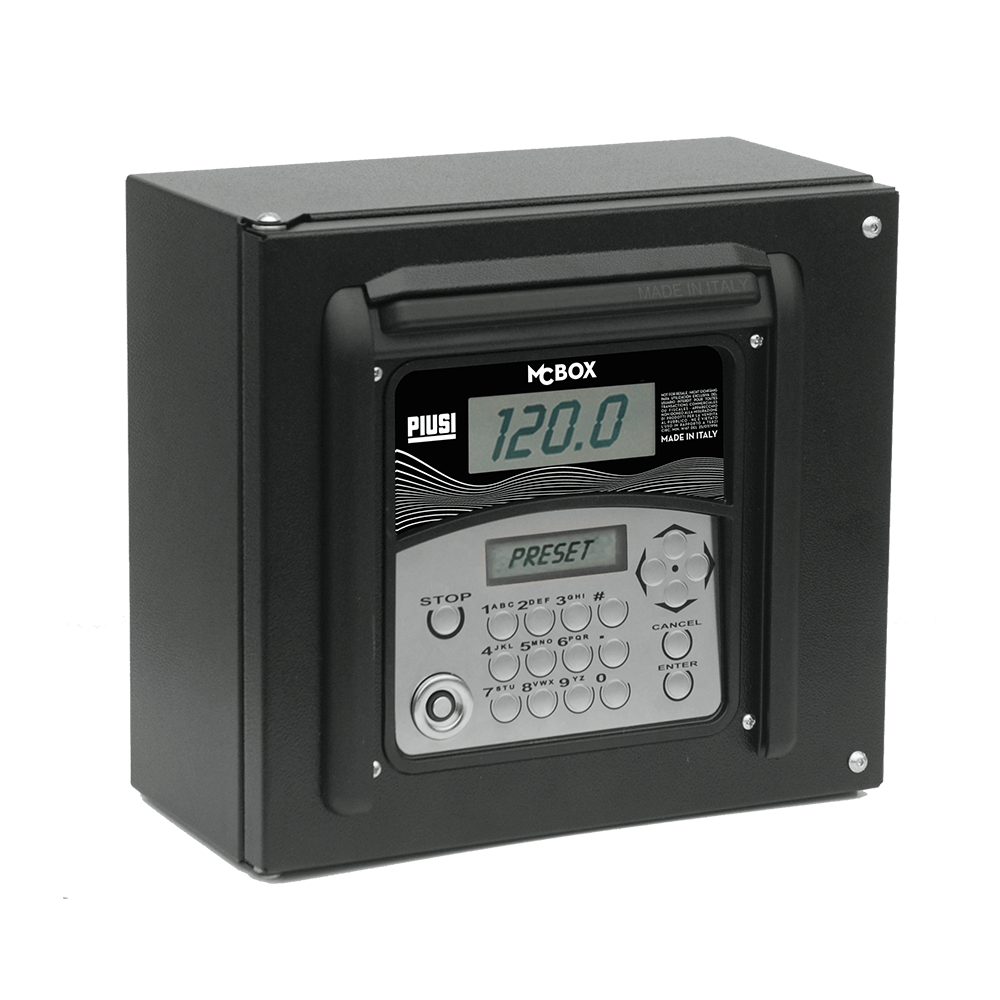

FMS PIUSI 240V AC PIUSI MC Box

SKU: F1398000C

FMS PIUSI 240V AC PIUSI MC Box

$2,750.00 AUD
$2,750.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

The PIUSI MC BOX, from GO Industrial, is a simple, cost effective, electronic fluids management system that allows Fleet Managers to control and record the dispensing of diesel on site.  The Piusi MC Box transfers data to a site PC using the supplied Red Managers Key.

The Piusi MC Box is designed for for small and medium sized businesses that use their own tanks for refuelling their work vehicles with diesel.  Authorisation to access fuel is via with a PIN or Yellow User Key.
