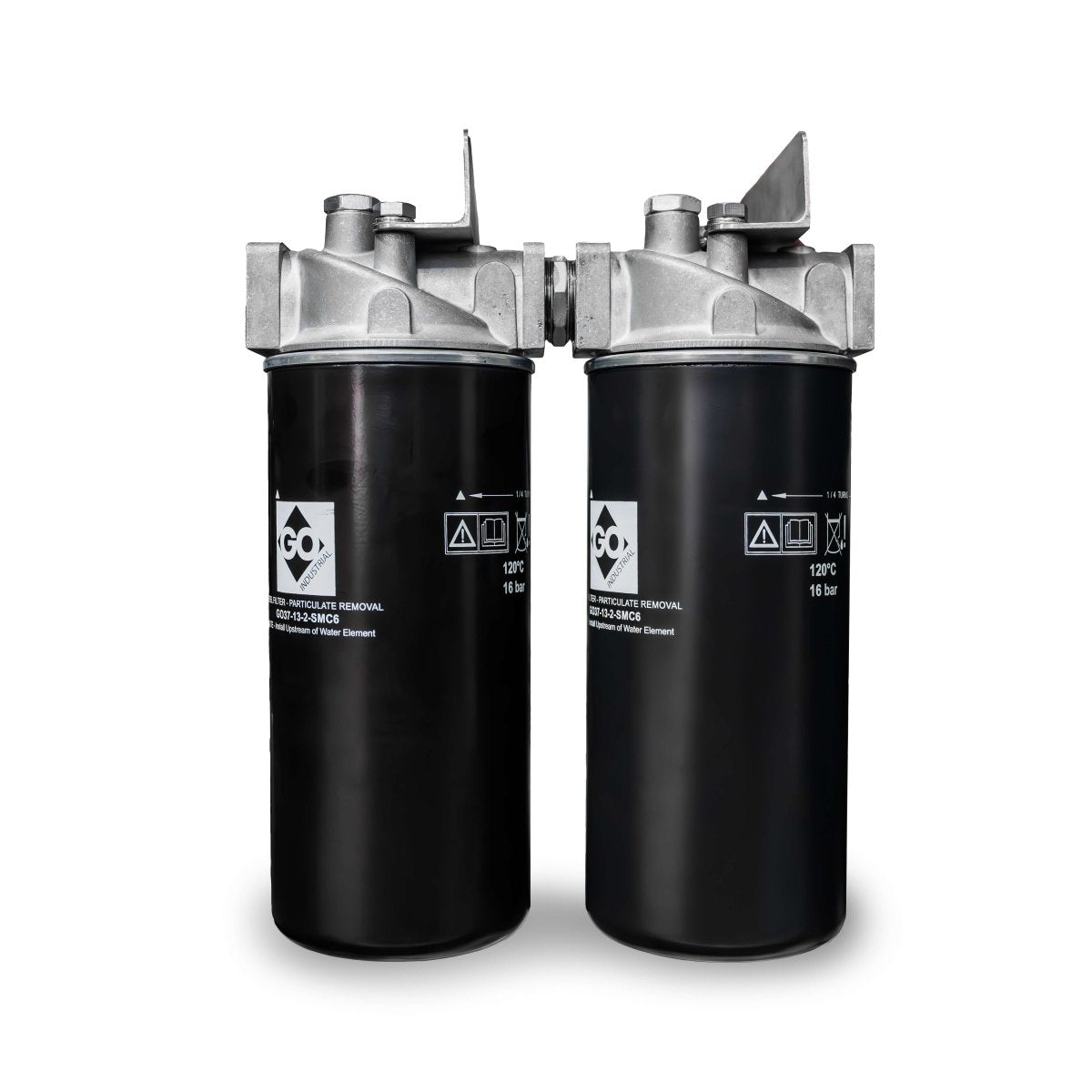

GO Guardian Filtration Kit - Water & Particulate Filtration with Indicators

Features

• Comprehensive Two-Stage Filtration: Dedicated water removal stage followed by a fine particulate filtration stage for optimal fluid purity.

• High-Efficiency Water Removal: Specialised absorbent media effectively removes free and emulsified water, protecting against corrosion and fluid degradation.


• Fine Particulate Capture: High-performance element captures solid containments, reducing wear and extending component life.


• Integrated Dual Indicators (Per Stage): Each filter head equipped with

  • Mechanical (visual pop-up) differential pressure indicator.
  • Electrical output module for remote signalling of filter status (extra).


• Robust Joined Head Assembly: Pre-configured, series-flow design for easy integration into fluid handling systems.


• Durable Construction: Designed for demanding industrial environments.


• FKM Seals Standard: Ensures wide fluid and temperature compatibility, suitable for hydrocarbons, oils, and diesel fuels.


• Enhanced System Protection: Minimises downtime and maintenance costs by maintaining fluid cleanliness.


• Promotes Timely Maintenance: Clear local and remote indication when filter elements require replacement.

GO Guardian Filtration Kit - Water & Particulate Filtration with Indicators

Overview

Integrated Two-Stage Filtration Solution: This pre-configured GO Guardian Filtration Kit provides robust two-stage purification for fluid handling systems. Joined filter heads house high-performance elements, first for specialised water removal (e.g., 10-micron) and then for fine particulate capture (e.g., 6-micron). Suited for diesel, oils, and hydrocarbons, the kit includes mechanical and electrical indicators on each head for proactive maintenance, ensuring optimal fluid cleanliness, component protection, and enhanced system reliability.

How it Works

The GO Guardian Kit employs a two-stage process: fluid initially passes through a water - absorbing element in the first joined head assembly. This de-watered fluid then flows to the second head, where a fine particulate filter removes solid contaminants. Indicators on each stage signal when their respective elements are saturated and require replacement, ensuring clean, dry fluid output.

Data Sheet
GO Data Sheet Guardian Filtration Kit GO-GUARDIAN

Specifications

• Filtration Stages: 2 (Series Flow: Water Removal then Particulate)
• Stage 1 Water Removal: GO37-13-2-SMX10WS
• Element Type: Water Absorbing / Coalescing
• Nominal Rating: Approx. 10µm (particulate), high water retention capacity
• Seal Material: FKM (Fluoroelastomer)
• Stage 2 Particulate: GO37-13-2-SMX6
• Element Type: Particulate Filter
• Absolute Rating: 6µm
• Seal Material: FKM (Fluoroelastomer)
• Filter Head Assembly: GO2214-047
• Number of Heads: 2 (Joined in series)
• Material (Typical): Aluminium
• Max Operating Pressure: Up to 24 bar (350 psi)
• Port Connections (Typical): G 1 1/4" (DN32) BSP Female
• Element Thread: 1"3/4 - 12 UN
• Nominal Flow Rate: Application dependent; Suitable for up to approx. 160-300 LPM (40-80 GPM) depending on fluid viscosity and pressure drop constraints (Consult specific performance curves).
• Operating Temperature: Approx. -20°C to +100°C (FKM seal limited, system dependent).
• Compatible Fluids: Diesel fuels, hydraulic oils, lubrication oils, other hydrocarbons.
