GO Solenoid Valve Coil 13.2mm 12v DC 12 W c/w DIN Plug SC-C1

SKU: SC-C1

$61

GO Solenoid Valve Coil 13.2mm 12v DC 12 W c/w DIN Plug SC-C1

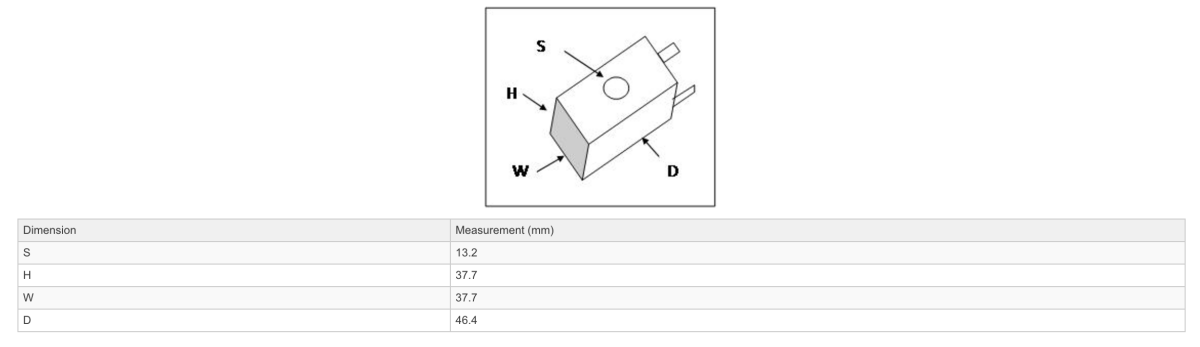

Coil & Din Plug to suit B55-2, S55-2, B56 & B75-2-4~2-5.12 Watts Insulation Class F DIN 43650-A IP65.46.4mm Long, 37.7mm Wide, 37.7mm High, 13.2mm whole centre.

  • Operator Size 13.2mm
  • Watts 12
  • Volt Amps 15
  • Voltage All
  • Insulation Class H
  • Rating IP65

            Solenoid Coil and DIN Plug to suit 13.2mm operator. It can suit any brand solenoid valve as long as it complies to the specs of this coil, our models are listed below.

            Valve Series Description
            B55-2 Brass 2/2 Direct Acting
            S55-2 316 Stainless Steel 2/2 Direct Acting
            B75-2 Brass 2/2 Direct Acting
            B56 Brass 2/2 Normally Open
