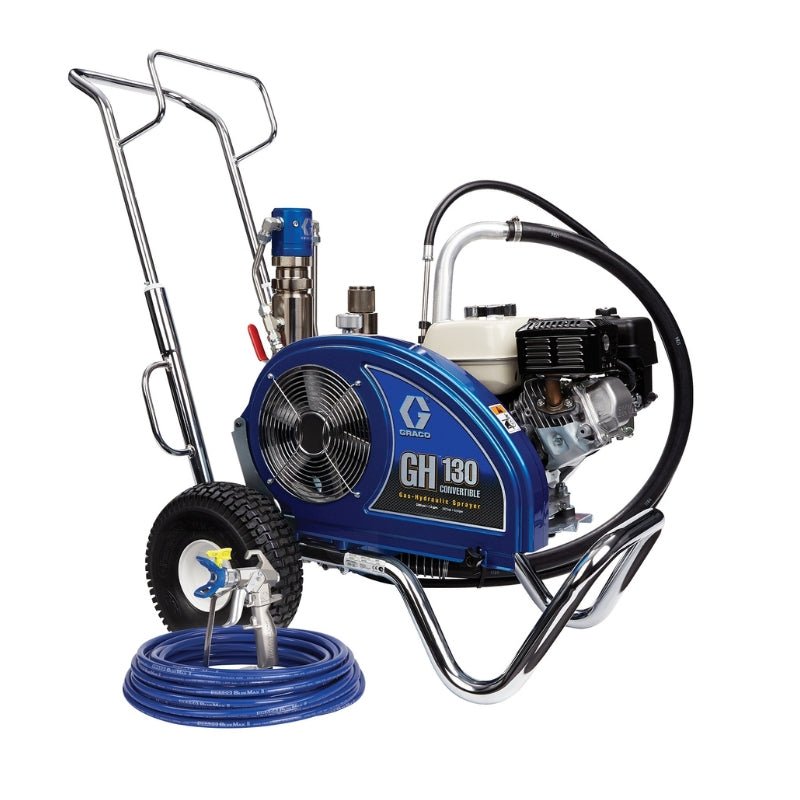

GRACO GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The GH 130 Convertible is a petrol hydraulic airless sprayer built for entry level contractors who want strong power in a compact package. You can change out the pump lower and convert from petrol to electric power without tools, making it a versatile unit on the job.
It runs a 4 HP Honda engine with the Endurance Chromex piston pump, a high-efficiency hydraulic motor and a high-capacity cooling system for reliable, everyday performance. The electric motor kit is sold separately.
Features
Endurance Chromex Piston Pump: lasts 2 times longer than the next leading brand, with a QuikChange pump design for easy on-the-job swaps and a QuikAccess intake foot valve for faster cleaning.
High-Efficiency Hydraulic Motor: delivers responsive changeover with O-ring sealed fittings and form-fitted hydraulic lines to prevent leaks, and fewer moving parts for less maintenance.
High-Capacity Cooling System: a tapered hydraulic reservoir runs the pump cooler, allows easier fluid changes and deflects heat away from the sprayer.
Honda Engine: reliable, powerful and easy to start, with Oil Alert that shuts down the engine if the oil level drops too low.
Easy Out Pump Filter: an inside-out filter design that will not collapse, for easy maintenance and less clogging.
Heavy-Duty Prime Valve: a maintenance-free design that withstands high-pressure dumping.
Rugged, Durable Cart Design: thick chrome over welded steel with full pneumatic wheels, and a retractable handle that doubles as hose storage.
Electric Motor Capability: swap the petrol engine for an electric motor in seconds without tools for indoor and outdoor use, with the electric motor kit sold separately.
Ready to Work: includes a Contractor airless spray gun, RAC X SwitchTips and guard, and 50 feet of BlueMax II airless hose.
Included accessories
Specifications
| COMPATIBLE MATERIAL | Acrylics, Paint, Primer |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 24B748 |
| CONVERTIBLE | Yes |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 4 |
| FEATURES | Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | MNPT |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 3.75 |
| FLUID OUTLET THREAD TYPE | FNPT |
| FRAME CONFIGURATION | Cart |
| INCLUDES | Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| MAXIMUM FLOW RATE (GPM) | 1.30 |
| MAXIMUM FLOW RATE (L/MIN) | 4.9 |
| MAXIMUM HOSE LENGTH (FT) | 300 |
| MAXIMUM HOSE LENGTH (M) | 92 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 88 |
| MAXIMUM TIP SIZE (IN) | 0.037 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.037 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 4 |
| POWER SOURCE | Gas Hydraulic |
| POWER RATING (KW) | 2.98 |
| POWER RATING (W) | 2983 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| OVERALL WIDTH (MM) | 610 |
| MODEL | GH |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 100.3 |
| OVERALL HEIGHT (IN) | 39.5 |
| WEIGHT (KG) | 70 |
| WEIGHT (LB) | 155 |
| OVERALL HEIGHT (MM) | 1003 |
| OVERALL LENGTH (CM) | 104.1 |
| OVERALL WIDTH (IN) | 24 |
| OVERALL LENGTH (IN) | 41 |
| SERIES | 130 |
| OVERALL LENGTH (MM) | 1041 |
| OVERALL WIDTH (CM) | 61 |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminium, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | Easy Out |
| PUMP SLEEVE MATERIAL | Stainless Steel |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | Chromex |
| NUMBER OF GUNS | 2 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.023 |
| RECOMMENDED ANNUAL USAGE | Up to 500 gallons per week |
| POWER RATING (CC) | 120 |
| COMPATIBLE ELECTRIC MOTOR KITS | 288473, 288474 (CSA) |
| MAXIMUM TIP SIZE 2 GUNS - ELECTRIC MOTOR (IN) | 0.017 |
| MAXIMUM TIP SIZE 1 GUN - ELECTRIC MOTOR (IN) | 0.031 |
| PRODUCT SERIES | Standard |
