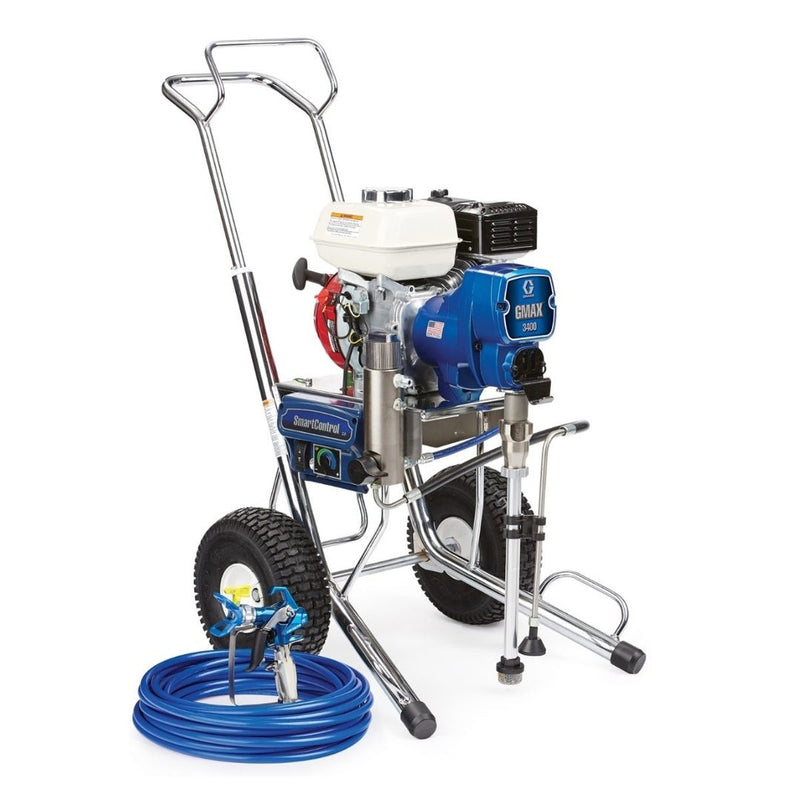

GRACO Airless Paint Spray Package GMAX 3400 Petrol Driven 16W863

SKU: 16W863

$6,304 $6,732

GRACO Airless Paint Spray Package GMAX 3400 Petrol Driven 16W863

  • Petrol Driven Airless Sprayer Range
  • For the entry-level contractor who demands maximum power in a portable package
  • With a 120 cc Honda engine, the GMAX 3400 is the ideal gas-powered airless sprayer for the entry-level contractor who is looking for maximum power in a lightweight, portable package.


                • Advantage Drive System Runs quiet and has a lifetime guarantee.
                • SmartControl 3.0 Pressure Control – Delivers consistent spray fan without pressure fluctuations at all spraying pressures.
                • Endurance Pump – Amazingly durable design lasts twice as long as the next leading brand.
                • Honda Engine – Delivers maximum performance and contractor preferred reliability.
                • Rugged Cart Design – Chrome over steel makes this durable cart last for years.
                • Easy Out Pump Filter – Less mess when changing or cleaning the filter.
                • Heavy-Duty Prime Valve – Maintenance-free design withstands high pressure dumping.


                • Contractor Gun
                • RAC X 517 SwitchTip and Guard
                • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose


                          DATA SHEET
                          MANUAL - REPAIR
                          MANUAL - PARTS
                          MANUAL - PUMP
                          MANUAL - SPRAY GUN



                          Honda GX 120 Engine
                          ANSI Power Rating @ 3600 rpm
                          4.0 Horsepower
                          Maximum working pressure
                          3300 psi
                          Noise Level
                          Sound Power
                          100 dBa per ISO 3744
                          Sound Pressure
                          86 dBa measured at 3.1 ft
                          Maximum Delivery Rating
                          0.75 gpm
                          Maximum Tip Size
                          1 gun with 0. 027 in tip
                          Inlet paint strainer
                          12 mesh stainless steel screen, reusable
                          Outlet paint filter
                          60 mesh stainless steel screen, reusable
                          Pump inlet size
                          1¼-12 unf-2b
                          Fluid outlet size
                          ¼ npsm from fluid filter
                          Wetted parts
                          zinc-plated carbon steel, PTFE, Nylon, polyurethane, UHMW polyethylene, fluoroelastomer,acetal, leather, aluminum, tungsten carbide, nickel- and zinc-plated carbon steel, stainless steel, chrome plating
                          Dimensions for Sprayer without hose and gun
                          89 lb
                          31.5 in
                          22.5 in
                          31 in
