The Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 2-finger trigger and a RAC 5 517 SwitchTip and Guard.

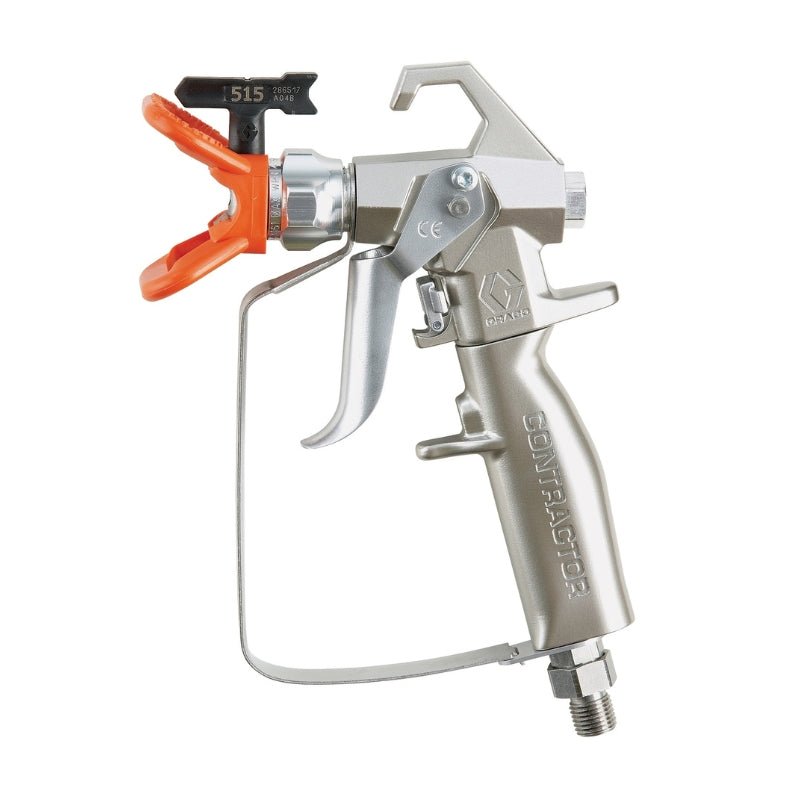

GRACO Contractor Airless Spray Gun with 2 Finger Trigger and RAC 5 517 SwitchTip
SKU 288421
$523.00
$698.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
- Exclusive FlexSeal Needle
- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Reduced Gun Spitting
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Ergonomic Design
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Trigger Lock
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Modular Needle Design
- Simply remove the trigger cross pin and unthread front housing to change out needle
- EasyGlide Swivel
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Easy Out Gun Filter
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
Specifications
| COMPONENT A INLET SIZE (IN) | 1/4 |
|---|---|
| COMPONENT A INLET THREAD TYPE | NPSM |
| FLUID ORIFICE SIZE (CM) | 0.318 |
| FLUID ORIFICE SIZE (IN) | 0.125 |
| FLUID ORIFICE SIZE (MM) | 3.17 |
| FOR USE WITH | Airless Sprayers |
| GUN ACTIVATION | Manual |
| GUN TYPE | Airless Gun |
| GUN WEIGHT (OZ) | 22 |
| INCLUDES | RAC 5 517, RAC 5 517 SwitchTip, RAC 5 HandTite Guard |
| MAXIMUM FLUID PRESSURE (BAR) | 248 |
| MAXIMUM FLUID PRESSURE (KPA) | 24800 |
| MAXIMUM FLUID PRESSURE (PSI) | 3600 |
| MODEL | Contractor |
| SERIES | Airless Spray Gun |
| TRIGGER LOCK | Locking |
| TRIGGER TYPE | Two-Finger |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| SPRAY TYPE | Airless |
| MAXIMUM FLUID PRESSURE (MPA) | 24.8 |
Brochure
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
