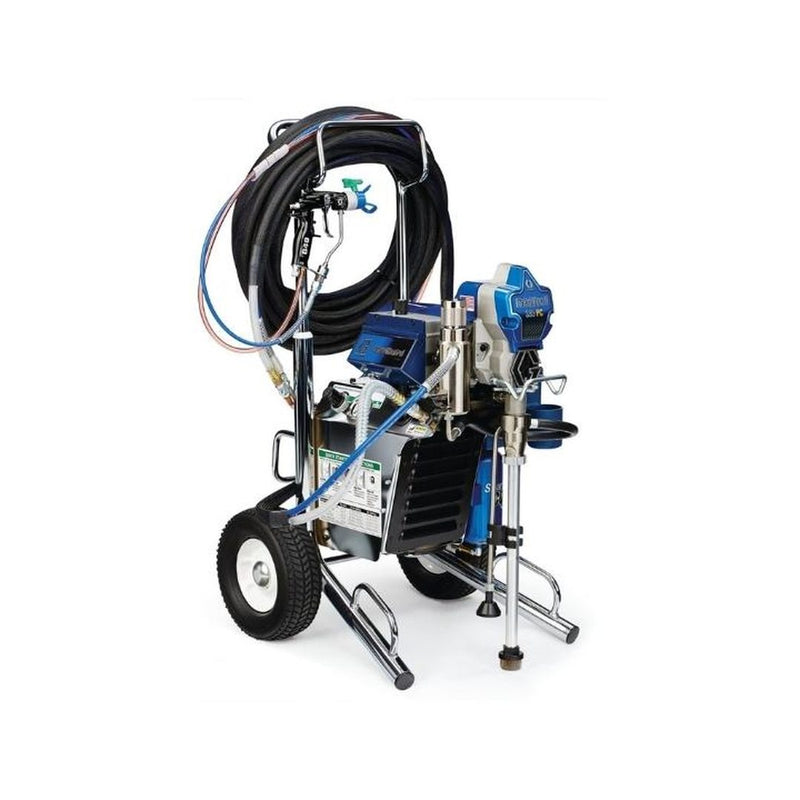

The FinishPro II 395 PC is an electric air-assisted airless sprayer built for fine finishing. It delivers a high quality finish at a high production rate and can handle the most challenging materials.
The unit works as two sprayers in one, letting you select air-assisted or airless mode depending on the application using a single colour-coded selector switch. One plug runs the entire unit for simple jobsite operation.
Features
SmartControl 1.0 with Digital Display: delivers a consistent spray fan without pressure fluctuations at all spraying pressures, with a digital display that accurately shows spraying pressure.
SmartComp: the compressor is activated by the gun trigger, so it only runs while you spray and shuts off five seconds after you release the trigger, reducing jobsite noise and extending compressor life.
Chromex Endurance Pump: long-life V-Max Blue packings, a Chromex rod and a hardened stainless steel cylinder, with a QuikAccess intake valve for fast cleaning or debris clearing.
ProConnect: an on-the-job pump replacement system that swaps the pump in three simple steps, with a pinless design so there are no parts to lose.
High-Output On-Board Air Compressor: delivers 3.2 ft3/min at 35 psi (0.1 m3/min at 2.4 bar), with a Pressure Unloader for quieter operation and a cooling coil that reduces air temperature.
Precision-Cut RAC X FF LP SwitchTip: sprays at lower pressures with less overspray and a pre-orifice design for finer atomisation and soft edges, and includes a solvent seal for hot solvents.
G40 Spray Gun: an industrial quality air-assisted spray gun with an integrated air valve, RAC X guard and flat tip conversion kit included.
Super-Flex Hose Set: lightweight and flexible for tight spaces, connecting directly to the gun, with a Flex Wrap hose skin that protects against paint build up.
Two Sprayers in One: select air-assisted or airless mode with a single colour-coded selector switch.
Self-Contained Portable: one plug runs the entire unit for simple jobsite operation.
Included accessories
Specifications
| Model | FinishPro II 395 PC (Models: 17C417, 17C418, 17C421, 17C320, 17C321) |
|---|---|
| Power requirements | 230V AC, 50/60 Hz, 10A, 1Ø |
| Generator Minimum | 4000 W |
| Maximum Tip Size (US/UK) | 0.021 |
| Maximum Tip Size (Europe/Asia/Australia) | 0.023 |
| Maximum Material Output (US/UK) | 1.8 lpm |
| Maximum Material Output (Europe/Asia/Australia) | 2.0 lpm |
| Maximum Material Pressure Airless (US) | 228 bar, 22.8 MPa |
| Maximum Material Pressure Airless (UK) | 193 bar, 19.3 MPa |
| Maximum Material Pressure Airless (Europe/Asia/Australia) | 228 bar, 22.8 MPa |
| Maximum Material Pressure AA (US/UK) | 193 bar, 19.3 MPa |
| Maximum Material Pressure AA (Europe/Asia/Australia) | 228 bar, 22.8 MPa |
| Atomizing Air Output (US/UK) | 3.2 cfm |
| Atomizing Air Output (Europe/Asia/Australia) | 2.9 cfm |
| Air pressure | 2.4 bar |
| Length (mm) | 825 |
| Width (mm) | 533 |
| Height (mm) | 1028 |
| Weight (bare) | 49.9 kg |
| Sound pressure | 79 dBa |
| Sound power | 96 dBa |
| Pump motor | TEFC 7/8 HP DC |
| Compressor motor | 1.0 HP AC Induction |
| Material hose | 1/4 in. x 15.2 m (blue) |
| Air hose | 3/8 in. x 15.2 m (clear) |
| Gun | G40 with RAC X tip |
| Wetted materials | zinc- and nickel-plated carbon steel, nylon, stainless steel, PTFE, Acetal, leather, UHMWPE, aluminium, tungsten carbide, polyethylene, fluoroelastomer, urethane |
