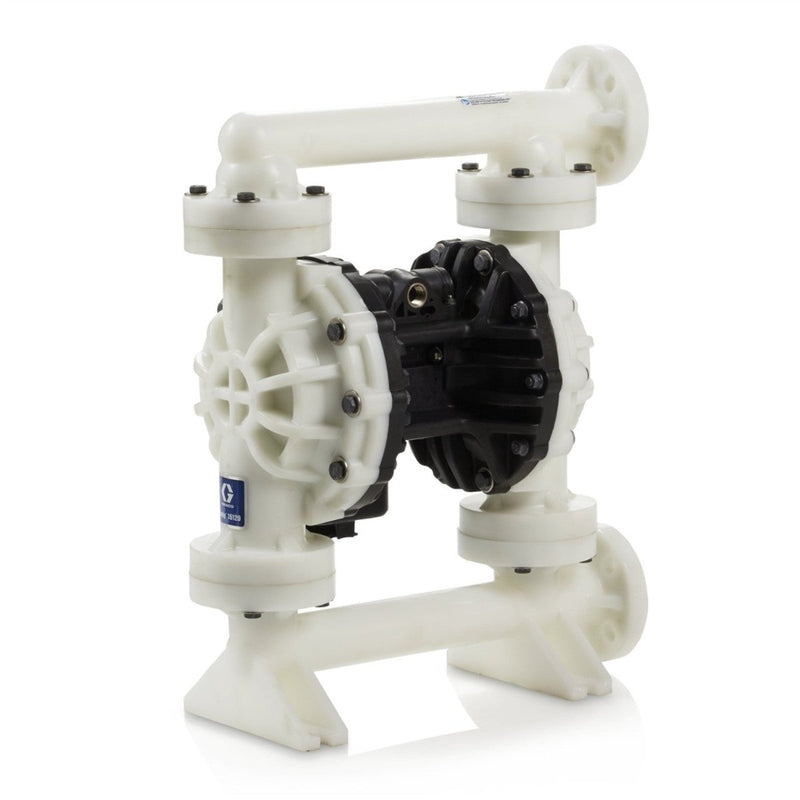

GRACO Husky 15120 Polypropylene Air-Operated Diaphragm Pumps

SKU: 654504

GRACO Husky 15120 Polypropylene Air-Operated Diaphragm Pumps

$7,491.00 AUD
$7,491.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Models

Other payment options

View full details
GRACO Husky 15120 Polypropylene Air - Operated Diaphragm Pumps - GO Industrial - 654504

GRACO Husky 15120 Polypropylene Air-Operated Diaphragm Pumps

From $5,973.00 AUD
From $5,973.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • 654504: Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
  • 654511: Husky 15120 PP Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
  • 654500: Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm
  • 654507: Husky 15120 PP Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

Features

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • 1-1/2 in (38.1 mm) ANSI center and end-porting options available
  • High flow - 120 gpm (454 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF

    • Graco Husky 15120 Polypropylene Air-Operated Diaphragm Pumps

    Overview

    The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

    The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 3A2888EN-D - Graco Husky 15120 Air-Operated Diaphragm Pump Manual
      • 3A2889EN-G Graco Husky 15120 Air-Operated Diaphragm Pump Repair and Parts
      • GO Data Sheet Graco Husky 1050
      • GO Data Sheet Graco Husky 15120 Polypropylene 300570EN-K

      Specifications

      Technical Specifications SKU 654504 SKU 654511
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1 1
      AIR EXHAUST PORT THREAD GENDER Female Female
      AIR EXHAUST PORT THREAD TYPE NPT NPT
      AIR INLET SIZE (IN) 1/2 1/2
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT NPT
      APPLICATION Industrial Industrial
      BALL MATERIAL PTFE PTFE
      CENTER SECTION MATERIAL Polypropylene Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 3.81 3.81
      FLUID INLET SIZE (IN) 1-1/2 1-1/2
      FLUID INLET SIZE (MM) 38.1 38.1
      FLUID INLET THREAD GENDER Female Female
      FLUID OUTLET SIZE (CM) 3.81 3.81
      FLUID OUTLET SIZE (IN) 1-1/2 1-1/2
      FLUID OUTLET SIZE (MM) 38.1 38.1
      FLUID OUTLET THREAD GENDER Female Female
      FLUID SECTION MATERIAL Polypropylene Polypropylene
      MANIFOLD CONFIGURATION Center Port End Port
      MANIFOLD O-RING MATERIAL PTFE PTFE
      MATERIAL Polypropylene Polypropylene
      MAXIMUM AIR CONSUMPTION (SCFM) 85 85
      MAXIMUM AIR PRESSURE (BAR) 8.6 8.6
      MAXIMUM AIR PRESSURE (KPA) 860 860
      MAXIMUM AIR PRESSURE (PSI) 125 125
      MAXIMUM CYCLE RATE (CPM) 183 183
      MAXIMUM FLOW RATE (GPM) 120 120
      MAXIMUM FLOW RATE (L/MIN) 454 454
      MAXIMUM FLUID PRESSURE (BAR) 8.6 8.6
      MAXIMUM FLUID PRESSURE (KPA) 860 860
      MAXIMUM FLUID PRESSURE (PSI) 125 125
      MAXIMUM OPERATING TEMPERATURE (°C) 66 66
      MAXIMUM OPERATING TEMPERATURE (°F) 150 150
      MAXIMUM SOLID SIZE (CM) 0.635 0.635
      MAXIMUM SOLID SIZE (IN) 0.25 0.25
      MAXIMUM SOLID SIZE (MM) 6.35 6.35
      MINIMUM OPERATING TEMPERATURE (°C) 0 0
      MINIMUM OPERATING TEMPERATURE (°F) 32 32
      MINIMUM STORAGE TEMPERATURE (°C) 0 0
      MINIMUM STORAGE TEMPERATURE (°F) 32 32
      MODEL Husky Husky
      OVERALL HEIGHT (IN) - 26.8
      POWER SOURCE Air Air
      SEAT MATERIAL Polypropylene Polypropylene
      SERIES 15120 15120
      WEIGHT (LB) 57 57
      WETTED MATERIAL - Polypropylene, PTFE/EPDM
      MAXIMUM FLUID PRESSURE (MPA) 0.86 0.86
      MAXIMUM AIR PRESSURE (MPA) 0.86 0.86
      CONNECTION TYPE Center Flange ANSI/DIN End Flange ANSI/DIN
      DIAPHRAGM_COMPATIBLE_MATERIAL PTFE PTFE
      Technical Specifications SKU 654500 SKU 654507
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1 1
      AIR EXHAUST PORT THREAD GENDER Female Female
      AIR EXHAUST PORT THREAD TYPE NPT NPT
      AIR INLET SIZE (IN) 1/2 1/2
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT NPT
      APPLICATION Industrial Industrial
      BALL MATERIAL Santoprene Santoprene
      CENTER SECTION MATERIAL Polypropylene Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL Santoprene Santoprene
      FLUID INLET SIZE (CM) 3.81 3.81
      FLUID INLET SIZE (IN) 1-1/2 1-1/2
      FLUID INLET SIZE (MM) 38.1 38.1
      FLUID INLET THREAD GENDER Female Female
      FLUID OUTLET SIZE (CM) 3.81 3.81
      FLUID OUTLET SIZE (IN) 1-1/2 1-1/2
      FLUID OUTLET SIZE (MM) 38.1 38.1
      FLUID OUTLET THREAD GENDER Female Female
      FLUID SECTION MATERIAL Polypropylene Polypropylene
      MANIFOLD CONFIGURATION Center Port End Port
      MANIFOLD O-RING MATERIAL PTFE PTFE
      MATERIAL Polypropylene Polypropylene
      MAXIMUM AIR CONSUMPTION (SCFM) 85 85
      MAXIMUM AIR PRESSURE (BAR) 8.6 8.6
      MAXIMUM AIR PRESSURE (KPA) 860 860
      MAXIMUM AIR PRESSURE (PSI) 125 125
      MAXIMUM CYCLE RATE (CPM) 183 183
      MAXIMUM FLOW RATE (GPM) 120 120
      MAXIMUM FLOW RATE (L/MIN) 454 454
      MAXIMUM FLUID PRESSURE (BAR) 8.6 8.6
      MAXIMUM FLUID PRESSURE (KPA) 860 860
      MAXIMUM FLUID PRESSURE (PSI) 125 125
      MAXIMUM OPERATING TEMPERATURE (°C) 66 66
      MAXIMUM OPERATING TEMPERATURE (°F) 150 150
      MAXIMUM SOLID SIZE (CM) 0.635 0.635
      MAXIMUM SOLID SIZE (IN) 0.25 0.25
      MAXIMUM SOLID SIZE (MM) 6.35 6.35
      MINIMUM OPERATING TEMPERATURE (°C) 0 0
      MINIMUM OPERATING TEMPERATURE (°F) 32 32
      MINIMUM STORAGE TEMPERATURE (°C) 0 0
      MINIMUM STORAGE TEMPERATURE (°F) 32 32
      MODEL Husky Husky
      POWER SOURCE Air Air
      SEAT MATERIAL Polypropylene Polypropylene
      SERIES 15120 15120
      WEIGHT (LB) 57 57
      MAXIMUM FLUID PRESSURE (MPA) 0.86 0.86
      MAXIMUM AIR PRESSURE (MPA) 0.86 0.86
      CONNECTION TYPE Center Flange ANSI/DIN End Flange ANSI/DIN
      DIAPHRAGM_COMPATIBLE_MATERIAL Santoprene Santoprene


        Features

      • Overall improved efficiency (up to 40% more efficient)
      • Highest fluid flow rate in its class
      • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
      • Expanded material offering to handle endless applications
      • 1-1/2 in (38.1 mm) ANSI center and end-porting options available
      • High flow - 120 gpm (454 lpm) in a compact, portable size
      • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
      • Lube-free operation
      • Available in polypropylene and PVDF
