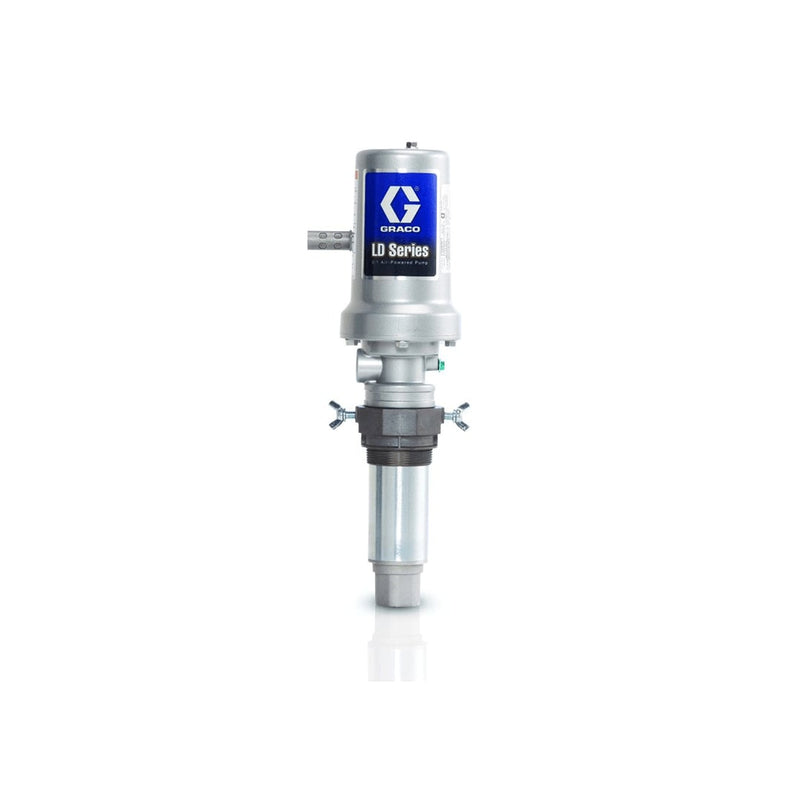

GRACO LD Pump 3:1 Oil Pumps
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
The Graco LD Series pump range offers strong performance at a competitive price. These affordable, full-featured pumps are designed for low volume applications to provide long life and serviceability. Graco LD pumps have a powerful three inch air motor to deliver the fluids you need, while the built-in thermal relief protects your equipment from thermal expansion.
Features
Pilot Valve: A patent-pending self-cleaning design increases reliability in dirty air environments and minimises pressure drop with rapid changeovers for reduced stalling and smoother flow.
5 Year Warranty: Backed by an industry-leading Graco factory 5 year warranty.
Three Inch Air Motor: A powerful three inch air motor provides more power to create better flow.
Bung Adapter: An adjustable bung adapter is included, with built-in slide adjustment and easy-set hand screws to fit more applications.
Durable Design: A patent-pending cup and plate design removes the need for O-rings that wear out faster, for a longer-lasting solution.
NXT Air Valve: Reduces icing in continuous-use applications and uses less air for better efficiency, and can be repaired or replaced without tearing down the internal pump components.
Modular Air Valve: Air inlet and exhaust locations configure with just four bolts for simple installation.
Thermal Relief and Inlet Strainer: Built-in thermal relief (oil only) protects equipment from thermal expansion, and a built-in inlet strainer (oil only) protects the pump from contaminants.
Included accessories
Specifications
| Simultaneous Dispense Points | 1 to 2 |
|---|---|
| Approx Free Flow Rate @ 100 psi | 30 lpm |
| Air Operation Range | 20-150 psi |
| Type | Pneumatic Piston Pump |
| Application | Oil |
| Pump Ratio | 3:1 |
| Air Inlet Size | 1/4 in / 6.35 mm |
| Fluid Inlet Size | 1 in / 25.4 mm |
| Fluid Outlet Size | 1/2 in / 12.7 mm |
| Maximum Air Inlet Pressure | 150 psi / 1034 kPa / 10.34 bar |
| Maximum Working Pressure | 750 psi / 5170 kPa / 51.7 bar / 5.2 MPa |
| Power Type | Pneumatic |
| Wetted Material | Steel, brass, nitrile rubber, polyurethane, UHMWPE, acetal |
| Weight | 7 lb / 0.3178 kg |
